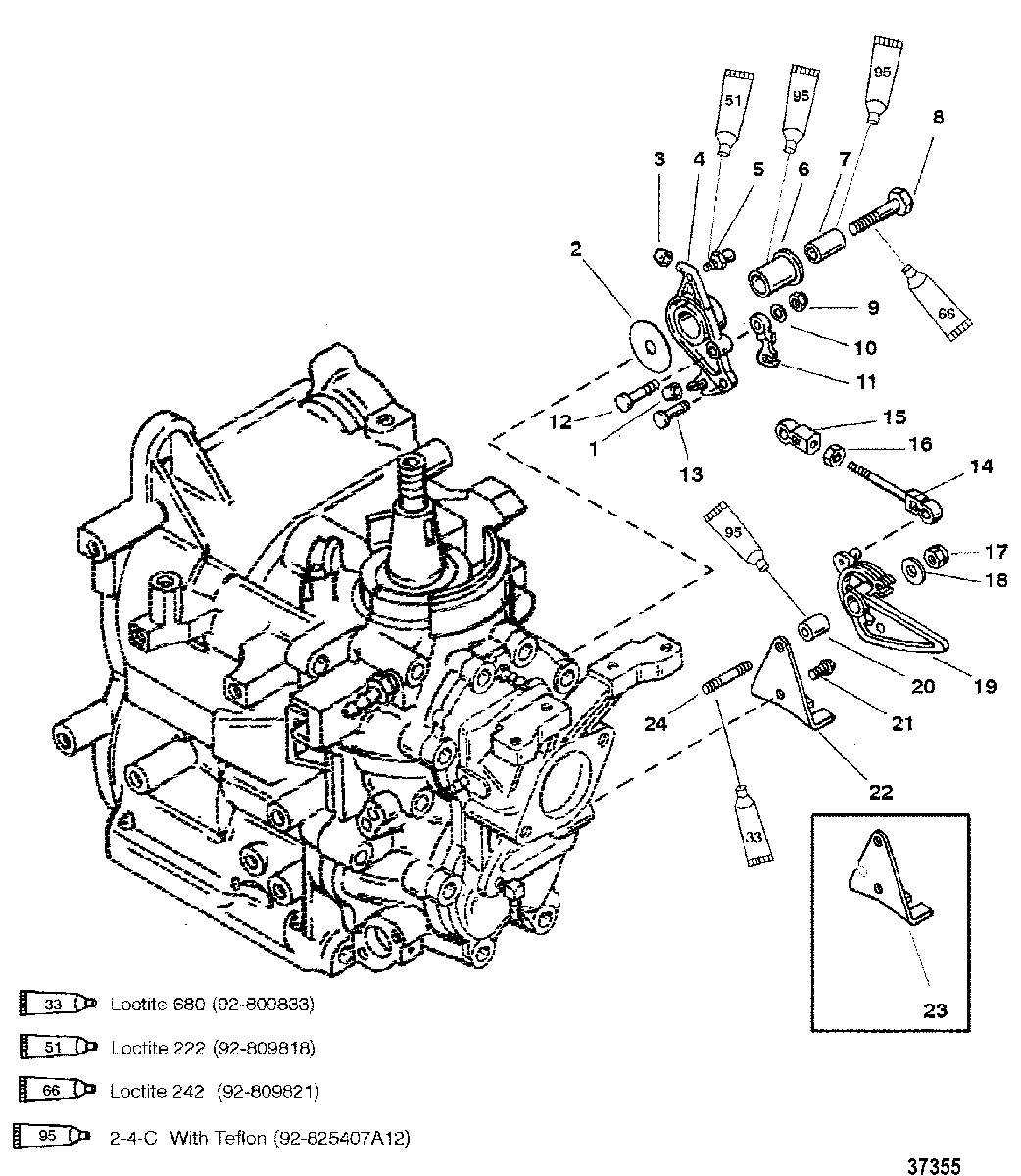

THROTTLE LINKAGE(S/N -USA-0G5899999/BEL-9973099 & BELOW) для Mariner - 40 (2 CYL.) 9854537 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    822458 BUMPER
    BUMPER
  • 2
    12-42980 WASHER
    WASHER
  • 3
    822458 BUMPER
    BUMPER
  • 4
    8M0041742 LEVER, Throttle Control
    LEVER, Throttle Control
  • 5
    8235695 BALL, Threaded
    BALL, Threaded
  • 6
    23-812930A1 BUSHING
    BUSHING
  • 7
    NSS NOT SOLD SEPARATE, INSERT
    NOT SOLD SEPARATE, INSERT
  • 8
    10-4007180 SCREW, (M10 x 45)
    SCREW, (M10 x 45)
  • 9
    11-401386 NUT, (M6)
    NUT, (M6)
  • 10
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 11
    822459 RETAINER
    RETAINER
  • 12
    42927 INSERT
    INSERT
  • 13
    17-8224561 PIN
    PIN
  • 14
    881227A4 LINK, Throttle Control
    LINK, Throttle Control
  • 15
    817428 SOCKET
    SOCKET
  • 16
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 17
    11-401386 NUT, (M6)
    NUT, (M6)
  • 18
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 19
    821388 CAM, Throttle Control
    CAM, Throttle Control
  • 20
    23-822389 BUSHING
    BUSHING
  • 21
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 22
    8214943 BRACKET, Throttle Cable
    (2 HOLES)
    BRACKET, Throttle Cable
    (2 HOLES)
  • 23
    8214943 BRACKET
    (3 HOLES)
    BRACKET
    (3 HOLES)
  • 24
    16-8161949 STUD (M6 X 1 X 44)
    STUD (M6 X 1 X 44)
