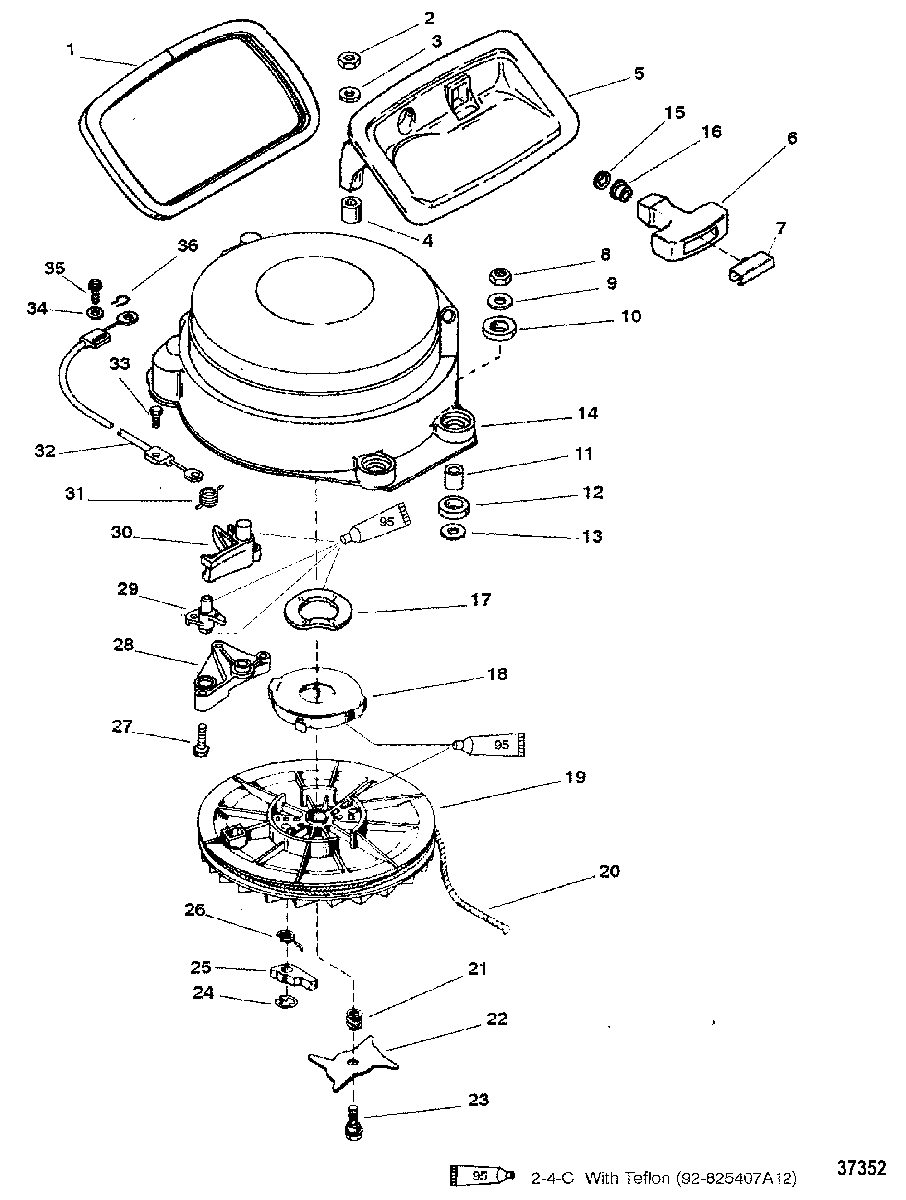

MANUAL START COMPONENTS для Mariner - 40 (2 CYL.) 9854537 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    8M0043416 SEAL
    SEAL
  • 2
    11-401196 NUT, (M6)
    USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD"
    NUT, (M6)
    USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD"
  • 3
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD"
    WASHER, (.255 x .620 x .030) Stainless Steel
    USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD"
  • 4
    23-822392 SPACER
    SPACER
  • 5
    821788T02 REST
    REST
  • 6
    85174A1 HANDLE ASSEMBLY
    HANDLE ASSEMBLY
  • 7
    NSS NOT SOLD SEPARATE, RETAINER
    NOT SOLD SEPARATE, RETAINER
  • 8
    11-401366 NUT, (M6)
    NUT, (M6)
  • 9
    826414T WASHER
    WASHER
  • 10
    25-8157951 GROMMET
    GROMMET
  • 11
    23-816086 BUSHING
    BUSHING
  • 12
    25-8157951 GROMMET
    GROMMET
  • 13
    826414T WASHER
    WASHER
  • -
    816728T14 STARTER ASSEMBLY, Recoil
    SN# USA 0G239163, BEL 9864479 & Below
    STARTER ASSEMBLY, Recoil
    SN# USA 0G239163, BEL 9864479 & Below
  • -
    816728T14 STARTER ASSEMBLY, Recoil
    SN# USA 0G239164, BEL 9864480 & Up
    STARTER ASSEMBLY, Recoil
    SN# USA 0G239164, BEL 9864480 & Up
  • 14
    816728T05 HOUSING
    HOUSING
  • 15
    53-818853 RING, Retaining
    RING, Retaining
  • 16
    42690 BUSHING
    BUSHING
  • 17
    13-826229 LOCKWASHER
    LOCKWASHER
  • 18
    24-86857T01 SPRING
    SPRING
  • 19
    50-825269T01 SHEAVE, Starter
    SHEAVE, Starter
  • 20
    50-12066Q10 ROPE
    ROPE
  • 21
    24-868523 SPRING
    SPRING
  • 22
    86853T01 CAM
    CAM
  • 23
    10-826253 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 24
    53-86849T01 RING, Retaining
    RING, Retaining
  • 25
    868501 CAM
    CAM
  • 26
    24-86851T02 SPRING
    SPRING
  • 27
    10-8182491 SCREW, (#10-16 x 1.00)
    SCREW, (#10-16 x 1.00)
  • 28
    816711 RETAINER
    RETAINER
  • 29
    816712T01 CAM
    CAM
  • 30
    8166902 LEVER
    SN# USA 0G239163, BEL 9864479 & Below
    LEVER
    SN# USA 0G239163, BEL 9864479 & Below
  • 30
    8166903 LEVER
    SN# USA 0G239164, BEL 9864480 & Up
    LEVER
    SN# USA 0G239164, BEL 9864480 & Up
  • 31
    24-826791 SPRING
    SPRING
  • 32
    8567542 CABLE, Interlock
    CABLE, Interlock
  • 33
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 34
    12-73288 WASHER, (.220 x .500 x .030) Stainless Steel
    WASHER, (.220 x .500 x .030) Stainless Steel
  • 35
    10-8214281 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 36
    18-26811 COTTER PIN
    COTTER PIN
