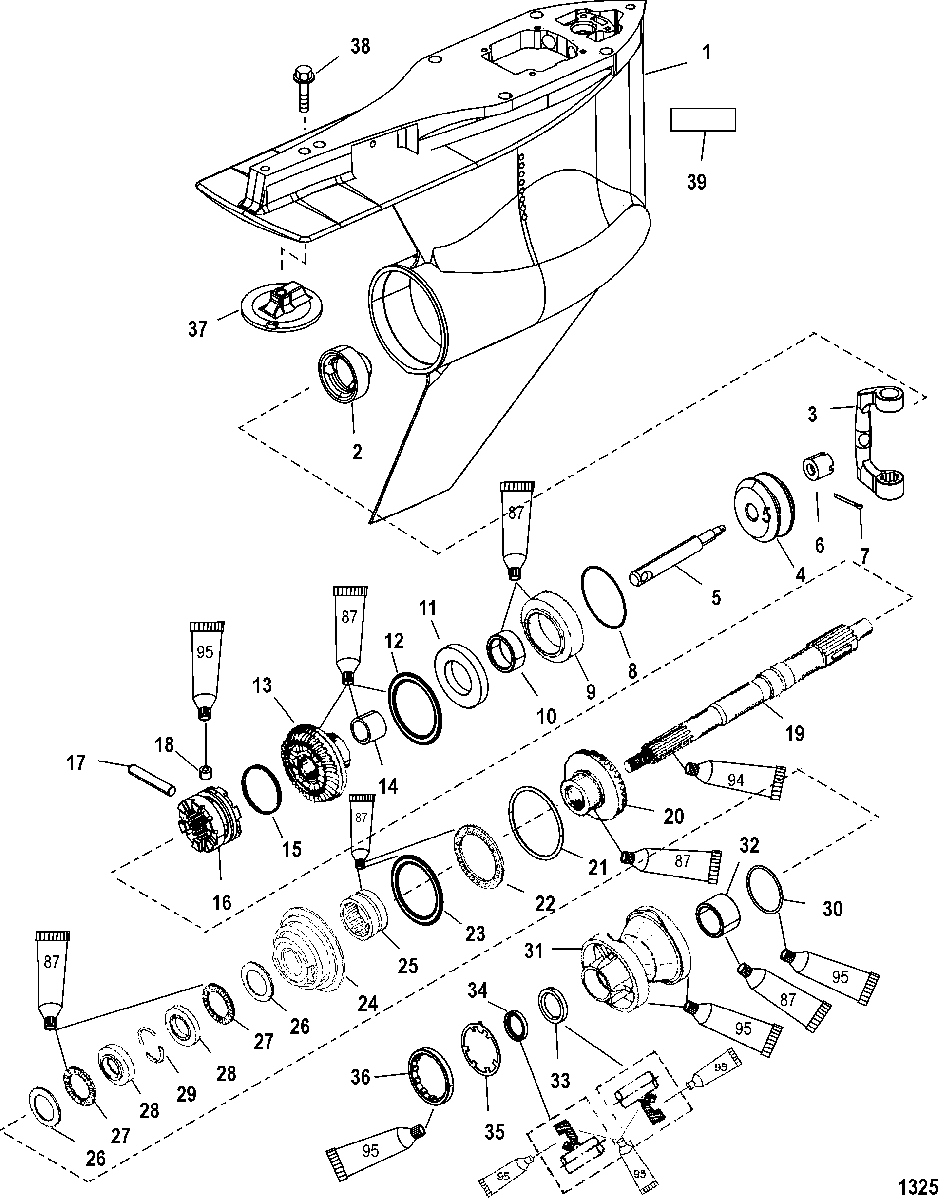

GEAR HOUSING(PROP SHAFT)(COUNTER ROTATION) для Mariner - 3.0L EFI MARATHON 0T409000 THRU 0T800999

  • №
    Артикул
    Название
  • -
    1623-859399T16 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (X-LONG)
    GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (X-LONG)
  • -
    1623-859399T17 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (XX-LONG)
    GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (XX-LONG)
  • 1
    1623-859399T18 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 2
    22-859403 PLUG
    PLUG
  • 3
    823903 SHIFT CRANK
    SHIFT CRANK
  • 4
    19755T7 SPOOL ASSEMBLY
    SPOOL ASSEMBLY
  • 5
    NSS NOT SOLD SEPARATE, Spool
    NOT SOLD SEPARATE, Spool
  • 6
    NSS NOT SOLD SEPARATE, Sleeve
    NOT SOLD SEPARATE, Sleeve
  • 7
    18-469501 COTTER PIN
    COTTER PIN
  • 8
    15-8M0063266 SHIM SET
    SHIM SET
  • 9
    828830A2 ADAPTOR ASSEMBLY, Bearing
    ADAPTOR ASSEMBLY, Bearing
  • 10
    31-814653T BEARING ASSEMBLY, Needle Rollers
    BEARING ASSEMBLY, Needle Rollers
  • 11
    12-815481 THRUST WASHER
    THRUST WASHER
  • 12
    31-815480 BEARING, Thrust
    BEARING, Thrust
  • 13
    43-828696T2 GEAR, Reverse (12/21)
    (1.75:1)
    GEAR, Reverse (12/21)
    (1.75:1)
  • 14
    31-15844 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 15
    24-30893 SPRING
    SPRING
  • 16
    52-859340T CLUTCH
    CLUTCH
  • 17
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 18
    17-828356 PIN, Detent
    PIN, Detent
  • 19
    44-8M0140448 PROPELLER SHAFT
    PROPELLER SHAFT
  • 20
    43-828695A1 GEAR SET, Forward/Pinion (12/21)
    (1.75:1)
    GEAR SET, Forward/Pinion (12/21)
    (1.75:1)
  • 21
    23-1761514 SPACER SHIM , (.206)
    SPACER SHIM , (.206)
  • 21
    23-1761515 SPACER SHIM , (.208)
    SPACER SHIM , (.208)
  • 21
    23-1761516 SPACER SHIM, (.210)
    SPACER SHIM, (.210)
  • 21
    23-1761517 SPACER SHIM, (.212)
    SPACER SHIM, (.212)
  • 21
    23-1761518 SPACER SHIM, (.214)
    SPACER SHIM, (.214)
  • 21
    23-1761519 SPACER SHIM, (.216)
    SPACER SHIM, (.216)
  • 21
    23-1761520 SPACER SHIM, (.218)
    SPACER SHIM, (.218)
  • 21
    23-1761521 SPACER SHIM, (.220)
    SPACER SHIM, (.220)
  • 21
    23-1761522 SPACER SHIM, (.222)
    SPACER SHIM, (.222)
  • 21
    23-1761523 SPACER SHIM, (.224)
    SPACER SHIM, (.224)
  • 21
    23-1761524 SPACER SHIM, (.226)
    SPACER SHIM, (.226)
  • 21
    23-1761525 SPACER SHIM, (.228)
    SPACER SHIM, (.228)
  • 21
    23-1761526 SPACER SHIM, (.230)
    SPACER SHIM, (.230)
  • 22
    31-815480 BEARING, Thrust
    BEARING, Thrust
  • 23
    12-815481 THRUST WASHER
    THRUST WASHER
  • 24
    828831A3 ADAPTOR ASSEMBLY, Bearing
    ADAPTOR ASSEMBLY, Bearing
  • 25
    31-814653T BEARING ASSEMBLY, Needle Rollers
    BEARING ASSEMBLY, Needle Rollers
  • 26
    12-18448 THRUST WASHER
    THRUST WASHER
  • 27
    31-15842 BEARING, Thrust
    BEARING, Thrust
  • 28
    8182911 RACE, Thrust
    RACE, Thrust
  • 29
    814605 KEEPER
    KEEPER
  • 30
    25-31534 O-RING
    O-RING
  • 31
    818290T8 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 32
    31-30956T BEARING, Needle
    BEARING, Needle
  • 33
    26-14077 SEAL, Oil (INSIDE)
    SEAL, Oil (INSIDE)
  • 34
    26-76868 SEAL (OUTSIDE)
    SEAL (OUTSIDE)
  • 35
    14-18323 TAB WASHER
    TAB WASHER
  • 36
    8M2000347 RETAINER
    RETAINER
  • 37
    97-76214Q5 ANODE KIT
    ANODE KIT
  • 38
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 39
    NSS NOT SOLD SEPARATE, Decal-Counter Rotation
    NOT SOLD SEPARATE, Decal-Counter Rotation
  • -
    26-816575A4 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
