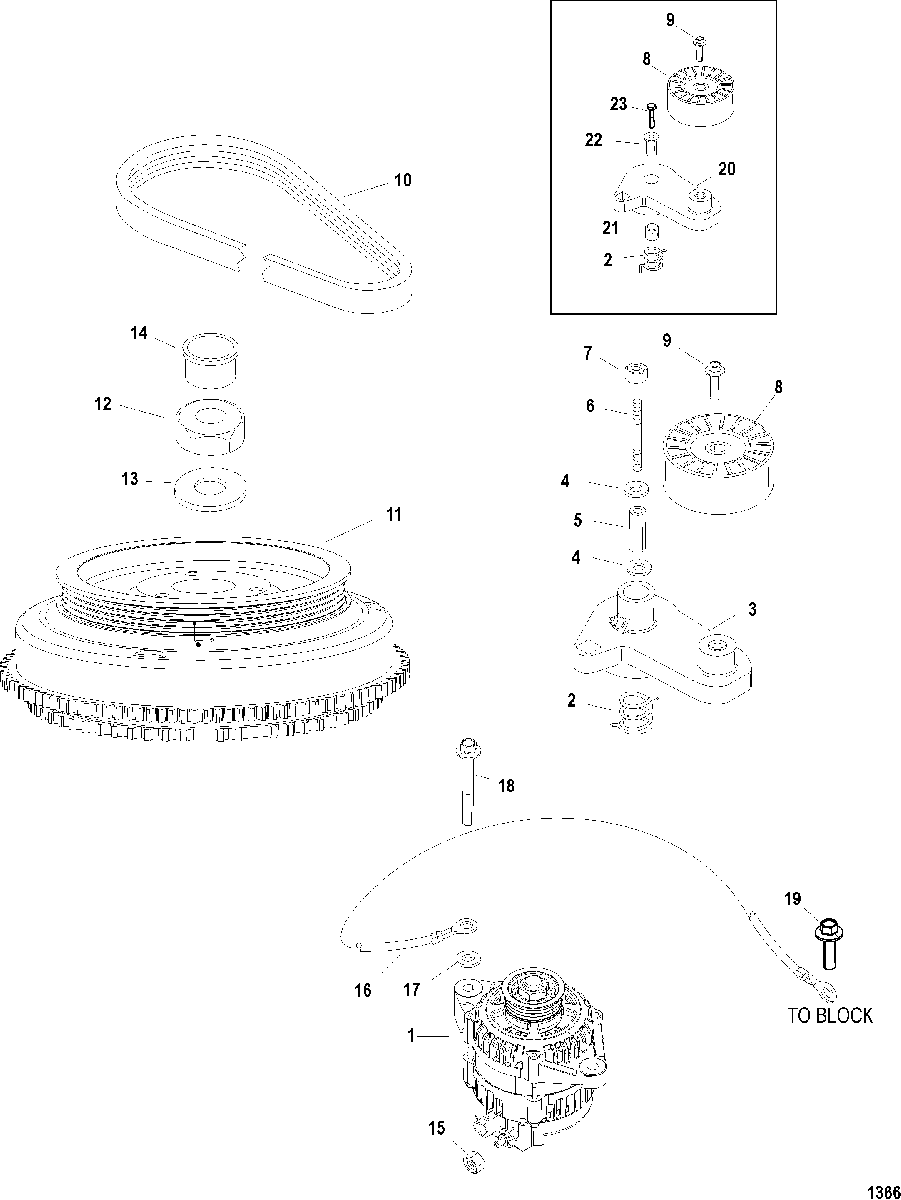

FLYWHEEL/ALTERNATOR для Mariner - 3.0L EFI MARATHON 0T409000 THRU 0T800999

  • №
    Артикул
    Название
  • 1
    8M0064020 ALTERNATOR
    SN# 0T598999 & Below
    ALTERNATOR
    SN# 0T598999 & Below
  • 1
    8M0064020 ALTERNATOR
    SN# 0T599000 & Up
    ALTERNATOR
    SN# 0T599000 & Up
  • 2
    24-8523742 SPRING
    SPRING
  • 3
    856815T2 ARM TENSIONER ASSEMBLY
    SN# 0T599000 & Up
    ARM TENSIONER ASSEMBLY
    SN# 0T599000 & Up
  • 4
    12-4002320 WASHER
    SN# 0T599000 & Up
    WASHER
    SN# 0T599000 & Up
  • 5
    23-8568941 BUSHING
    SN# 0T599000 & Up
    BUSHING
    SN# 0T599000 & Up
  • 6
    16-8M0034457 STUD, (M10 x 85)
    SN# 0T599000 & Up
    STUD, (M10 x 85)
    SN# 0T599000 & Up
  • 7
    11-826292 NUT, (M10) Brass/Nickel Plated
    SN# 0T599000 & Up
    NUT, (M10) Brass/Nickel Plated
    SN# 0T599000 & Up
  • 8
    8M6005030 PULLEY ASSEMBLY
    PULLEY ASSEMBLY
  • 9
    10-4010835 SCREW, (M10 x 35) Hex Flange - Stainless Steel
    SCREW, (M10 x 35) Hex Flange - Stainless Steel
  • 10
    57-828507Q11 BELT
    BELT
  • 11
    283-859619T1 FLYWHEEL
    (225) SN# 0T467442 & Up
    FLYWHEEL
    (225) SN# 0T467442 & Up
  • 11
    283-859619T1 FLYWHEEL
    (250) SN# 0T467335 & Up
    FLYWHEEL
    (250) SN# 0T467335 & Up
  • 11
    283-859619T3 FLYWHEEL
    (225) SN# 0T467441 & Below
    FLYWHEEL
    (225) SN# 0T467441 & Below
  • 11
    283-859619T3 FLYWHEEL
    (250) SN# 0T467334 & Below
    FLYWHEEL
    (250) SN# 0T467334 & Below
  • 12
    11-42979 NUT, (M16)
    NUT, (M16)
  • 13
    12-33001 WASHER, (.641 x 1.250 x .190)
    WASHER, (.641 x 1.250 x .190)
  • 14
    19-45907 PLUG, Yellow
    PLUG, Yellow
  • 15
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 16
    84-856583A4 CABLE ASSEMBLY
    (7-1/4)
    CABLE ASSEMBLY
    (7-1/4)
  • 16
    84-856583A5 CABLE ASSEMBLY
    (6-1/4)
    CABLE ASSEMBLY
    (6-1/4)
  • 17
    12-4002319 WASHER
    WASHER
  • 18
    10-82130150 SCREW, (M10 x 50)
    SCREW, (M10 x 50)
  • 19
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 20
    850291T3 BELT TENSIONER
    SN# 0T598999 & Below
    BELT TENSIONER
    SN# 0T598999 & Below
  • 21
    23-42139 BUSHING
    SN# 0T598999 & Below
    BUSHING
    SN# 0T598999 & Below
  • 22
    23-8525622 BUSHING
    SN# 0T598999 & Below
    BUSHING
    SN# 0T598999 & Below
  • 23
    10-4007180 SCREW, (M10 x 45)
    SN# 0T598999 & Below
    SCREW, (M10 x 45)
    SN# 0T598999 & Below
