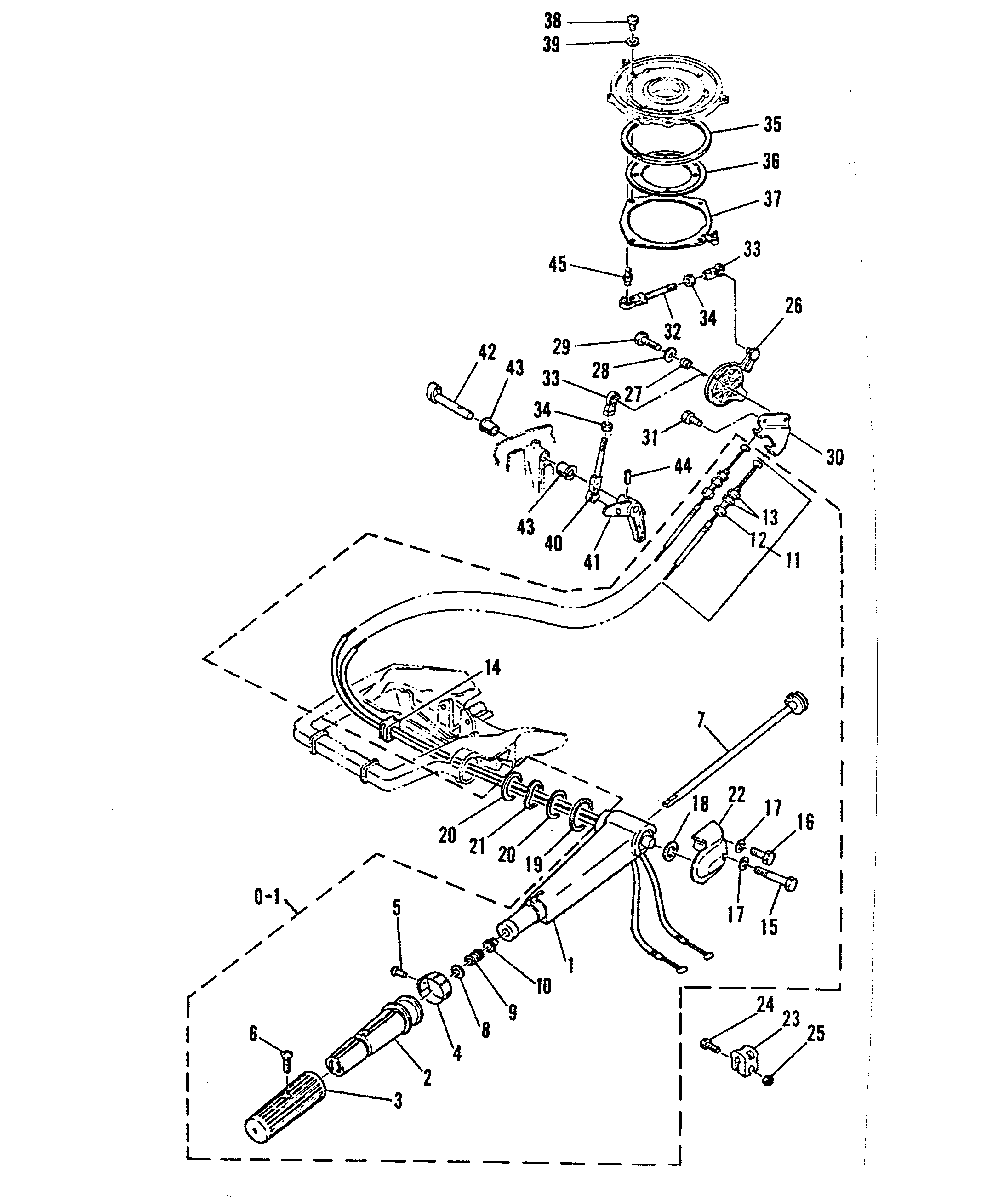

STEERING HANDLE AND THROTTLE CONTROL для Mariner - 30A 689-550101 AND UP
-
№АртикулНазвание
-
0-195420M STEERING HANDLE ASSEMBLY
ORDERING STEERING HANDLE ASSEMBLY AS A NEW ACCESSORY (NEW ADD ON ASSEMBLY), REF. #'S 23 THRU 25 ARE ALSO REQUIREDSTEERING HANDLE ASSEMBLY
ORDERING STEERING HANDLE ASSEMBLY AS A NEW ACCESSORY (NEW ADD ON ASSEMBLY), REF. #'S 23 THRU 25 ARE ALSO REQUIRED -
196664M STEERING HANDLESTEERING HANDLE
-
281585M GRIPGRIP
-
38M0080456 RUBBER HANDLERUBBER HANDLE
-
497137M THROTTLE INDICATORTHROTTLE INDICATOR
-
517-81907M RIVETRIVET
-
610-811916M SCREWSCREW
-
784856M THROTTLE SHAFTTHROTTLE SHAFT
-
812-82220M WASHERWASHER
-
924-82095M SPRINGSPRING
-
1023-81945M BUSHINGBUSHING
-
1141892M THROTTLE CABLE ASSEMBLYTHROTTLE CABLE ASSEMBLY
-
1210-815139M ADJUSTMENT COLLARADJUSTMENT COLLAR
-
1311-81765M NUTNUT
-
1425-82064M GROMMETGROMMET
-
1510-84931M BOLTBOLT
-
1610-84058M BOLTBOLT
-
1712-82214M WASHERWASHER
-
1823-82119M SPACERSPACER
-
1923-81861M WASHERWASHER
-
2012-84850M WASHERWASHER
-
2113-84851M WAVE WASHERWAVE WASHER
-
2284852M RETAINERRETAINER
-
2382895M FRICTION PIECEFRICTION PIECE
-
2410-84058M BOLTBOLT
-
2511-83056M NUTNUT
-
26811166M MAGNETO CONTROL LEVER (ELECTRIC)MAGNETO CONTROL LEVER (ELECTRIC)
-
2684858M MAGNETO CONTROL LEVER (MANUAL)MAGNETO CONTROL LEVER (MANUAL)
-
2723-83310M COLLARCOLLAR
-
2812-81969M COLLARCOLLAR
-
2910-82405M BOLTBOLT
-
30811167M RETAINER (ELECTRIC)RETAINER (ELECTRIC)
-
3084859M RETAINER (MANUAL)RETAINER (MANUAL)
-
3110-91772M BOLTBOLT
-
32811168M RODROD
-
3316715M JOINTJOINT
-
3411-82388M NUTNUT
-
3583566M RETAINERRETAINER
-
3619139M RETIANERRETIANER
-
3783569M BASE PLATEBASE PLATE
-
3810-14232M SCREWSCREW
-
3912-82211M WASHERWASHER
-
4014238M JOINTJOINT
-
4184863M THROTTLE CONTROL LEVER (ELECTRIC)THROTTLE CONTROL LEVER (ELECTRIC)
-
4197138M THROTTLE CONTROL LEVER (MANUAL)THROTTLE CONTROL LEVER (MANUAL)
-
4281134M THROTTLE CONTROL SHAFTTHROTTLE CONTROL SHAFT
-
4323-81946M BUSHINGBUSHING
-
4417-82156M ROLL PINROLL PIN
-
4584305M JOINTJOINT
