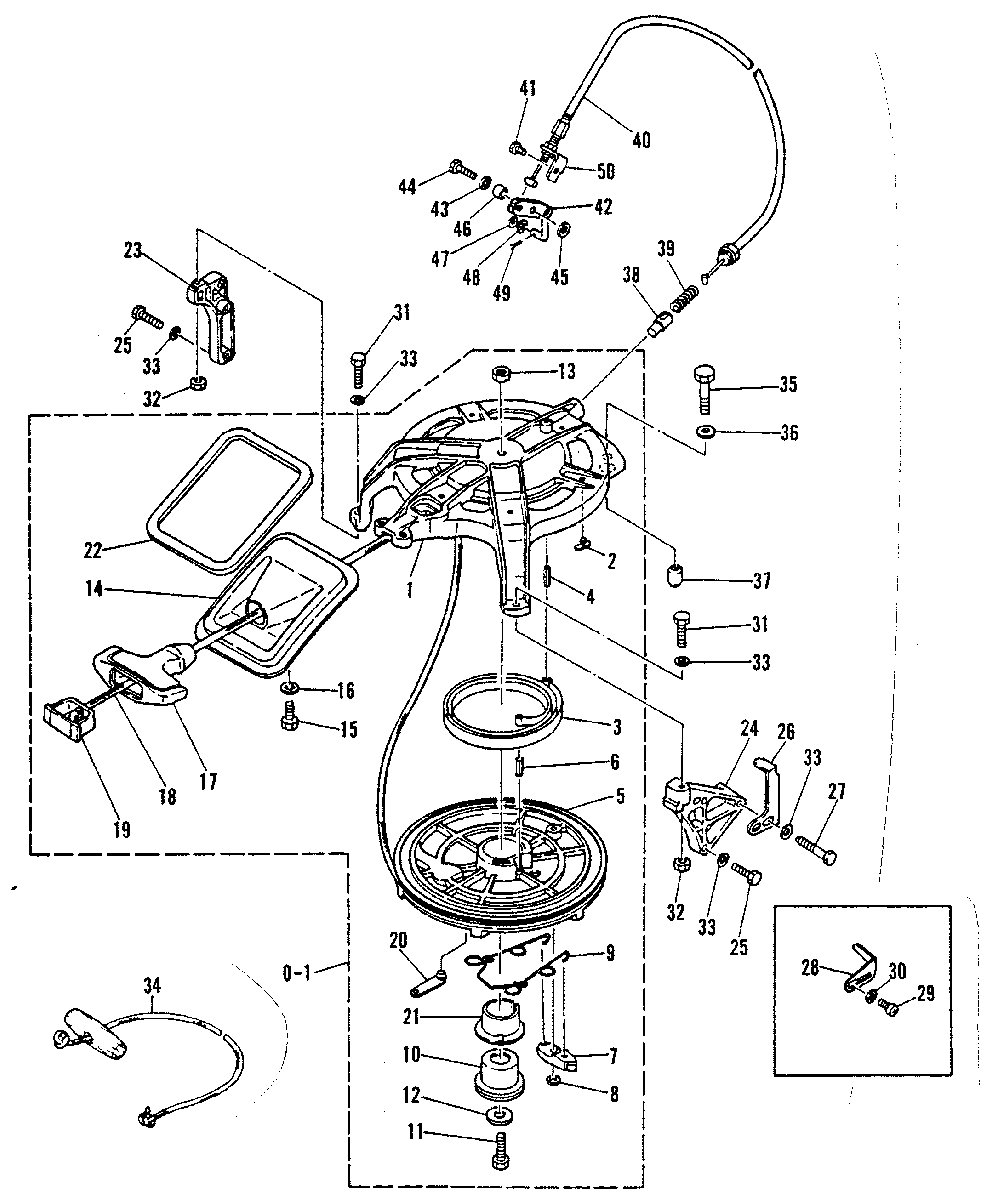

RECOIL STARTER для Mariner - 30A 689-550101 AND UP
-
№АртикулНазвание
-
0-150-19137M STARTER ASSEMBLYSTARTER ASSEMBLY
-
12169-811912M HOUSING
NOTE #1 M-689-232775 & BELOW ML-689-532960 & BELOW E-689-250855 & BELOW EL-689-551575 & BELOWHOUSING
NOTE #1 M-689-232775 & BELOW ML-689-532960 & BELOW E-689-250855 & BELOW EL-689-551575 & BELOW -
12169-811912M HOUSING
NOTE #2 M-689-232776 & UP
ML-689-532961 & UP
E-689-250856 & UP
EL-689-551576 & UPHOUSING
NOTE #2 M-689-232776 & UP
ML-689-532961 & UP
E-689-250856 & UP
EL-689-551576 & UP -
223-83585M PLUGPLUG
-
324-83588M SPRINGSPRING
-
417-852812 PINPIN
-
550-83587M STARTER SHEAVESTARTER SHEAVE
-
617-852812 ROLL PINROLL PIN
-
784894M PAULPAUL
-
853-84895M SNAP RINGSNAP RING
-
924-83591M SPRINGSPRING
-
1023-83590M SHAFTSHAFT
-
1110-84342M BOLTBOLT
-
1212-81801M WASHERWASHER
-
1311-82382M NUTNUT
-
1484890M GUIDEGUIDE
-
1510-826957M BOLTBOLT
-
1612-82214M WASHERWASHER
-
17814491M HANDLEHANDLE
-
1850-12066Q10 STARTER ROPESTARTER ROPE
-
19814492M COVERCOVER
-
2054-84893M CLIPCLIP
-
2123-83589M BUSHINGBUSHING
-
2284891M SEALSEAL
-
23811135M BRACKET (STARBOARD)BRACKET (STARBOARD)
-
2484466M BRACKET (PORT)BRACKET (PORT)
-
2510-82405M BOLTBOLT
-
2696341M TIMING PLATE - MANUALTIMING PLATE - MANUAL
-
2710-84657M BOLT - MANUALBOLT - MANUAL
-
28811153M TIMING PLATE - ELECTRICTIMING PLATE - ELECTRIC
-
2910-11832M SCREW - ELECTRICSCREW - ELECTRIC
-
3012-82213M WASHER - ELECTRICWASHER - ELECTRIC
-
3110-83285M BOLTBOLT
-
3211-82389M NUTNUT
-
3312-82214M WASHERWASHER
-
3447341A11 EMERGENCY STARTER ROPEEMERGENCY STARTER ROPE
-
3510-82442M BOLTBOLT
-
3612-82217M WASHERWASHER
-
3717-14229M DOWEL PINDOWEL PIN
-
3924-82079M SPRINGSPRING
-
40811152M CABLECABLE
-
4110-84088M BOLTBOLT
-
4281107M LINKLINK
-
4313-81867M WAVE WASHERWAVE WASHER
-
4410-84058M BOLTBOLT
-
4512-82214M WASHERWASHER
-
4623-82929M COLLARCOLLAR
-
4712-82211M WASHERWASHER
-
4813-81865M WAVE WASHERWAVE WASHER
-
4918-82125M COTTER PINCOTTER PIN
-
5092599M BRACKET (MANUAL)BRACKET (MANUAL)
-
5084939M BRACKET (ELECTRIC)BRACKET (ELECTRIC)
