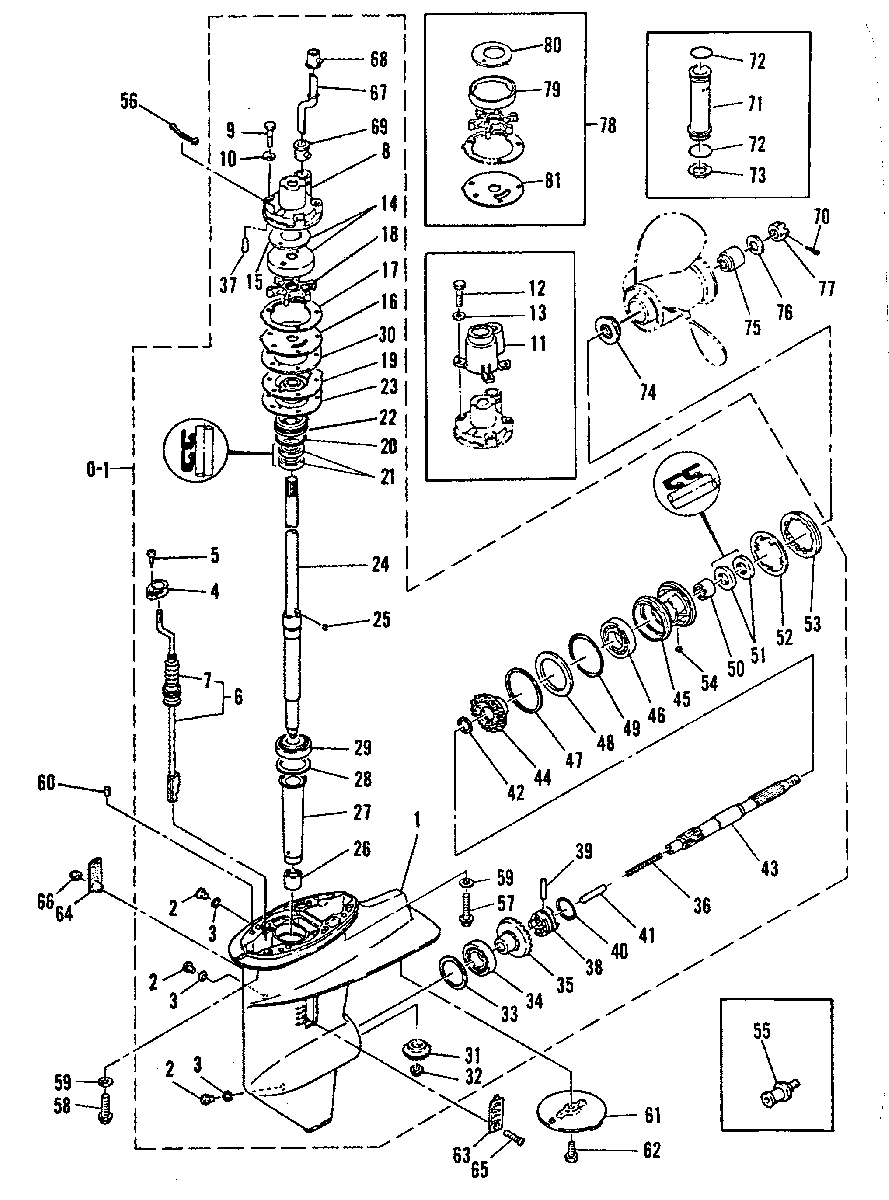

GEAR HOUSING ASSEMBLY для Mariner - 30A 689-250101 AND UP

№

Артикул

Название
0-1

1651-811171M GEAR HOUSING ASSEMBLY (SHORT)

GEAR HOUSING ASSEMBLY (SHORT)
0-1

1651-811172M GEAR HOUSING ASSEMBLY (LONG)

GEAR HOUSING ASSEMBLY (LONG)
1

1651-9362M GEAR HOUSING

GEAR HOUSING
2

22-81924M PLUG

PLUG
3

27-81987 GASKET

GASKET
4

84787M RETAINER

RETAINER
5

10-84788M SCREW

SCREW
6

19114M SHIFT SHAFT (SHORT)

SHIFT SHAFT (SHORT)
6

19115M SHIFT SHAFT (LONG)

SHIFT SHAFT (LONG)
7

82914M BOOT

BOOT
8

46-95651M WATER PUMP HOUSING

WATER PUMP HOUSING
9

10-804124 BOLT (SHORT)

BOLT (SHORT)
10

12-84791M WASHER (SHORT)

WASHER (SHORT)
11

84792M COVER (LONG)

COVER (LONG)
12

10-83285M BOLT (LONG)

BOLT (LONG)
13

12-82214M WASHER (LONG)

WASHER (LONG)
14

95652M INSERT

INSERT
15

27-95653M SEAL

SEAL
16

95654M BASE PLATE

BASE PLATE
17

27-41273 GASKET

GASKET
18

47-84797M IMPELLER

IMPELLER
19

811173M PROTECTOR

PROTECTOR
20

25-84054M O-RING

O-RING
21

26-854017 OIL SEAL

OIL SEAL
22

41271M COVER

COVER
23

27-84799 GASKET

GASKET
24

45-84800M DRIVE SHAFT (SHORT)

DRIVE SHAFT (SHORT)
24

45-84801M DRIVE SHAFT (LONG)

DRIVE SHAFT (LONG)
25

28-81603M KEY

KEY
26

29-84803M ROLLER BEARING (LOWER)

ROLLER BEARING (LOWER)
27

23-84804M SLEEVE

SLEEVE
28

15-19117M SHIM (0.10MM)

SHIM (0.10MM)
28

15-19118M SHIM (0.12MM)

SHIM (0.12MM)
28

15-19119M SHIM (0.15MM)

SHIM (0.15MM)
28

15-19120M SHIM (0.18MM)

SHIM (0.18MM)
28

15-19121M SHIM (0.30MM)

SHIM (0.30MM)
28

15-19122001 SHIM (0.40MM)

SHIM (0.40MM)
28

15-19123001 SHIM (0.50MM)

SHIM (0.50MM)
29

31-84805T ROLLER BEARING (UPPER)

ROLLER BEARING (UPPER)
30

27-95656M GASKET

GASKET
31

43-84806T PINION GEAR

PINION GEAR
32

11-84807M NUT

NUT
0-1

1651-811171M GEAR HOUSING ASSEMBLY (SHORT)

GEAR HOUSING ASSEMBLY (SHORT)
0-1

1651-811172M GEAR HOUSING ASSEMBLY (LONG)

GEAR HOUSING ASSEMBLY (LONG)
33

15-18954M SHIM (0.10MM)

SHIM (0.10MM)
33

15-18955M SHIM (0.12MM)

SHIM (0.12MM)
33

15-18956M SHIM (0.15MM)

SHIM (0.15MM)
33

15-18957M SHIM (0.18MM)

SHIM (0.18MM)
33

15-18958M SHIM (0.30MM)

SHIM (0.30MM)
33

15-18959M SHIM (0.40MM)

SHIM (0.40MM)
33

15-18960M SHIM (0.50MM)

SHIM (0.50MM)
34

31-82321T ROLLER BEARING (FORWARD)

ROLLER BEARING (FORWARD)
35

43-84808T FORWARD GEAR

FORWARD GEAR
36

24-82078M SPRING

SPRING
37

17-41275M DOWEL PIN

DOWEL PIN
38

52-8M0121331 CLUTCH

CLUTCH
39

17-81899M CROSS PIN

CROSS PIN
40

53-80678M RING

RING
41

80680M PLUNGER

PLUNGER
42

12-81831M THRUST WASHER

THRUST WASHER
43

44-19124A1 PROPELLER SHAFT

PROPELLER SHAFT
44

43-84810T REVERSE GEAR

REVERSE GEAR
45

8M0119783 BEARING CARRIER

BEARING CARRIER
46

30-82295T ROLLER BEARING

ROLLER BEARING
47

15-19125M SHIM (0.10MM)

SHIM (0.10MM)
47

15-19126M SHIM (0.12MM)

SHIM (0.12MM)
47

15-19127M SHIM (0.15MM)

SHIM (0.15MM)
47

15-19128M SHIM (0.18MM)

SHIM (0.18MM)
47

15-19129M SHIM (0.30MM)

SHIM (0.30MM)
47

15-19130M SHIM (0.40MM)

SHIM (0.40MM)
47

15-19131M SHIM (0.50MM)

SHIM (0.50MM)
48

12-81632M THRUST WASHER

THRUST WASHER
49

25-811175M O-RING

O-RING
50

31-82315M ROLLER BEARING

ROLLER BEARING
51

26-84813M OIL SEAL

OIL SEAL
52

14-84814M TAB WASHER

TAB WASHER
53

11-8M0073430 COVER NUT

COVER NUT
54

28-81916M KEY

KEY
55

22-8M0121335 FLUSH PLUG

FLUSH PLUG
56

23-84819M SEAL

SEAL
57

10-81711M BOLT

BOLT
58

10-94720M BOLT

BOLT
59

12-82220M WASHER

WASHER
60

17-82364M DOWEL PIN

DOWEL PIN
61

82795T TRIM TAB

TRIM TAB
62

10-82477M BOLT

BOLT
63

41896M COVER (PORT)

COVER (PORT)
64

41897M COVER (STARBOARD)

COVER (STARBOARD)
65

10-811916M SCREW

SCREW
66

11-8528165 NUT

NUT
67

32-81605M WATER TUBE (SHORT)

WATER TUBE (SHORT)
67

32-84816M WATER TUBE (LONG)

WATER TUBE (LONG)
68

26-84818M SEAL (UPPER)

SEAL (UPPER)
69

26-80239M SEAL (LOWER)

SEAL (LOWER)
70

18-82132M COTTER PIN

COTTER PIN
71

84820M WATER TUBE EXTENSION - LONG

WATER TUBE EXTENSION - LONG
72

25-84821M O-RING (LONG)

O-RING (LONG)
73

41277M PLATE (LONG)

PLATE (LONG)
74

859917 THRUST HUB (FORWARD)

THRUST HUB (FORWARD)
75

859895 THRUST HUB (REVERSE)

THRUST HUB (REVERSE)
76

859905 WASHER

WASHER
77

11-81774M PROPELLER NUT

PROPELLER NUT
78

46-95657M CHROME WATER PUMP KIT

CHROME WATER PUMP KIT
79

95658M INSERT

INSERT
80

27-95653M SEAL
(Seal attached to insert in Kit 95657M)

SEAL
(Seal attached to insert in Kit 95657M)
81

95659M OUTER PLATE

OUTER PLATE
81

95659M OUTER PLATE

OUTER PLATE
