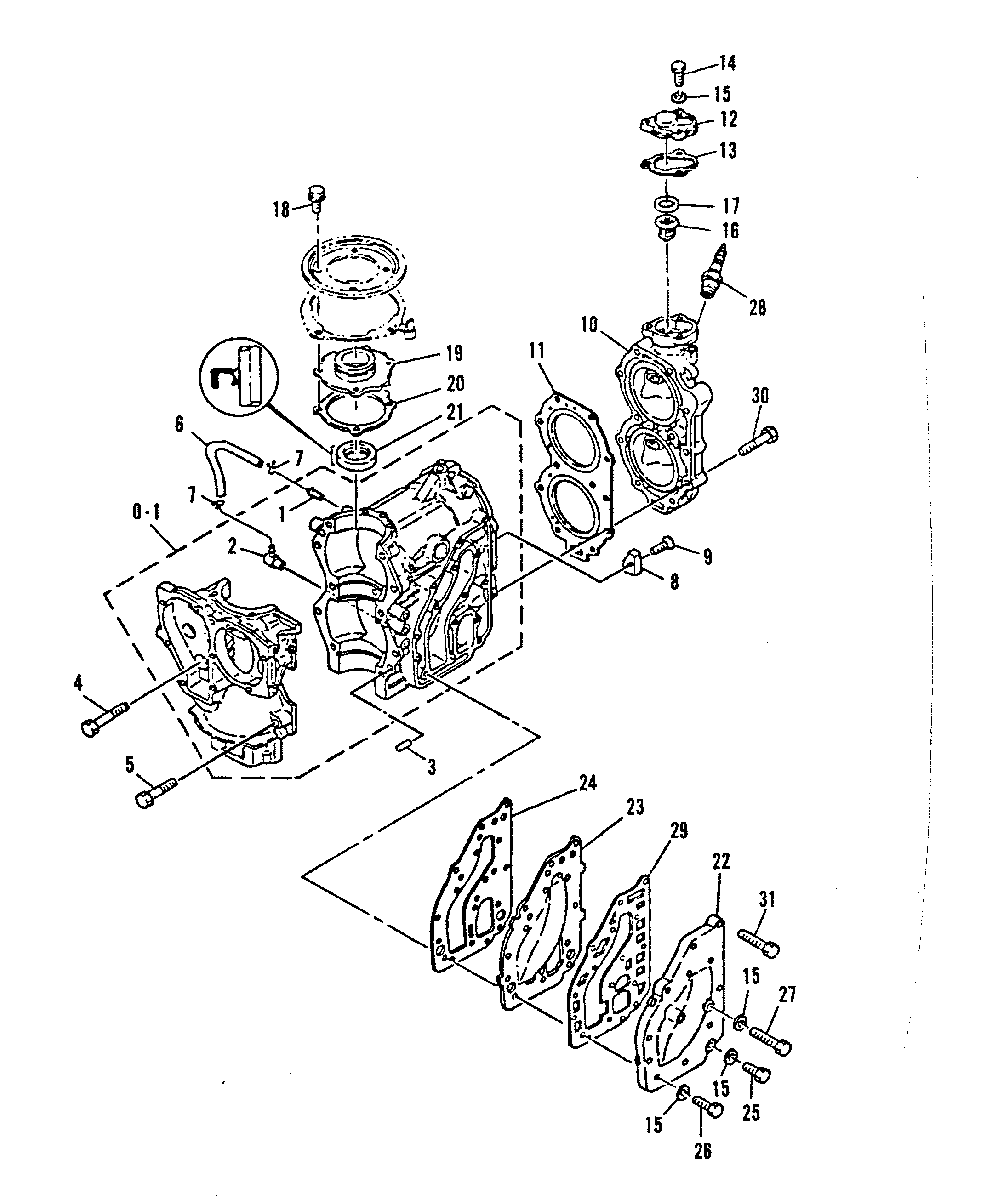

CRANKCASE AND CYLINDER HEAD для Mariner - 30A 689-250101 AND UP
-
№АртикулНазвание
-
0-1870-811024M CYLINDER BLOCK (ELECTRIC)CYLINDER BLOCK (ELECTRIC)
-
0-1870-9371M CYLINDER BOLCK (MANUAL)CYLINDER BOLCK (MANUAL)
-
122-80122M FITTINGFITTING
-
221-80727M CHECK VALVECHECK VALVE
-
317-82364M DOWEL PINDOWEL PIN
-
410-8527761 BOLT (ELECTRIC)BOLT (ELECTRIC)
-
410-41885M BOLT (MANUAL)BOLT (MANUAL)
-
510-8M0101617 BOLT (QTY. OF 9 ON ELECTRIC)BOLT (QTY. OF 9 ON ELECTRIC)
-
632-811045M HOSEHOSE
-
754-82046M CLAMPCLAMP
-
897-84732M ANODEANODE
-
910-95209M SCREWSCREW
-
10968-7194M CYLINDER HEADCYLINDER HEAD
-
1127-19138 GASKETGASKET
-
1281030M COVERCOVER
-
1327-81031 GASKETGASKET
-
1410-811025M GOLT (ELECTRIC)GOLT (ELECTRIC)
-
1410-84058M BOLT (MANUAL)BOLT (MANUAL)
-
1512-82214M WASHER (QTY. OF 26 ON ELECTRIC)WASHER (QTY. OF 26 ON ELECTRIC)
-
1695679M THERMOSTATTHERMOSTAT
-
1712-81835M WASHERWASHER
-
1810-811022M BOLTBOLT
-
1984736M HOUSINGHOUSING
-
2027-84737M GASKETGASKET
-
2126-811021M OIL SEALOIL SEAL
-
2295680M EXHAUST COVER (OUTER)EXHAUST COVER (OUTER)
-
2395681M EXHAUST COVER (INNER)EXHAUST COVER (INNER)
-
2427-84741M GASKETGASKET
-
2510-82405M BOLTBOLT
-
2610-83285M BOLT (QTY. OF 10 ON ELECTRIC)BOLT (QTY. OF 10 ON ELECTRIC)
-
2710-84931M BOLTBOLT
-
2833-8M0114739 SPARKPLUGSPARKPLUG
-
2927-96656M GASKETGASKET
-
3010-41885M BOLTBOLT
-
3110-83285M BOLT (ELECTRIC)BOLT (ELECTRIC)
