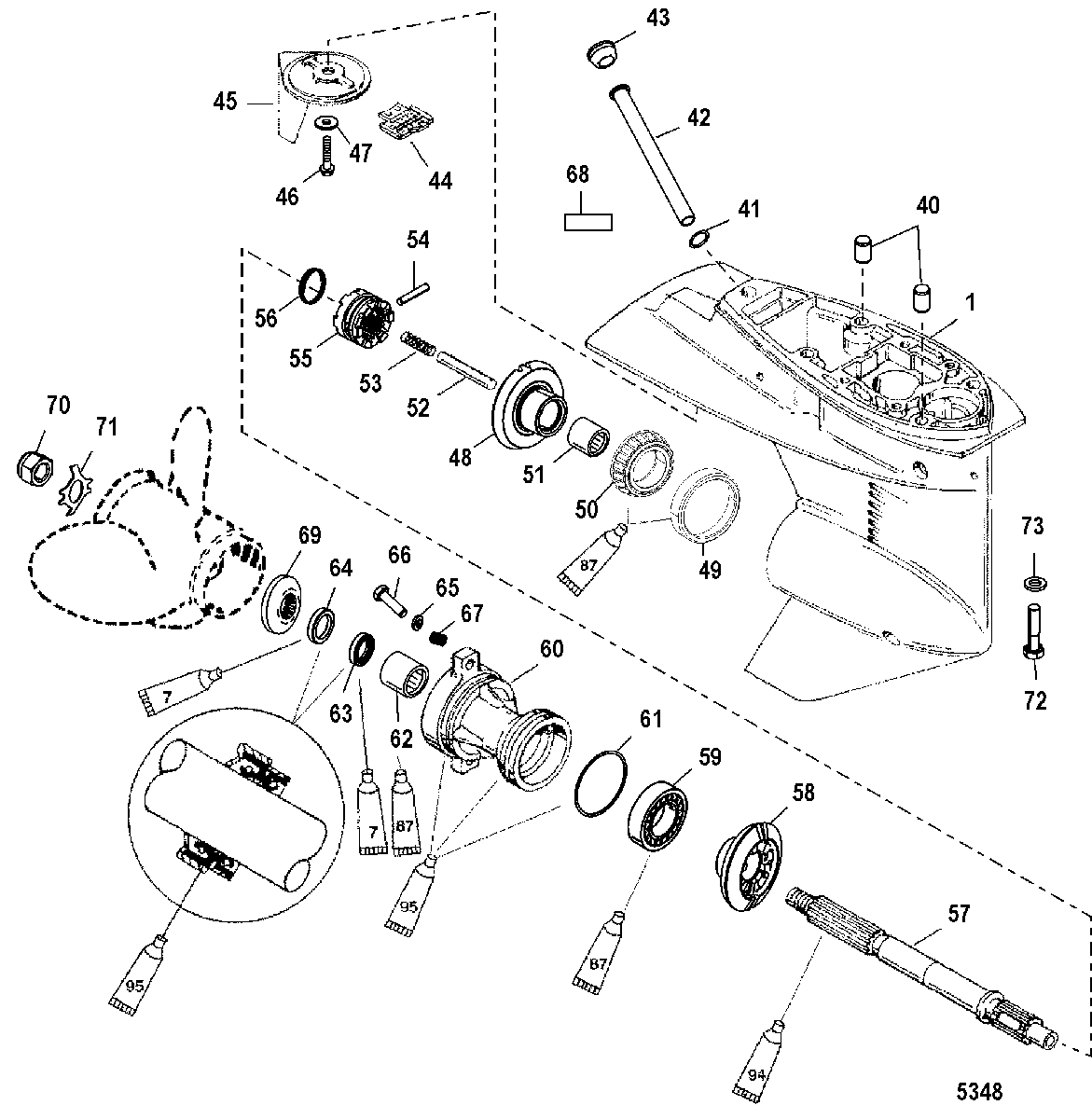

GEAR HOUSING(PROPELLER SHAFT)(1.83:1 GEAR RATIO) для Mariner - 30 JET (3 CYL.) 9973100 THRU 0P016999

№

Артикул

Название
-

1682-821306T26 GEAR HOUSING ASSEMBLY
(BLACK) SHORT

GEAR HOUSING ASSEMBLY
(BLACK) SHORT

258 660 ₽
-

1682-821306T26 GEAR HOUSING ASSEMBLY
(GRAY) SHORT

GEAR HOUSING ASSEMBLY
(GRAY) SHORT

258 660 ₽
-

1682-821306T28 GEAR HOUSING ASSEMBLY
(BLACK) LONG

GEAR HOUSING ASSEMBLY
(BLACK) LONG

310 900 ₽
-

1682-821306T28 GEAR HOUSING ASSEMBLY
(GRAY) LONG

GEAR HOUSING ASSEMBLY
(GRAY) LONG

310 900 ₽
1

1682-821306T12 GEAR HOUSING ASSEMBLY
(BASIC-BLACK)

GEAR HOUSING ASSEMBLY
(BASIC-BLACK)

62 060 ₽
1

1682-821306T12 GEAR HOUSING ASSEMBLY
(BASIC-GRAY)

GEAR HOUSING ASSEMBLY
(BASIC-GRAY)

62 060 ₽
40

17-821327 PIN, Dowel

PIN, Dowel

190 ₽
41

27-823942 GASKET

GASKET

60 ₽
42

32-8M0026108 TUBE

TUBE

1 560 ₽
43

19-824928001 PLUG, Rubber

PLUG, Rubber

400 ₽
44

821829 SCREEN

SCREEN

790 ₽
45

822157T2 TRIM TAB

TRIM TAB

4 340 ₽
46

10-82497020 SCREW, (M8 x 20)

SCREW, (M8 x 20)

230 ₽
47

12-72397 WASHER

WASHER

150 ₽
48

43-822162T2 GEAR ASSEMBLY, Forward (22 TEETH)

GEAR ASSEMBLY, Forward (22 TEETH)

34 980 ₽
49

31-8M0103470 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

5 290 ₽
50

NSS NOT SOLD SEPARATE, Cup

NOT SOLD SEPARATE, Cup

0 ₽
51

31-41326 BEARING, Roller

BEARING, Roller

1 960 ₽
52

821578 FOLLOWER, Cam

FOLLOWER, Cam

2 620 ₽
53

24-8261991 SPRING

SPRING

320 ₽
54

17-8M0020999 PIN

PIN

650 ₽
55

52-821314T CLUTCH

CLUTCH

6 850 ₽
56

24-38114 SPRING

SPRING

290 ₽
57

44-8M0140441 PROPELLER SHAFT

PROPELLER SHAFT

60 380 ₽
58

43-822163T1 GEAR, Reverse (22 TEETH)

GEAR, Reverse (22 TEETH)

38 100 ₽
59

30-20839T BEARING, Ball

BEARING, Ball

4 220 ₽
60

19291A3 CARRIER ASSEMBLY, Bearing

CARRIER ASSEMBLY, Bearing

7 870 ₽
61

25-815460 O-RING

O-RING

290 ₽
62

31-21700 BEARING, Needle

BEARING, Needle

1 970 ₽
63

26-69188 SEAL, Oil

SEAL, Oil

1 090 ₽
64

26-69189 SEAL, Oil

SEAL, Oil

1 750 ₽
65

12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel

WASHER, (.323 x .563 x .063) Stainless Steel

150 ₽
65

12-855941 WASHER, (.323 x .590 x .112) Stainless Steel
(USE WITH THREADED INSERT)

WASHER, (.323 x .590 x .112) Stainless Steel
(USE WITH THREADED INSERT)

110 ₽
66

10-4000353 SCREW, (M8 x 25)

SCREW, (M8 x 25)

190 ₽
66

10-85594030 SCREW, (M8 x 30)
(USE WITH THREADED INSERT)

SCREW, (M8 x 30)
(USE WITH THREADED INSERT)

190 ₽
67

8227731 INSERT, Threaded

INSERT, Threaded

330 ₽
68

NSS NOT SOLD SEPARATE, Decal (1.83:1)

NOT SOLD SEPARATE, Decal (1.83:1)

0 ₽
69

73345A1 THRUST HUB

THRUST HUB

1 570 ₽
70

11-69578Q1 PROP NUT KIT

PROP NUT KIT

2 550 ₽
71

14-76281 TAB WASHER

TAB WASHER

120 ₽
72

10-4000380 SCREW, (M10 x 45)

SCREW, (M10 x 45)

360 ₽
73

12-45176 WASHER, (.453 x .812 x .105) Stainless Steel

WASHER, (.453 x .812 x .105) Stainless Steel

130 ₽
-

27-828553A97 GASKET SET

GASKET SET

7 040 ₽
-

823547A2 SEAL KIT

SEAL KIT

5 030 ₽
