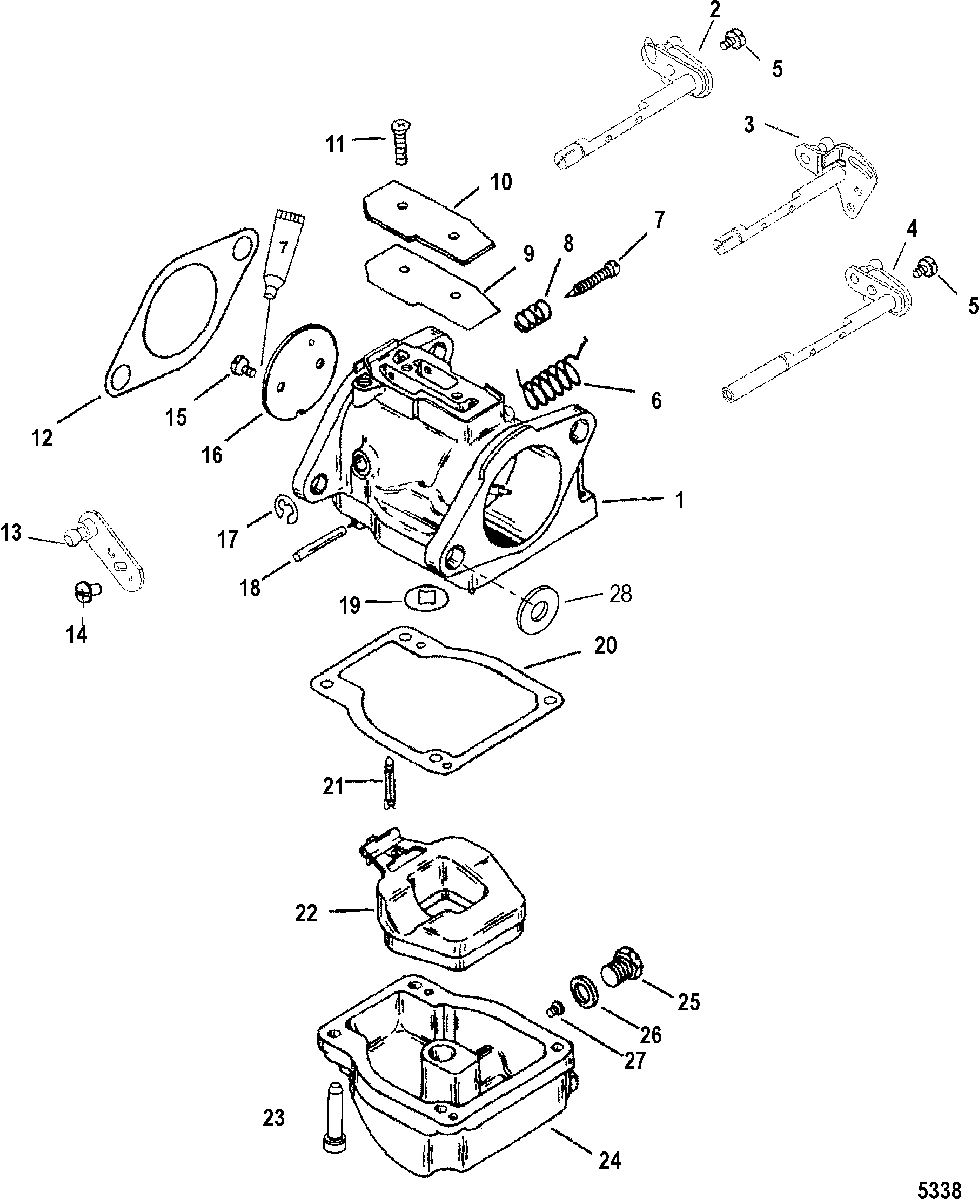

CARBURETOR для Mariner - 30 JET (3 CYL.) 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    3301-823799T34 CARBURETOR
    (TOP) ELECTRIC 40 - WME-53 1-2-3
    CARBURETOR
    (TOP) ELECTRIC 40 - WME-53 1-2-3
  • 1
    3301-823799T35 CARBURETOR
    (CENTER) ELECTRIC 40 - WME-53 1-2-3
    CARBURETOR
    (CENTER) ELECTRIC 40 - WME-53 1-2-3
  • 1
    3301-823799T36 CARBURETOR
    (BOTTOM) ELECTRIC 40 - WME-53 1-2-3
    CARBURETOR
    (BOTTOM) ELECTRIC 40 - WME-53 1-2-3
  • 1
    3301-823799T31 CARBURETOR
    (TOP) MANUAL 40 - WME-69 1-2-3
    CARBURETOR
    (TOP) MANUAL 40 - WME-69 1-2-3
  • 1
    3301-823799T32 CARBURETOR
    (CENTER) MANUAL 40 - WME-69 1-2-3
    CARBURETOR
    (CENTER) MANUAL 40 - WME-69 1-2-3
  • 1
    3301-823799A33 CARBURETOR
    (BOTTOM) MANUAL 40 - WME-69 1-2-3
    CARBURETOR
    (BOTTOM) MANUAL 40 - WME-69 1-2-3
  • 1
    3301-824902T28 CARBURETOR
    (TOP) 50 - WME-68 1-2-3
    CARBURETOR
    (TOP) 50 - WME-68 1-2-3
  • 1
    3301-824902T29 CARBURETOR
    (CENTER) 50 - WME-68 1-2-3
    CARBURETOR
    (CENTER) 50 - WME-68 1-2-3
  • 1
    3301-824902T30 CARBURETOR
    (BOTTOM) 50 - WME-68 1-2-3
    CARBURETOR
    (BOTTOM) 50 - WME-68 1-2-3
  • 2
    1395-823632 SHAFT, Throttle
    (UPPER) WME-53/68
    SHAFT, Throttle
    (UPPER) WME-53/68
  • 3
    1395-823633 SHAFT, Throttle
    (CENTER) WME-53/68
    SHAFT, Throttle
    (CENTER) WME-53/68
  • 4
    1395-823636 SHAFT, Throttle
    (BOTTOM) WME-53/68
    SHAFT, Throttle
    (BOTTOM) WME-53/68
  • 2
    1395-823632 SHAFT, Throttle
    (UPPER/BOTTOM) WME-69
    SHAFT, Throttle
    (UPPER/BOTTOM) WME-69
  • 3
    1395-823633 SHAFT, Throttle
    (CENTER) WME-69
    SHAFT, Throttle
    (CENTER) WME-69
  • 5
    1395-823634 SCREW
    (UPPER/BOTTOM)
    SCREW
    (UPPER/BOTTOM)
  • 6
    NSS NOT SOLD SEPARATE, Spring-Throttle Return
    NOT SOLD SEPARATE, Spring-Throttle Return
  • 7
    NSS NOT SOLD SEPARATE, Idle Needle
    NOT SOLD SEPARATE, Idle Needle
  • 8
    NSS NOT SOLD SEPARATE, Spring-Idle Needle
    NOT SOLD SEPARATE, Spring-Idle Needle
  • 9
    NSS NOT SOLD SEPARATE, Gasket-cover Plate
    NOT SOLD SEPARATE, Gasket-cover Plate
  • 10
    1395-811221 COVER PLATE
    COVER PLATE
  • 11
    1395-811220 SCREW, Cover Plate
    SCREW, Cover Plate
  • 12
    27-8144461 GASKET, Flange
    GASKET, Flange
  • 13
    1395-8113522 LEVER, Oil Pump
    BOTTOM - WME-53/68
    LEVER, Oil Pump
    BOTTOM - WME-53/68
  • 14
    1395-8086121 SCREW, Lever Retainer
    BOTTOM - WME-53/68
    SCREW, Lever Retainer
    BOTTOM - WME-53/68
  • 15
    10-F10155 SCREW, Throttle Valve
    SCREW, Throttle Valve
  • 16
    1395-97245 VALVE, Throttle
    VALVE, Throttle
  • 17
    NSS NOT SOLD SEPARATE, Retaining Ring
    NOT SOLD SEPARATE, Retaining Ring
  • 18
    F10064 SHAFT
    SHAFT
  • 19
    1395-808738 GASKET
    GASKET
  • 20
    NSS NOT SOLD SEPARATE, Gasket-Fuel Bowl
    NOT SOLD SEPARATE, Gasket-Fuel Bowl
  • 21
    10-95951 VALVE, Inlet Needle
    VALVE, Inlet Needle
  • 22
    1395-9594 FLOAT
    FLOAT
  • 23
    1395-808612 SCREW AND WASHER, (#8-32 x .750)
    SCREW AND WASHER, (#8-32 x .750)
  • 24
    1395-811693 BOWL, Fuel
    (WME-53/68)
    BOWL, Fuel
    (WME-53/68)
  • 24
    1395-811695 BOWL, Fuel
    (UPPER) WME-69
    BOWL, Fuel
    (UPPER) WME-69
  • 24
    1395-811693 BOWL, Fuel
    (CENTER/BOTTOM) WME-69
    BOWL, Fuel
    (CENTER/BOTTOM) WME-69
  • 25
    1395-811694 PLUG KIT
    WME-69
    PLUG KIT
    WME-69
  • 26
    1395-802731 SEAL (CONSISTS OF 4 SEALS)
    SEAL (CONSISTS OF 4 SEALS)
  • 27
    1395-7394 JET, (.044)
    (WME-53/69)
    JET, (.044)
    (WME-53/69)
  • 27
    1395-6359 JET, (.052)
    (WME-68)
    JET, (.052)
    (WME-68)
  • -
    1395-8236354 REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
  • -
    1395-8112231 GASKET SET, Carburetor
    GASKET SET, Carburetor
  • -
    27-828553A97 GASKET SET
    GASKET SET
