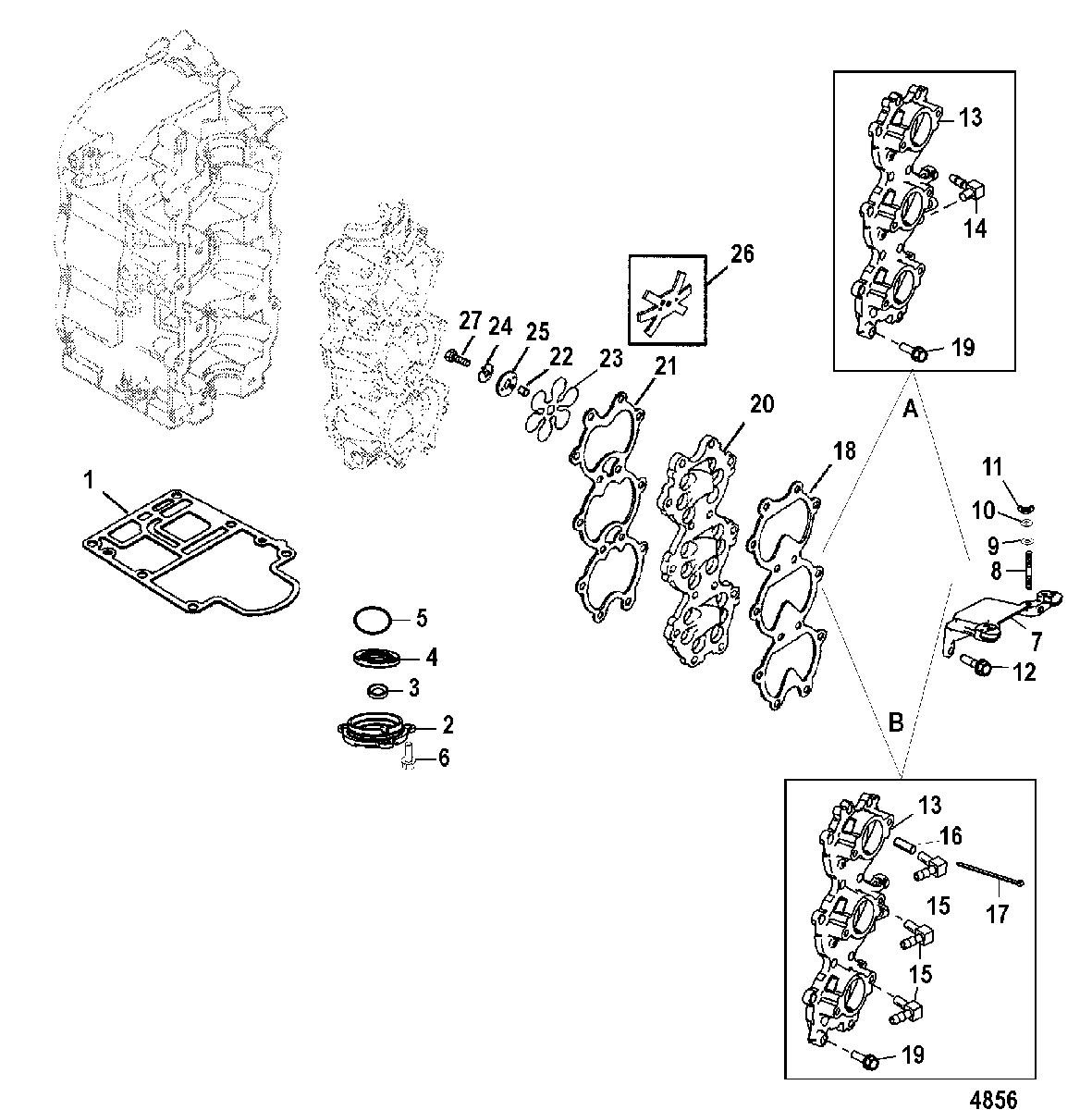

Induction Manifold and Reed Block для Mariner - 30 JET (3 CYL.) 0P017000 THRU 0P153499

  • №
    Артикул
    Название
  • 1
    27-8M0000822 GASKET
    GASKET
  • 2
    1171-9812A8 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 3
    26-828932 SEAL, Oil
    SEAL, Oil
  • 4
    26-41953 SEAL
    SEAL
  • 5
    25-896523 O-RING, (2.175 x .175)
    O-RING, (2.175 x .175)
  • 6
    10-81742720 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 7
    19077A07 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 8
    16-8161949 STUD, (M6 x 44)
    STUD, (M6 x 44)
  • 9
    12-49221 WASHER, (.187 x .500 x .062) Neoprene
    (Electric)
    WASHER, (.187 x .500 x .062) Neoprene
    (Electric)
  • 10
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    (Electric)
    WASHER, (.255 x .620 x .030) Stainless Steel
    (Electric)
  • 11
    11-816872 WING NUT
    (Electric)
    WING NUT
    (Electric)
  • 12
    10-82127335 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 13
    827998A1 MANIFOLD ASSEMBLY, Induction
    MANIFOLD ASSEMBLY, Induction
  • 14
    22-19725 ELBOW
    (Electric)
    ELBOW
    (Electric)
  • 15
    22-19725 ELBOW
    (Manual)
    ELBOW
    (Manual)
  • 16
    22-15026 CAP
    (Manual)
    CAP
    (Manual)
  • 17
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 18
    27-812869 GASKET
    GASKET
  • 19
    10-81742730 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 20
    19075A3 REED BLOCK ASSEMBLY
    REED BLOCK ASSEMBLY
  • 21
    27-812868 GASKET
    GASKET
  • 22
    NSS NOT SOLD SEPARATE
    (Dowel Pin)
    NOT SOLD SEPARATE
    (Dowel Pin)
  • 23
    34-812880A03 REED ASSEMBLY
    REED ASSEMBLY
  • 24
    14-429821 TAB WASHER
    TAB WASHER
  • 25
    812879002 RETAINER, Reed
    (50)
    RETAINER, Reed
    (50)
  • 26
    825267 RETAINER, Reed
    (40)
    RETAINER, Reed
    (40)
  • 27
    10-88421471 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • -
    852067T98 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    27-828553A97 GASKET SET
    GASKET SET
