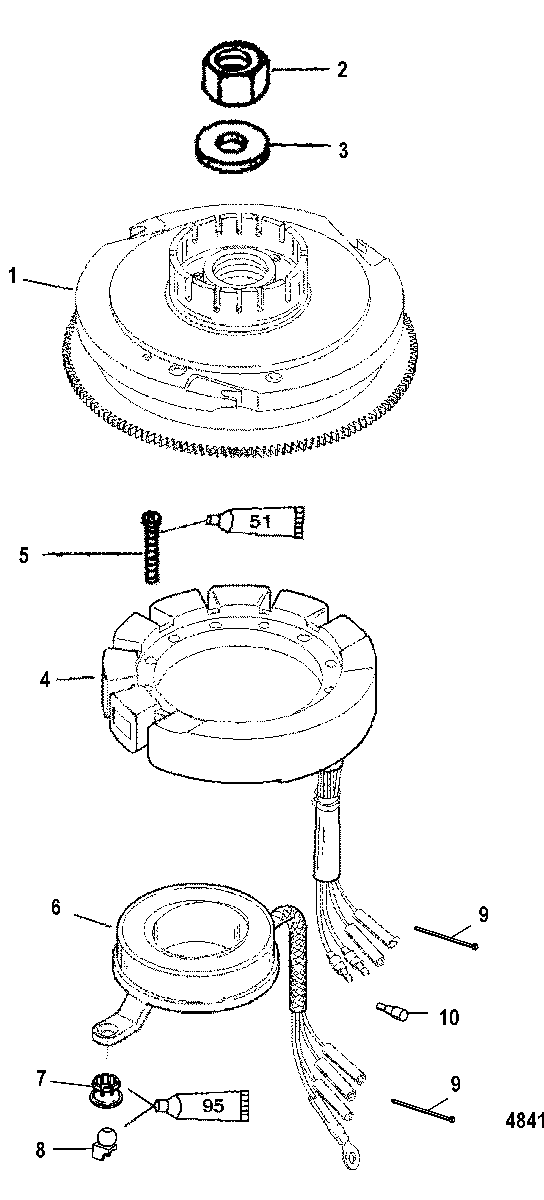

Flywheel and Stator(Manual) для Mariner - 30 JET (3 CYL.) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
1261-859234T25 FLYWHEELFLYWHEEL
-
211-42979 NUT, (M16)NUT, (M16)
-
312-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
4398-832074A11 STATORSTATOR
-
510-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
6854512T TRIGGERTRIGGER
-
793421 SWIVEL BALLSWIVEL BALL
-
893254 SWIVEL BASESWIVEL BASE
-
954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1013541 PLUG, MalePLUG, Male
