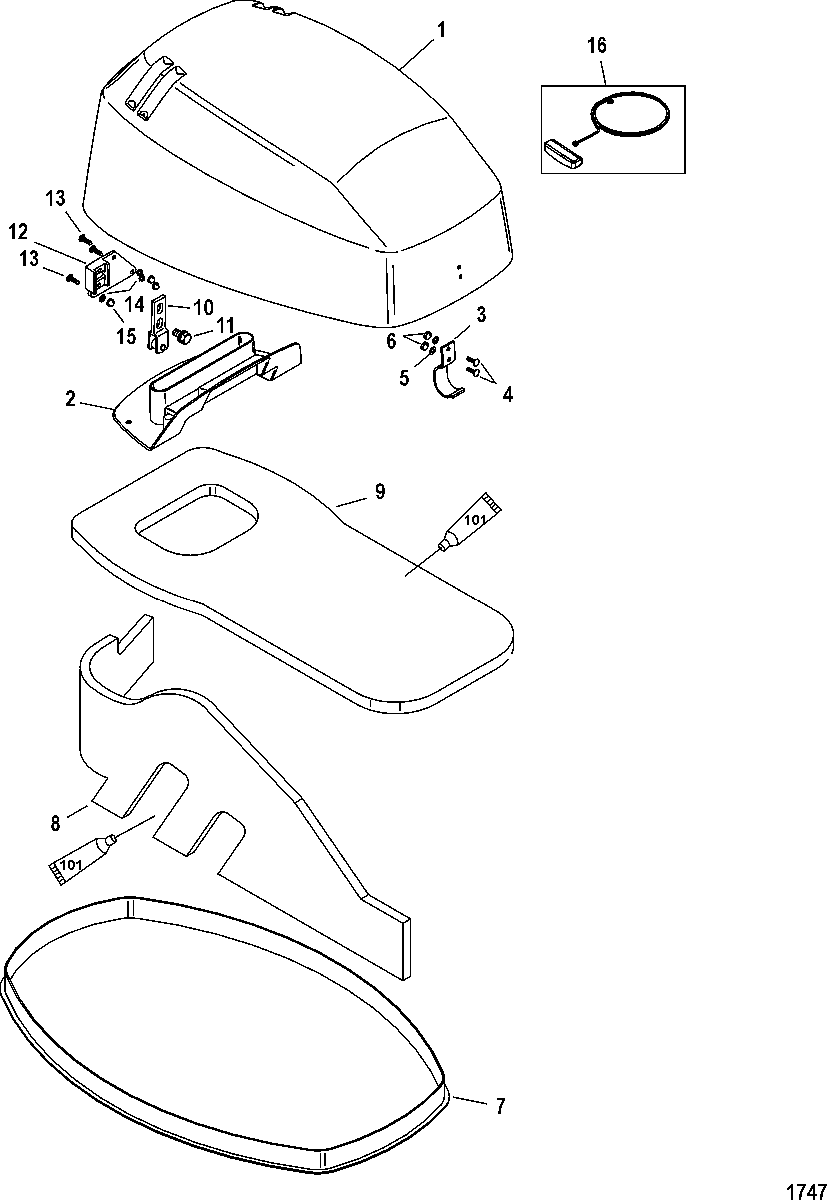

Top Cowl для Mariner - 30 EFI (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    102-834785T22 TOP COWL ASSEMBLY
    (BLACK)
    TOP COWL ASSEMBLY
    (BLACK)
  • 1
    102-834785T8 TOP COWL ASSEMBLY
    (SILVER)
    TOP COWL ASSEMBLY
    (SILVER)
  • 2
    NSS NOT SOLD SEPARATE, Induction Insert
    NOT SOLD SEPARATE, Induction Insert
  • 3
    826291F1 LATCH
    (BLACK)
    LATCH
    (BLACK)
  • 3
    826291F1 LATCH
    (SILVER)
    LATCH
    (SILVER)
  • 4
    10-8231871 SCREW, (M4 x 14.5)
    SCREW, (M4 x 14.5)
  • 5
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 6
    11-8237515 NUT, (M4)
    NUT, (M4)
  • 7
    8M0043388 SEAL
    SEAL
  • 8
    834786A04 SOUND BLANKET KIT
    (SIDE)
    SOUND BLANKET KIT
    (SIDE)
  • 9
    NSS NOT SOLD SEPARATE, Sound Blanket-Top
    NOT SOLD SEPARATE, Sound Blanket-Top
  • 10
    893763 BRACKET ASSEMBLY, Latch Roller
    BRACKET ASSEMBLY, Latch Roller
  • 11
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 12
    8M0038412 BRACKET
    BRACKET
  • 13
    10-8231871 SCREW, (M4 x 14.5)
    SCREW, (M4 x 14.5)
  • 14
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 15
    11-8237515 NUT, (M4)
    NUT, (M4)
  • 16
    47341A11 ROPE AND HANDLE KIT, Manual Starting
    ROPE AND HANDLE KIT, Manual Starting
