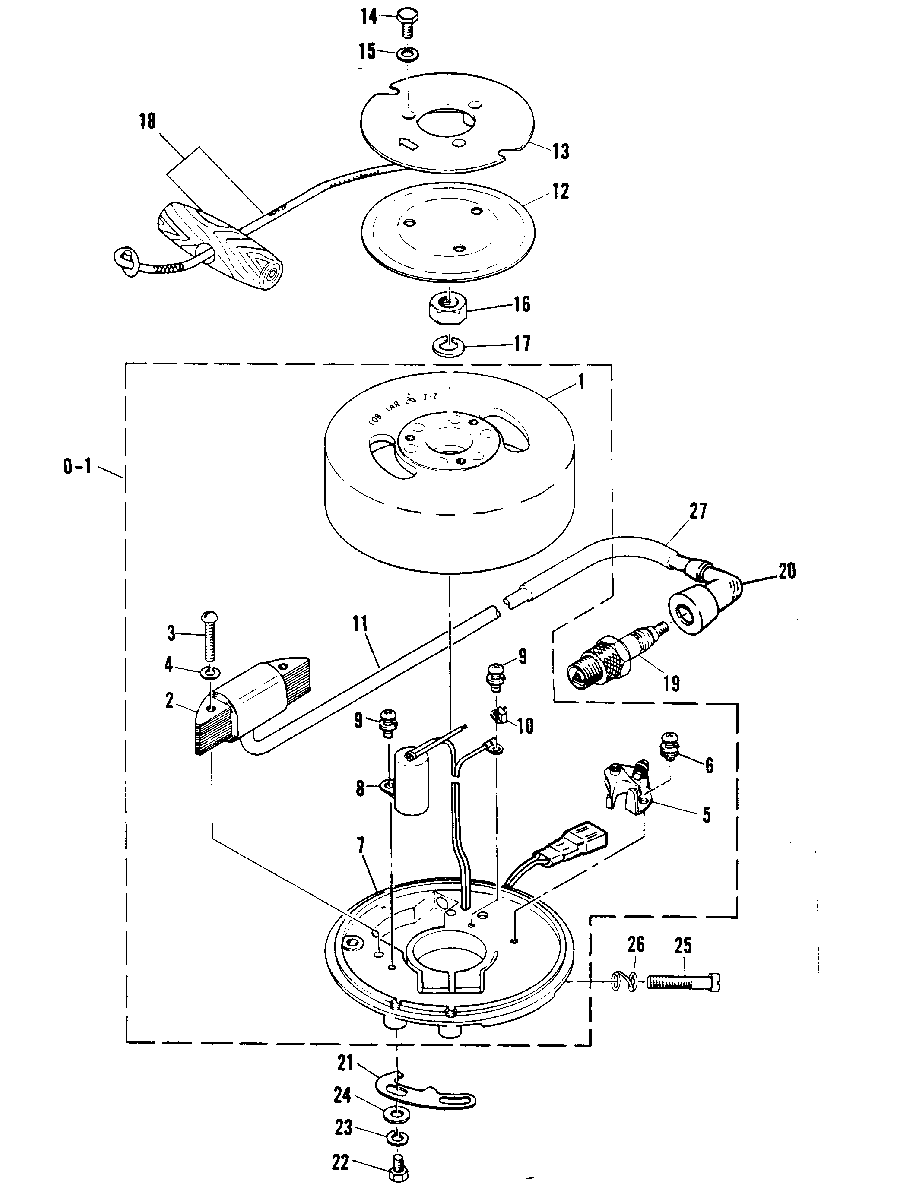

FLYWHEEL MAGNETO AND STARTER для Mariner - 2A 646-31100 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    NLA FLYWHEEL MAGNETO ASSEMBLY
    FLYWHEEL MAGNETO ASSEMBLY
  • 1
    NLA FLYWHEEL
    FLYWHEEL
  • 2
    80413M IGNITION COIL
    SERIAL 00#21746-09999999
    IGNITION COIL
    SERIAL 00#21746-09999999
  • 2
    82604M IGNITION COIL
    SERIAL 00000000-00#21745
    IGNITION COIL
    SERIAL 00000000-00#21745
  • 3
    10-82507M SCREW
    SCREW
  • 4
    13-82206M LOCKWASHER
    LOCKWASHER
  • 5
    82693M BREAKER
    SERIAL 00#21746-09999999
    BREAKER
    SERIAL 00#21746-09999999
  • 5
    82693M BREAKER
    SERIAL 00000000-00#21745
    BREAKER
    SERIAL 00000000-00#21745
  • 6
    10-80001M SCREW
    SCREW
  • 7
    80412M MAGNETO BASE-SER & UP
    SERIAL 00#21746-09999999
    MAGNETO BASE-SER & UP
    SERIAL 00#21746-09999999
  • 8
    80414M CONDENSER
    SERIAL 00#21746-09999999
    CONDENSER
    SERIAL 00#21746-09999999
  • 7
    NLA MAGENTO BASE-SER. & BELOW)
    SERIAL 00000000-00#21745
    MAGENTO BASE-SER. & BELOW)
    SERIAL 00000000-00#21745
  • 8
    82572M CONDENSER
    SERIAL 00000000-00#21745
    CONDENSER
    SERIAL 00000000-00#21745
  • 9
    10-80001M SCREW
    SCREW
  • 10
    80003M LUBRICATOR
    LUBRICATOR
  • 11
    84-82831M HIGH TENSION LEAD
    HIGH TENSION LEAD
  • 12
    92543M COVER(SER. & UP)
    SERIAL 00#21746-09999999
    COVER(SER. & UP)
    SERIAL 00#21746-09999999
  • 13
    80358M PULLEY
    PULLEY
  • 14
    10-84058M BOLT
    BOLT
  • 15
    13-82212M LOCKWASHER
    LOCKWASHER
  • 16
    11-82384M NUT
    NUT
  • 17
    13-82218M LOCKWASHER
    LOCKWASHER
  • 18
    47341A11 STARTER ROPE
    STARTER ROPE
  • 19
    33-82370M1 SPARK PLUG (NGK #B-6HS)
    SPARK PLUG (NGK #B-6HS)
  • 20
    85-63709A1 PROTECTOR
    PROTECTOR
  • 21
    85-815119M CAP (NOISE SUPPRESSOR)
    CAP (NOISE SUPPRESSOR)
  • 21
    80373M STOP
    STOP
  • 22
    10-91772M BOLT
    BOLT
  • 23
    13-82212M LOCKWASHER
    LOCKWASHER
  • 24
    12-82214M WASHER
    WASHER
  • 25
    NLA SCREW
    SCREW
  • 26
    NLA SPRING
    SPRING
  • 27
    23-82030M GROMMET
    GROMMET
