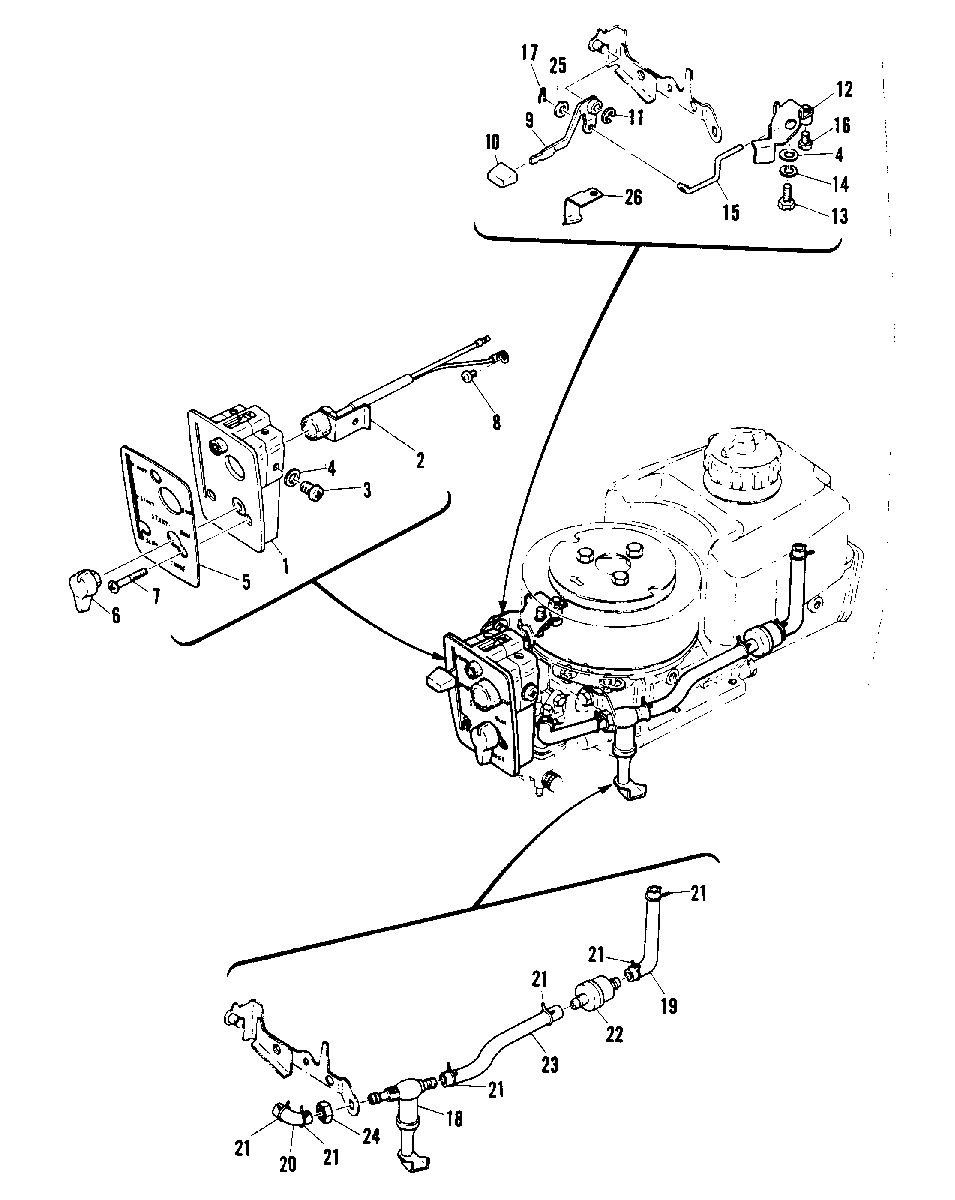

CHOKE-MAGNETO CONTROL AND FUEL COCK для Mariner - 2A 646-31100 AND BELOW
-
№АртикулНазвание
-
180351M INTAKE SILENCERINTAKE SILENCER
-
287-80418M STOP SWITCHSTOP SWITCH
-
310-96671M SCREWSCREW
-
412-82214M WASHERWASHER
-
537-80386M FRONT DECALFRONT DECAL
-
680371M CHOCK KNOBCHOCK KNOB
-
710-82529M SCREWSCREW
-
810-82512M SCREWSCREW
-
980374M MAGNETO CONTROL LEVERMAGNETO CONTROL LEVER
-
1080376M KNOBKNOB
-
1153-82327M SNAOP RINGSNAOP RING
-
12NLA ACCELERATOR ARMACCELERATOR ARM
-
1310-91772M BOLTBOLT
-
1413-82212M LOCKWASHERLOCKWASHER
-
1580375M MAGNETO CONTROL RODMAGNETO CONTROL ROD
-
1610-83523M SCREWSCREW
-
1718-82050M PINPIN
-
1835-80366M FUEL COCKFUEL COCK
-
1932-81324M FUEL LINEFUEL LINE
-
2032-82012M FUEL LINEFUEL LINE
-
2154-82047M CLAMPCLAMP
-
2235-80365M FUEL FILTERFUEL FILTER
-
2332-82012M FUEL LINEFUEL LINE
-
2411-82383M NUTNUT
-
2512-82933M WASHERWASHER
-
2680378M STOPSTOP
