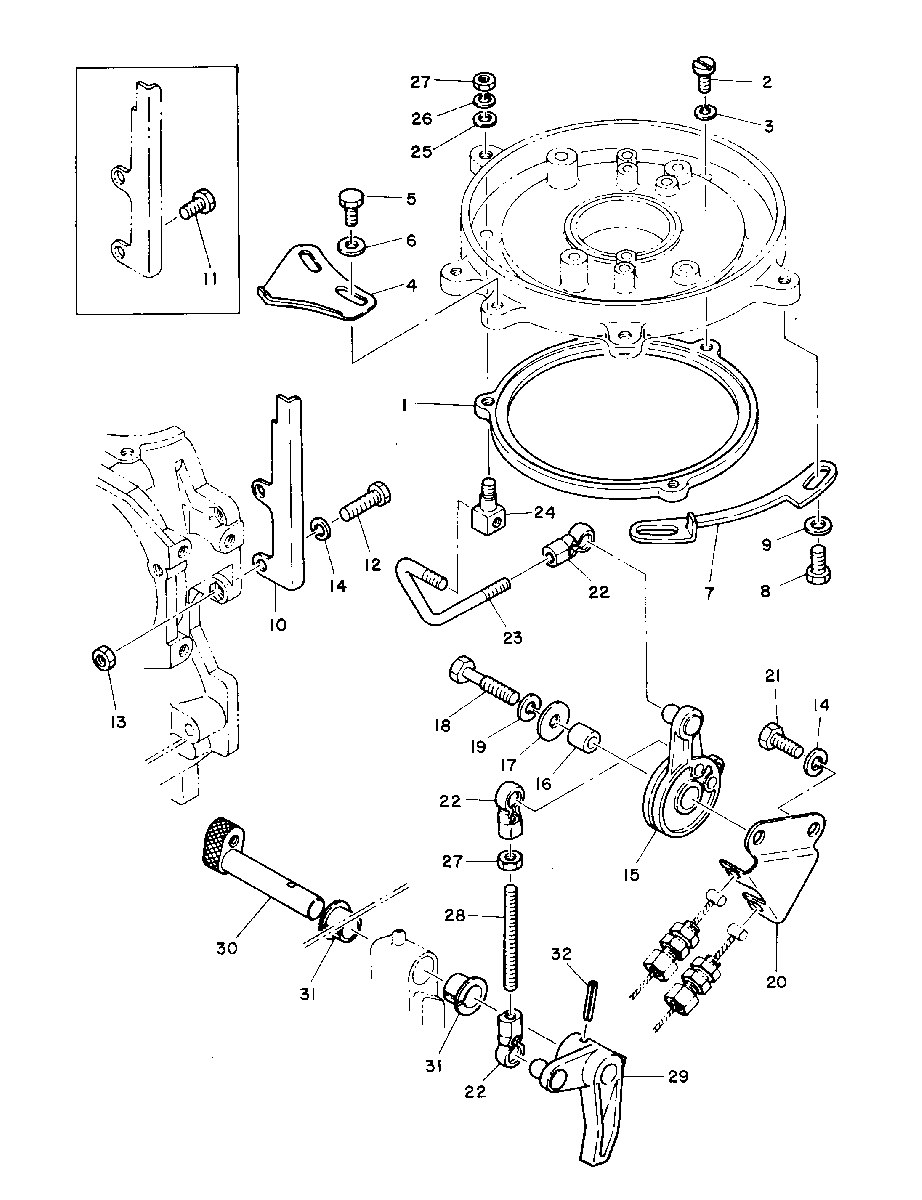

THROTTLE CONTROL для Mariner - 28 664-56820 AND BELOW

  • №
    Артикул
    Название
  • 1
    80626M RETAINER, MAGNETO BASE-OUTER
    SERIAL 00000000-00004940
    RETAINER, MAGNETO BASE-OUTER
    SERIAL 00000000-00004940
  • 1
    83210M RETAINER, MAGNETO BASE-OUTER
    SERIAL 00004606-09999999
    RETAINER, MAGNETO BASE-OUTER
    SERIAL 00004606-09999999
  • 2
    10-83523M SCREW, BASE ATTACHING
    SCREW, BASE ATTACHING
  • 3
    13-82186M LOCK WASHER, BASE SCREW
    LOCK WASHER, BASE SCREW
  • 4
    81575M CAM, THROTTLE ADVANCE
    CAM, THROTTLE ADVANCE
  • 5
    10-84313M BOLT, CAM ATTACHING
    BOLT, CAM ATTACHING
  • 6
    12-82211M WASHER, CAM BOLT
    WASHER, CAM BOLT
  • 7
    99951M STOP, MAGNETO BASE
    SERIAL 00000000-00004940
    STOP, MAGNETO BASE
    SERIAL 00000000-00004940
  • 7
    99951M STOP, MAGNETO BASE
    SERIAL 00004606-09999999
    STOP, MAGNETO BASE
    SERIAL 00004606-09999999
  • 8
    10-91772M BOLT, STOP ATTACHING
    BOLT, STOP ATTACHING
  • 9
    12-82213M WASHER
    WASHER
  • 10
    80628M STOP, MAGNETO BASE
    STOP, MAGNETO BASE
  • 11
    10-84088M BOLT, STOP ATTACHING
    SERIAL 00000000-00001725
    BOLT, STOP ATTACHING
    SERIAL 00000000-00001725
  • 12
    10-84058M BOLT
    SERIAL 00001726-09999999
    BOLT
    SERIAL 00001726-09999999
  • 13
    11-82389M NUT
    SERIAL 00001726-09999999
    NUT
    SERIAL 00001726-09999999
  • 14
    13-82212M WASHER
    WASHER
  • 15
    81581T CAM, MAGNETO CONTROL
    CAM, MAGNETO CONTROL
  • 16
    23-81927M BUSHING, CAM BOLT
    SERIAL 00000000-00004605
    BUSHING, CAM BOLT
    SERIAL 00000000-00004605
  • 16
    23-83310M COLLAR
    SERIAL 00004606-09999999
    COLLAR
    SERIAL 00004606-09999999
  • 17
    23-80630M WASHER, CAM BOLT
    WASHER, CAM BOLT
  • 18
    10-83285M BOLT, CAM ATTACHING
    BOLT, CAM ATTACHING
  • 19
    13-82212M LOCK WASHER
    LOCK WASHER
  • 20
    81563M BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 21
    10-826957M BOLT, BRACKET ATTACHING
    BOLT, BRACKET ATTACHING
  • 22
    16715M SWIVEL
    SWIVEL
  • 23
    81582M LINK ROD, MAGNETO CONTROL
    LINK ROD, MAGNETO CONTROL
  • 24
    80629M SWIVEL, LINK ROD
    SWIVEL, LINK ROD
  • 25
    12-81789M WASHER, SWIVEL NUT
    WASHER, SWIVEL NUT
  • 27
    11-82388M NUT, SWIVEL
    NUT, SWIVEL
  • 28
    16-81722M STUD, CAM TO SHAFT
    STUD, CAM TO SHAFT
  • 29
    81587M LEVER, THROTTLE SHAFT
    SERIAL 00000000-00004940
    LEVER, THROTTLE SHAFT
    SERIAL 00000000-00004940
  • 29
    92589M LEVER, THROTTLE SHAFT
    SERIAL 00004606-09999999
    LEVER, THROTTLE SHAFT
    SERIAL 00004606-09999999
  • 30
    81134M SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 31
    23-81946M BUSHING, THROTTLE SHAFT
    BUSHING, THROTTLE SHAFT
  • 32
    17-82156M PIN, ROLL-THROTTLE SHAFT
    PIN, ROLL-THROTTLE SHAFT
