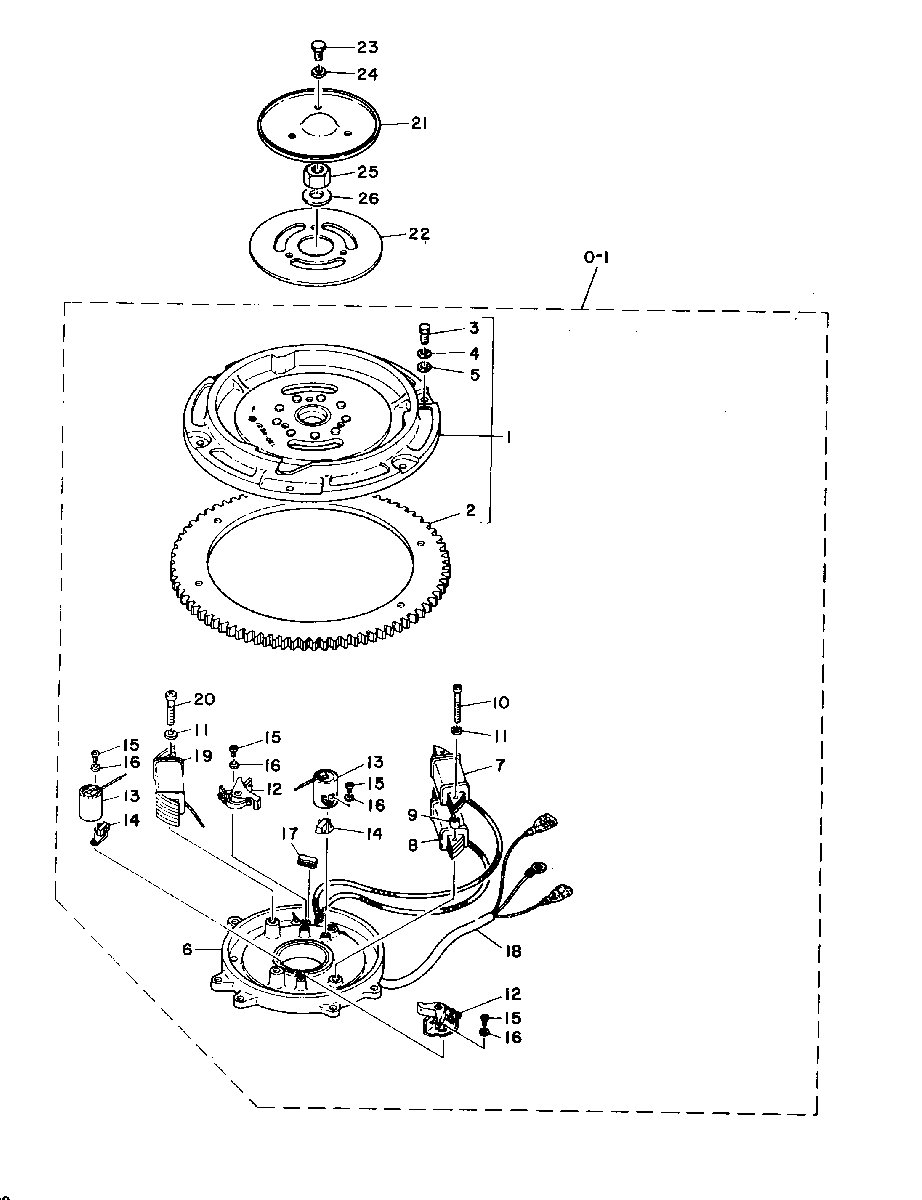

FLYWHEEL MAGNETO для Mariner - 28 664-56820 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    253-6799M FLYWHEEL MAGNETO ASS'Y (STD-MAN)
    FLYWHEEL MAGNETO ASS'Y (STD-MAN)
  • 0-1
    80683M FLYWHEEL MAGNETO ASS'Y (STD-ELEC)
    FLYWHEEL MAGNETO ASS'Y (STD-ELEC)
  • 1
    80687M FLYWHEEL ASS'Y
    FLYWHEEL ASS'Y
  • 2
    43-80711M RING GEAR
    RING GEAR
  • 3
    10-82404M BOLT
    BOLT
  • 4
    13-82212M WASHER
    WASHER
  • 5
    12-82213M WASHER
    WASHER
  • 6
    80684M BASE, MAGNETO
    BASE, MAGNETO
  • 7
    80551M PRIMARY IGNITION COIL, #1 CYL
    PRIMARY IGNITION COIL, #1 CYL
  • 8
    80552M PRIMARY IGNITION COIL, #2 CYL
    PRIMARY IGNITION COIL, #2 CYL
  • 9
    23-80555M SPACER, COIL
    SPACER, COIL
  • 10
    10-80556M SCREW, COIL ATTACHING
    SCREW, COIL ATTACHING
  • 11
    13-82186M LOCK WASHER, COIL SCREW
    LOCK WASHER, COIL SCREW
  • 12
    80930M BREAKER ASS'Y
    BREAKER ASS'Y
  • 13
    80558M CONDENSER
    CONDENSER
  • 14
    80025M LUBRICATOR
    LUBRICATOR
  • 15
    10-82500M SCREW
    SCREW
  • 16
    13-82206M LOCK WASHER
    LOCK WASHER
  • 17
    25-83316M GROMMET, MAGNETO BASE
    GROMMET, MAGNETO BASE
  • 18
    84-92594M LEAD WIRE
    LEAD WIRE
  • 19
    80553M LIGHTING COIL
    LIGHTING COIL
  • 20
    10-82522M SCREW
    SCREW
  • 20
    10-82522M SCREW
    SCREW
  • 21
    80688M COVER, FLYWHEEL
    COVER, FLYWHEEL
  • 22
    27-80690M GASKET, FLYWHEEL COVER
    GASKET, FLYWHEEL COVER
  • 23
    10-91772M BOLT, COVER ATTACHING
    BOLT, COVER ATTACHING
  • 24
    12-82213M WASHER, COVER BOLT
    WASHER, COVER BOLT
  • 25
    11-81770M NUT, FLYWHEEL ATTACHING
    NUT, FLYWHEEL ATTACHING
  • 26
    12-81814M WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
