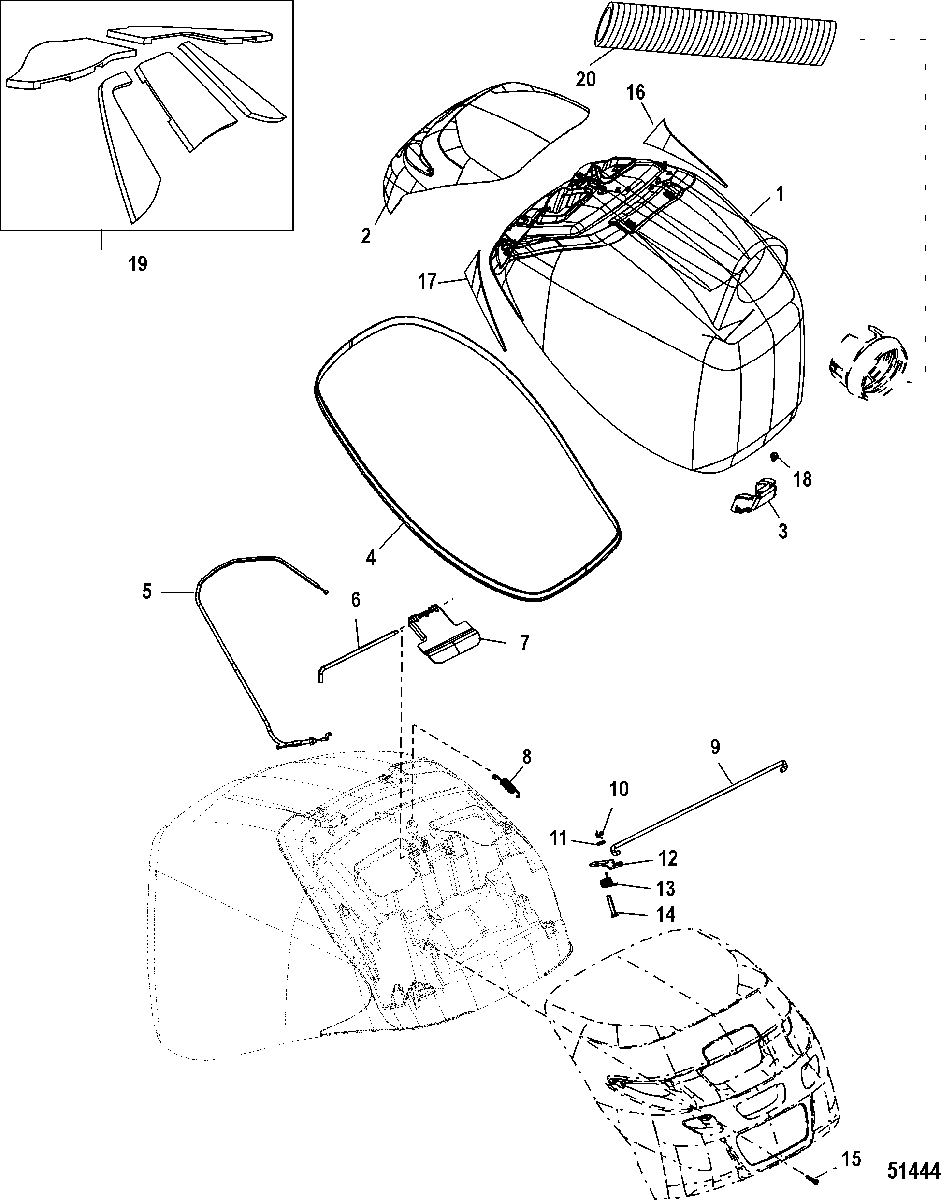

Top Cowl, CCT для Mariner - 275 VERADO (4-STROKE)(6 CYL.) 1B517434 THRU 2B144122

  • №
    Артикул
    Название
  • 1
    100-8M0074520 TOP COWL ASSEMBLY, CCT
    TOP COWL ASSEMBLY, CCT
  • 2
    NSS NOT SOLD SEPARATE, Air Dam Cap
    NOT SOLD SEPARATE, Air Dam Cap
  • 3
    888971 FRONT LATCH RECEIVER
    FRONT LATCH RECEIVER
  • 4
    NSS NOT SOLD SEPARATE, Seal
    NOT SOLD SEPARATE, Seal
  • 5
    8M0127199 CABLE
    CABLE
  • 6
    17-888959 PIN, Hinge
    PIN, Hinge
  • 7
    888956 LATCH, Hand Lever
    LATCH, Hand Lever
  • 8
    24-895373 SPRING
    SPRING
  • 9
    888955 LINK, Latch Connecting
    LINK, Latch Connecting
  • 10
    18-26953 COTTER PIN
    COTTER PIN
  • 11
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 12
    888952 LINKAGE ARM
    LINKAGE ARM
  • 13
    24-888953 SPRING
    SPRING
  • 14
    17-822417 PIN
    PIN
  • 15
    NSS NOT SOLD SEPARATE (#8-15 x 1.25)
    NOT SOLD SEPARATE (#8-15 x 1.25)
  • 16
    8M0033614 APPLIQUE, Port (Mercury)(Black)
    APPLIQUE, Port (Mercury)(Black)
  • 17
    8M0033615 APPLIQUE, Starboard (Mercury)(Black)
    APPLIQUE, Starboard (Mercury)(Black)
  • 18
    10-8M0103804 SCREW, (M6 x 12 MM) Stainless Steel
    SCREW, (M6 x 12 MM) Stainless Steel
  • 19
    8M4501639 SOUND BLANKET KIT, Cut to fit
    SOUND BLANKET KIT, Cut to fit
  • 20
    27-8M0072385 GASKET
    GASKET
  • 21
    8M0064952 ADAPTOR, Rigging
    ADAPTOR, Rigging
  • 22
    32-8M0068924 HOSE, 4 Inch
    HOSE, 4 Inch
  • -
    37-8M0024870 DECAL, (Mercury Verado)
    DECAL, (Mercury Verado)
  • -
    37-8M0043703 M-ICON, 66 mm, Black
    M-ICON, 66 mm, Black
  • -
    NSS NOT SOLD SEPARATE, Generic Decal Set
    NOT SOLD SEPARATE, Generic Decal Set
