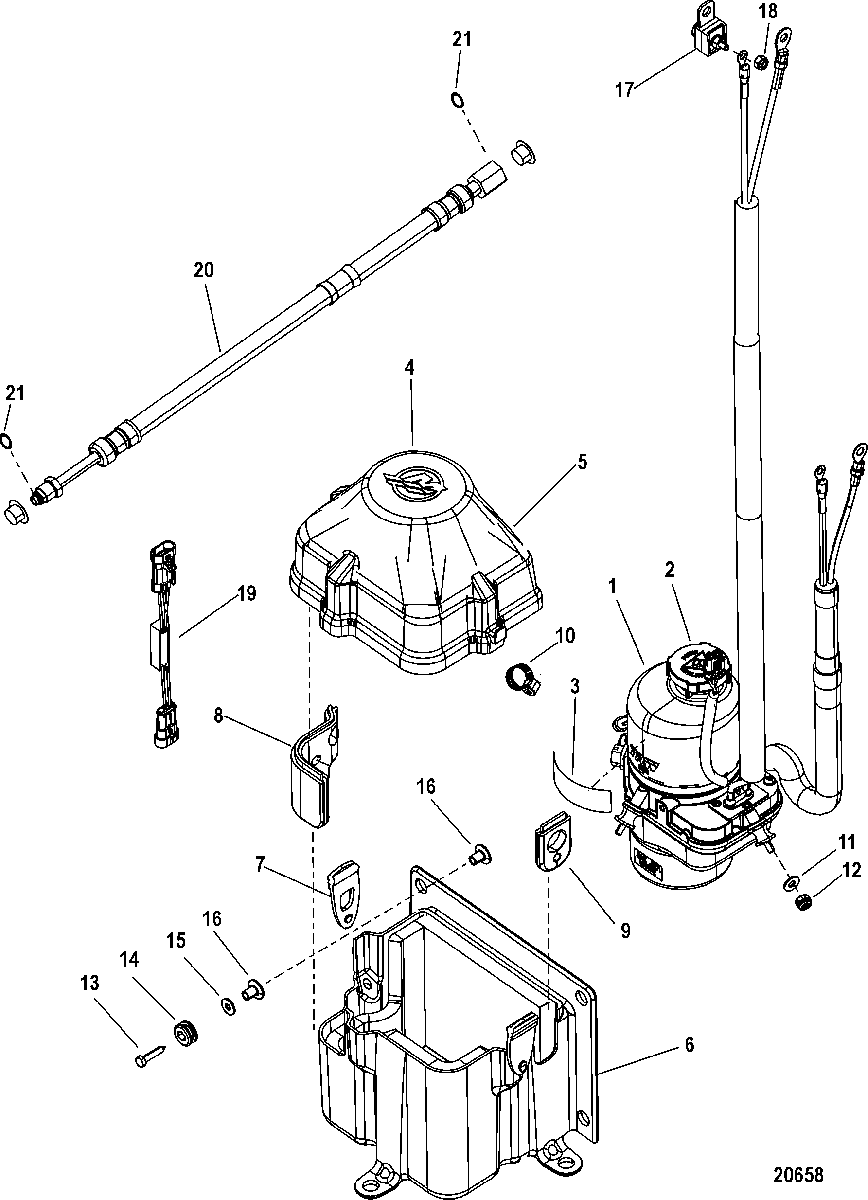

Pump Kit-Power Steering(8M0080200/8M0080201) для Mariner - 275 VERADO (4-STROKE)(6 CYL.) 1B517434 THRU 2B144122

  • №
    Артикул
    Название
  • -
    8M0131262 PUMP KIT, Power Steering (12 Feet)
    PUMP KIT, Power Steering (12 Feet)
  • -
    8M0131263 PUMP KIT, Power Steering (24 Feet)
    PUMP KIT, Power Steering (24 Feet)
  • 1
    NSS NOT SOLD SEPARATE, PUMP
    NOT SOLD SEPARATE, PUMP
  • 2
    892485003 CAP, Pump
    CAP, Pump
  • 3
    NSS NOT SOLD SEPARATE, DECAL, Fluid Type
    NOT SOLD SEPARATE, DECAL, Fluid Type
  • 4
    893364A05 ENCLOSURE ASSEMBLY, Complete-Power Steering Pump
    (Complete Enclosure Assembly fits all versions)
    ENCLOSURE ASSEMBLY, Complete-Power Steering Pump
    (Complete Enclosure Assembly fits all versions)
  • -
    893365A03 COVER ASSEMBLY, Top/Bottom, Power Steering Pump
    COVER ASSEMBLY, Top/Bottom, Power Steering Pump
  • 5
    893365T02 ENCLOSURE ASSEMBLY, Top, Power Steering Pump
    ENCLOSURE ASSEMBLY, Top, Power Steering Pump
  • 6
    8M0080707 ENCLOSURE ASSEMBLY, Bottom-Power Steering Pump
    ENCLOSURE ASSEMBLY, Bottom-Power Steering Pump
  • 7
    889531 STRAP
    STRAP
  • 8
    25-893368001 GROMMET
    GROMMET
  • 9
    25-893369 GROMMET
    GROMMET
  • 10
    54-815504105 CLAMP, Worm Gear (11-18 mm)
    CLAMP, Worm Gear (11-18 mm)
  • 11
    12-4002316 WASHER
    WASHER
  • 12
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 13
    10-895378 SCREW, (M6)
    SCREW, (M6)
  • 14
    25-895319 GROMMET
    GROMMET
  • 15
    12-4002316 WASHER
    WASHER
  • 16
    23-895320F1 BUSHING
    BUSHING
  • 17
    88-79023T92 FUSE ASSEMBLY, 90 Ampere
    FUSE ASSEMBLY, 90 Ampere
  • 18
    11-20184 NUT, (1/4-28X7/32)
    NUT, (1/4-28X7/32)
  • 19
    8M0026568 HARNESS ASSEMBLY, Signal Driver
    HARNESS ASSEMBLY, Signal Driver
  • 20
    32-897643A01 HOSE KIT, Dampening
    HOSE KIT, Dampening
  • 21
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
