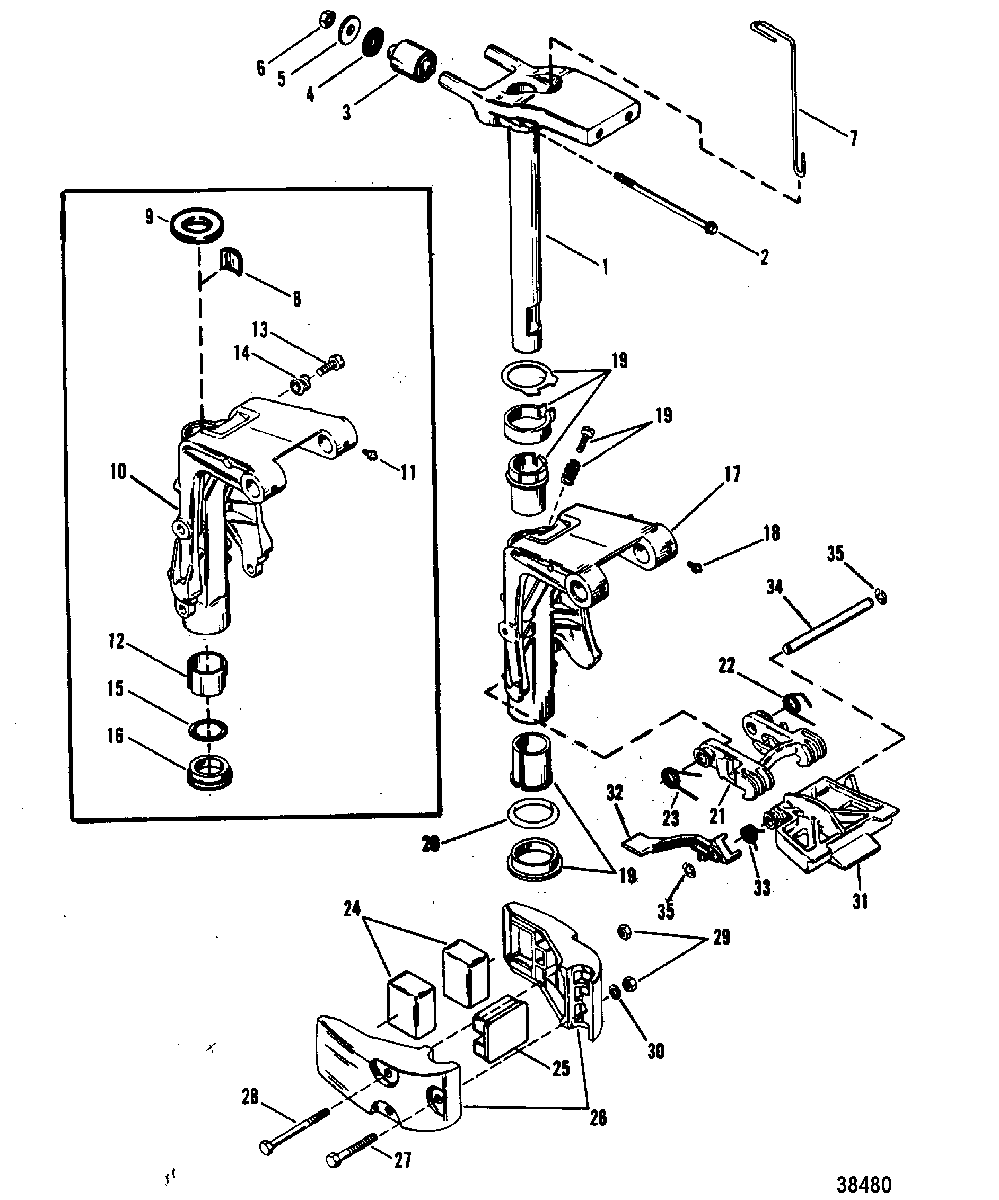

SWIVEL BRACKET ASSEMBLY для Mariner - 25XD 9415101 THRU 9507380
-
№АртикулНазвание
-
197544A5 SWIVEL TUBE ASSEMBLY, MercurySWIVEL TUBE ASSEMBLY, Mercury
-
197544A2 SWIVEL TUBE ASSEMBLY, MarinerSWIVEL TUBE ASSEMBLY, Mariner
-
210-125161 SCREW, (M8 x 133.35), UPPER MOUNTSCREW, (M8 x 133.35), UPPER MOUNT
-
314894 MOUNT, UPPERMOUNT, UPPER
-
412-85172 WASHER, RUBBER - UPPER MOUNT SCREWWASHER, RUBBER - UPPER MOUNT SCREW
-
512-43430 WASHER, UPPER MOUNT SCREWWASHER, UPPER MOUNT SCREW
-
611-400213 NUT, UPPER MOUNT SCREWNUT, UPPER MOUNT SCREW
-
785157 ROD, REVERSE HOOKROD, REVERSE HOOK
-
885173 PLATE, PILOT CONTROL
(DESIGN I)PLATE, PILOT CONTROL
(DESIGN I) -
912-85104 WASHER
(DESIGN I)WASHER
(DESIGN I) -
103415-822237A1 SWIVEL BRACKET
(MERCURY)(DESIGN I)SWIVEL BRACKET
(MERCURY)(DESIGN I) -
103415-822237A2 SWIVEL BRACKET
(MARINER)(DESIGN I)SWIVEL BRACKET
(MARINER)(DESIGN I) -
1122-74036 FITTING, Grease
(DESIGN I)FITTING, Grease
(DESIGN I) -
1223-95949 BUSHING, SWIVEL BRACKET
(DESIGN I)BUSHING, SWIVEL BRACKET
(DESIGN I) -
1310-91807 SCREW, PILOR CONTROL
(DESIGN I)SCREW, PILOR CONTROL
(DESIGN I) -
1424-96203 SPRING, PILOT CONTROL SCREW
(DESIGN I)SPRING, PILOT CONTROL SCREW
(DESIGN I) -
1525-86993 O-RING, SWIVEL TUBE
(DESIGN I)O-RING, SWIVEL TUBE
(DESIGN I) -
1623-85154 BUSHING, SWIVEL TUBE (LOWER)
(DESIGN I)BUSHING, SWIVEL TUBE (LOWER)
(DESIGN I) -
173415-822237A1 SWIVEL BRACKET
(MERCURY)(DESIGN II)SWIVEL BRACKET
(MERCURY)(DESIGN II) -
173415-822237A2 SWIVEL BRACKET
(MARINER)(DESIGN II)SWIVEL BRACKET
(MARINER)(DESIGN II) -
1822-74036 FITTING, Grease
(DESIGN II)FITTING, Grease
(DESIGN II) -
1954-11139A2 CLAMP ASSEMBLY, CO-PILOT
(DESIGN II)CLAMP ASSEMBLY, CO-PILOT
(DESIGN II) -
2025-86993 O-RING, SWIVEL TUBE
(DESIGN II)O-RING, SWIVEL TUBE
(DESIGN II) -
2198830A2 HOOK ASSEMBLY, REVERSE LOCKHOOK ASSEMBLY, REVERSE LOCK
-
2224-96018 SPRING, REVERSE HOOK - PORTSPRING, REVERSE HOOK - PORT
-
2324-97427 SPRING, REVERSE HOOK - STARBOARDSPRING, REVERSE HOOK - STARBOARD
-
2324-879894 SPRING, REVERSE HOOK -STARBOARDSPRING, REVERSE HOOK -STARBOARD
-
2485122001 MOUNT, LOWERMOUNT, LOWER
-
2585123001 BUMPER, FrontBUMPER, Front
-
2695068A1 COVER, LOWER MOUNT
MERCURYCOVER, LOWER MOUNT
MERCURY -
2695068A2 COVER, LOWER MOUNT
MARINERCOVER, LOWER MOUNT
MARINER -
2710-1994360 SCREW, LOWER MOUNT COVER (60MM)SCREW, LOWER MOUNT COVER (60MM)
-
2810-19943100 SCREW, LOWER MOUNT COVER (100MM)SCREW, LOWER MOUNT COVER (100MM)
-
2911-400213 NUT, (M8) Stainless Steel, LOWER MOUNT COVER SCREWNUT, (M8) Stainless Steel, LOWER MOUNT COVER SCREW
-
3012-36001 WASHER, LOWER MOUNT COVER SCREWWASHER, LOWER MOUNT COVER SCREW
-
3112756 BRACKET, TROLLBRACKET, TROLL
-
3212758 LEVER, CONTROLLEVER, CONTROL
-
3324-12754 SPRINGSPRING
-
3417-13195 PIN, TROLL BRACKETPIN, TROLL BRACKET
-
3553-13194 RING, RetainingRING, Retaining
-
-27-41499A88 GASKET SETGASKET SET
