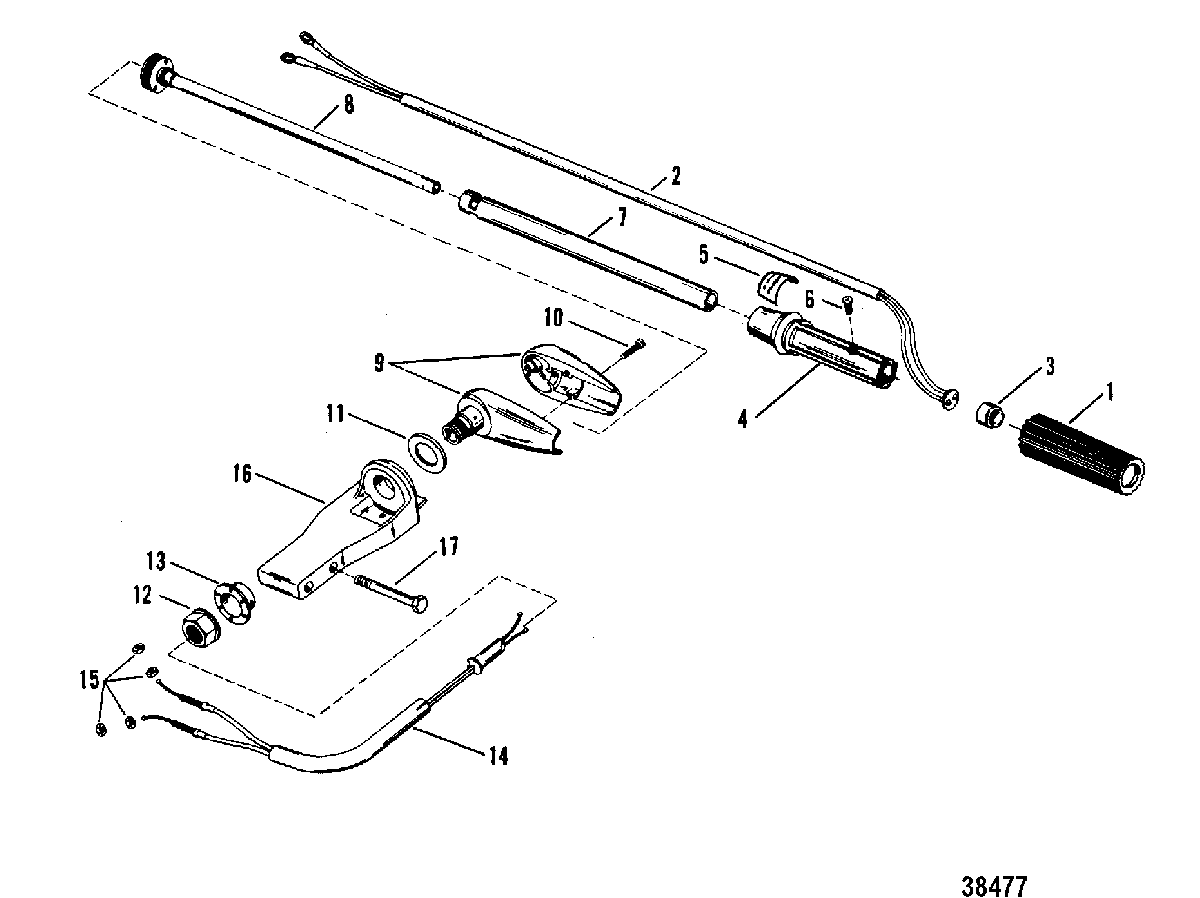

STEERING HANDLE ASSEMBLY(MERCURY) (MANUAL) для Mariner - 25XD 9415101 THRU 9507380

  • №
    Артикул
    Название
  • -
    94185A16 HANDLE ASSEMBLY, Steering
    HANDLE ASSEMBLY, Steering
  • 1
    99589003 GRIP, RUBBER
    GRIP, RUBBER
  • 2
    84-89591A5 HARNESS ASSEMBLY, STOP SWITCH
    HARNESS ASSEMBLY, STOP SWITCH
  • 3
    11099A1 BOOT ASSEMBLY, STOP SWITCH
    BOOT ASSEMBLY, STOP SWITCH
  • 4
    87-823609A10 HANDLE ASSEMBLY, THROTTLE
    HANDLE ASSEMBLY, THROTTLE
  • 5
    37-13239 DECAL, THROTTLE
    (APPLY ON HANDLE)
    DECAL, THROTTLE
    (APPLY ON HANDLE)
  • 5
    37-140121 DECAL, THROTTLE
    (APPLY ON TUBE)
    DECAL, THROTTLE
    (APPLY ON TUBE)
  • 6
    10-62568 SCREW, (#10-16 x .375), THROTTLE HANDLE
    SCREW, (#10-16 x .375), THROTTLE HANDLE
  • 7
    99333A2 TUBE ASSEMBLY, STEERING
    TUBE ASSEMBLY, STEERING
  • 8
    975501 TUBE ASSEMBLY
    TUBE ASSEMBLY
  • 9
    43447A3 BRACKEY ASSEMBLY
    BRACKEY ASSEMBLY
  • 10
    10-4005688 SCREW, (M4 x 20), BRACKET CLAMPING
    SCREW, (M4 x 20), BRACKET CLAMPING
  • 11
    12-57860 WASHER, NYLON - BRACKET
    WASHER, NYLON - BRACKET
  • 12
    11-82671327 NUT, (1.00-14), BRACKET
    NUT, (1.00-14), BRACKET
  • 13
    23-85973 BUSHING, BRACKET
    BUSHING, BRACKET
  • 14
    43242 CABLE ASSEMBLY, THROTTLE
    CABLE ASSEMBLY, THROTTLE
  • 15
    11-400212 NUT, (M6) Stainless Steel, THROTTLE CABLE
    NUT, (M6) Stainless Steel, THROTTLE CABLE
  • 16
    43447A3 BRACKET ASSEMBLY, STEERING
    BRACKET ASSEMBLY, STEERING
  • 17
    10-4000384 SCREW, (M10 x 80), BRACKET TOSWIVEL TUBE
    SCREW, (M10 x 80), BRACKET TOSWIVEL TUBE
