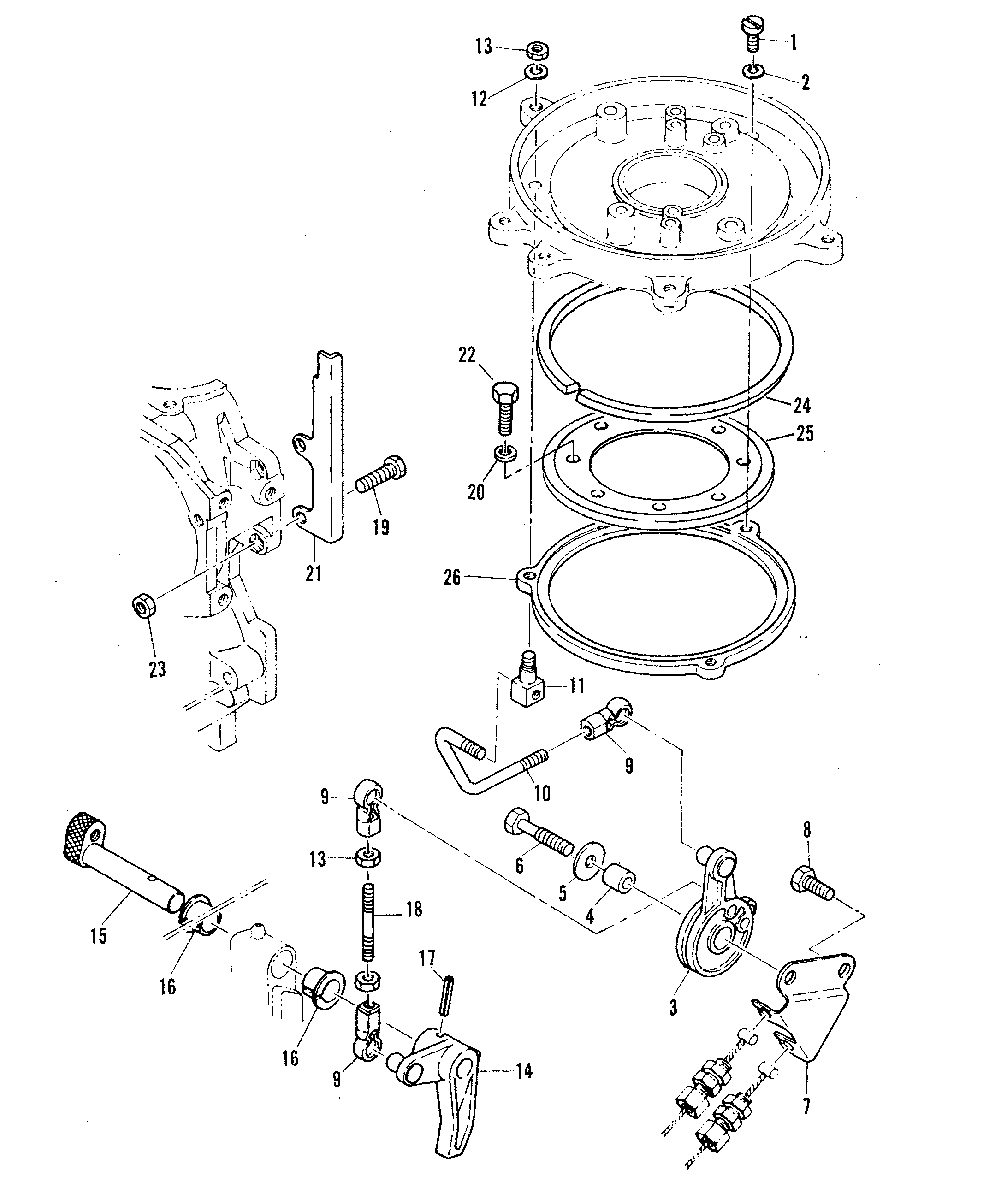

THROTTLE CONTROL для Mariner - 25C (THRU PROP. EXHAUST) 695-318174 AND UP

  • №
    Артикул
    Название
  • 1
    10-83523M SCREW, BASE ATTACHING
    SCREW, BASE ATTACHING
  • 2
    12-82211M WASHER
    WASHER
  • 3
    81581T CAM, MAGNETO CONTROL
    CAM, MAGNETO CONTROL
  • 4
    23-83310M COLLAR
    COLLAR
  • 5
    12-81969M WASHER
    WASHER
  • 6
    10-82405M BOLT
    BOLT
  • 7
    81563M BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 8
    10-91772M BOLT
    BOLT
  • 9
    16715M JOINT
    SERIAL 00029273-09999999
    JOINT
    SERIAL 00029273-09999999
  • 9
    16715M JOINT
    SERIAL 00000000-00029272
    JOINT
    SERIAL 00000000-00029272
  • 10
    81582M LINK ROD, MAGNETO CONTROL
    LINK ROD, MAGNETO CONTROL
  • 11
    80629M SWIVEL, LINK ROD
    SWIVEL, LINK ROD
  • 12
    12-81789M WASHER
    WASHER
  • 13
    11-82388M NUT
    NUT
  • 14
    91651M LEVER, THROTTLE SHAFT (MANAUL)
    SERIAL 00031675-09999999
    LEVER, THROTTLE SHAFT (MANAUL)
    SERIAL 00031675-09999999
  • 14
    92589M LEVER, THROTTLE SHAFT (ELECTRIC)
    (EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999
    LEVER, THROTTLE SHAFT (ELECTRIC)
    (EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999
  • 14
    91651M LEVER, THROTTLE SHAFT (ELECTRIC)
    (EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731
    LEVER, THROTTLE SHAFT (ELECTRIC)
    (EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731
  • 15
    81134M SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 16
    23-81946M BUSHING
    BUSHING
  • 17
    17-82156M PIN, ROLL
    PIN, ROLL
  • 18
    16-81722M LINK ROD
    LINK ROD
  • 19
    10-84058M BOLT
    BOLT
  • 20
    12-82214M WASHER
    WASHER
  • 21
    96378M STOP, MAGNETO BASE
    STOP, MAGNETO BASE
  • 22
    10-84058M BOLT
    BOLT
  • 23
    11-82389M NUT
    NUT
  • 24
    92572M PLATE, FRICTION
    PLATE, FRICTION
  • 25
    92573M RETAINER, MAGNETO BASE (UPPER)
    RETAINER, MAGNETO BASE (UPPER)
  • 26
    96379M RETAINER, MAGNETO BASE
    RETAINER, MAGNETO BASE
