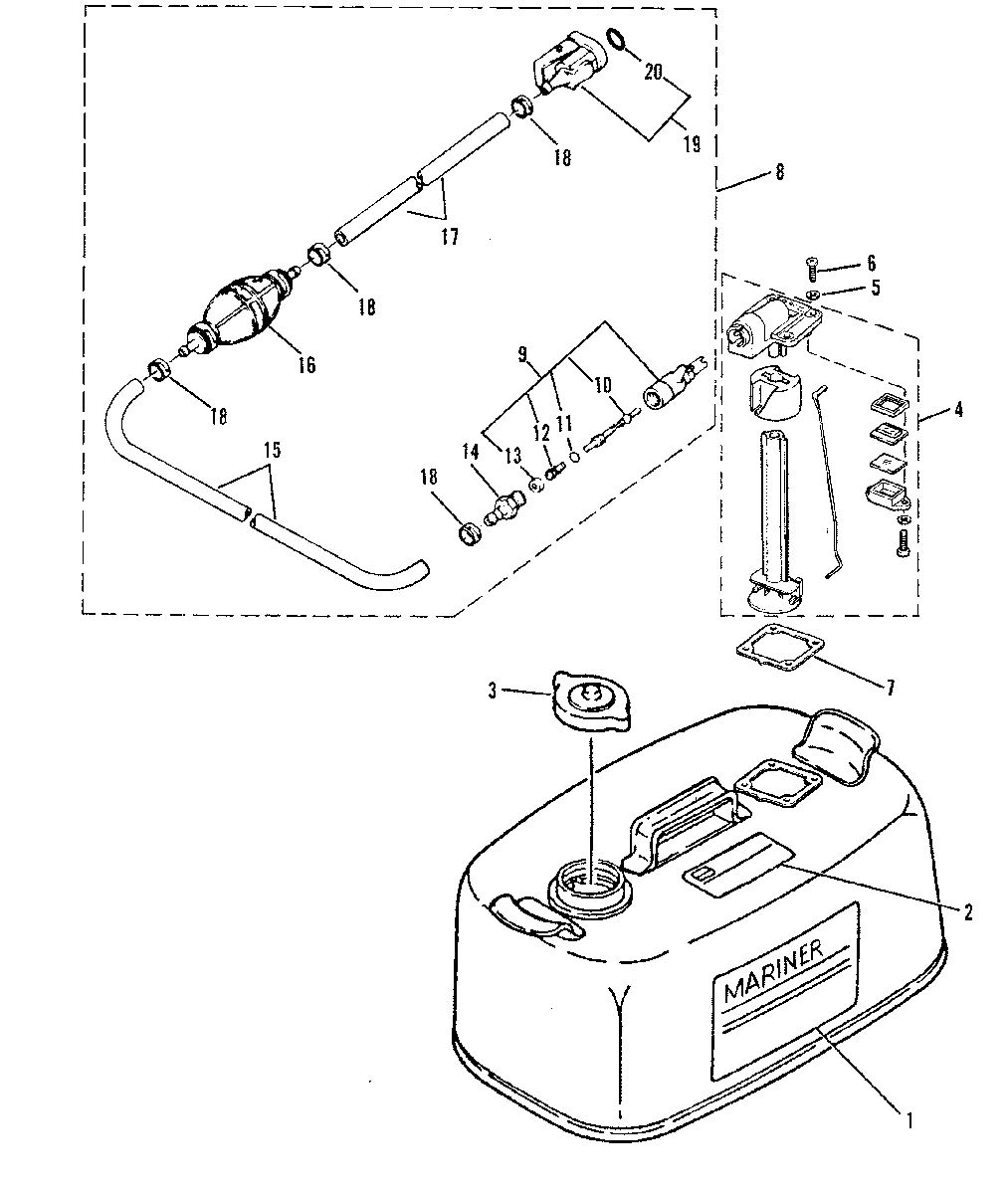

FUEL TANK AND FUEL LINE ASSEMBLY для Mariner - 25C (THRU PROP. EXHAUST) 695-318174 AND UP
-
№АртикулНазвание
-
137-14617M DECAL, SIDE (ENGLISH)DECAL, SIDE (ENGLISH)
-
137-95504M DECAL, SIDE (FRENCH)DECAL, SIDE (FRENCH)
-
237-95489M DECAL, TOP (ENGLISH)DECAL, TOP (ENGLISH)
-
237-95503M DECAL, TOP (FRENCH)DECAL, TOP (FRENCH)
-
336-18962M FUEL TANK CAP
SERIAL 00031675-09999999FUEL TANK CAP
SERIAL 00031675-09999999 -
336-18962M FUEL TANK CAP
SERIAL 00000000-00031674FUEL TANK CAP
SERIAL 00000000-00031674 -
495499M FUEL METER ASS'YFUEL METER ASS'Y
-
512-95501M SEALSEAL
-
610-95502M SCREWSCREW
-
727-95500M GASKET, FUEL METER ASS'YGASKET, FUEL METER ASS'Y
-
832-877681Q8 FUEL LINE ASS'Y
SERIAL 00003167-09999999FUEL LINE ASS'Y
SERIAL 00003167-09999999 -
832-877681Q8 FUEL LINE ASS'Y
SERIAL 00000000-00031674FUEL LINE ASS'Y
SERIAL 00000000-00031674 -
930185Q3 BAYONET BODY ASS'YBAYONET BODY ASS'Y
-
1030185Q3 STEM, BAYONET BODYSTEM, BAYONET BODY
-
1125-16524 O-RING, BAYONET BODY STEMO-RING, BAYONET BODY STEM
-
1224-30189 SPRING, BAYONET BODY ASS'YSPRING, BAYONET BODY ASS'Y
-
1330188 WASHER, CAPWASHER, CAP
-
1422-63187 FITTING, FUEL LINEFITTING, FUEL LINE
-
1532-16571M HOSE, CONNECTOR HOUSING TO BULB
SERIAL 00029273-09999999HOSE, CONNECTOR HOUSING TO BULB
SERIAL 00029273-09999999 -
1532-94727M HOSE, CONNECTOR HOUSING TO BULB
SERIAL 00026732-00029272HOSE, CONNECTOR HOUSING TO BULB
SERIAL 00026732-00029272 -
1532-94727M HOSE, CONNECTOR HOUSING TO BULB
(EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731HOSE, CONNECTOR HOUSING TO BULB
(EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731 -
1613330Q07 BULB, PRIMER
SERIAL 00031675-09999999BULB, PRIMER
SERIAL 00031675-09999999 -
1689396Q01 BULB, PRIMER
SERIAL 00029273-00031674BULB, PRIMER
SERIAL 00029273-00031674 -
1689396Q01 BULB, PRIMER
SERIAL 00000000-00029272BULB, PRIMER
SERIAL 00000000-00029272 -
1732-16571M HOSE, BULB TO ENGINE CONNECTOR
SERIAL 00029273-09999999HOSE, BULB TO ENGINE CONNECTOR
SERIAL 00029273-09999999 -
1732-94727M HOSE, BULB TO ENGINE CONNECTOR
SERIAL 00026732-00029272HOSE, BULB TO ENGINE CONNECTOR
SERIAL 00026732-00029272 -
1732-94727M HOSE, BULB TO ENGINE CONNECTOR
(EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731HOSE, BULB TO ENGINE CONNECTOR
(EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731 -
1854-16574M CLAMP, HOSE
SERIAL 00029273-09999999CLAMP, HOSE
SERIAL 00029273-09999999 -
1854-16725M CLAMP, HOSE
SERIAL 00000000-00029272CLAMP, HOSE
SERIAL 00000000-00029272 -
1930185Q3 FUEL CONNECTOR, ENGINE END
SERIAL 00031675-09999999FUEL CONNECTOR, ENGINE END
SERIAL 00031675-09999999 -
1922-13563Q3 FUEL CONNECTOR, ENGINE END
SERIAL 00029273-00031674FUEL CONNECTOR, ENGINE END
SERIAL 00029273-00031674 -
1922-14213Q FUEL CONNECTOR, ENGINE END
SERIAL 00000000-00029272FUEL CONNECTOR, ENGINE END
SERIAL 00000000-00029272 -
2025-82789M O-RING
SERIAL 00000000-00031674O-RING
SERIAL 00000000-00031674
