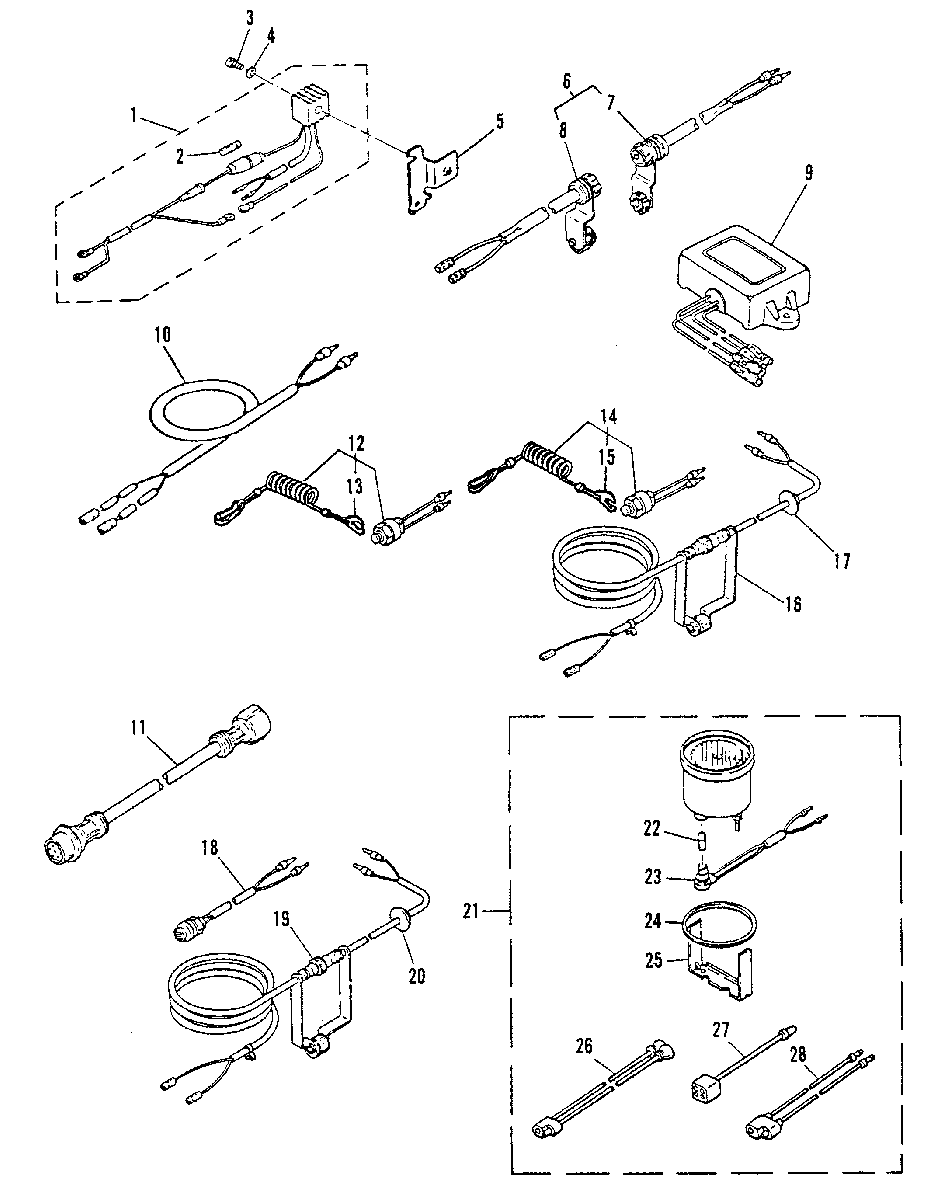

OPTIONAL PARTS для Mariner - 25C (THRU PROP. EXHAUST) 695-300101 THRU 318173

  • №
    Артикул
    Название
  • 1
    83-8M0060278 RECTIFIER ASS'Y
    RECTIFIER ASS'Y
  • 2
    88-81522M FUSE
    FUSE
  • 3
    10-83108M SCREW
    SCREW
  • 4
    12-82211M WASHER
    WASHER
  • 5
    92603M PLATE, RECTIFIER MOUNTING
    PLATE, RECTIFIER MOUNTING
  • 6
    84-84124M CONNECTOR ASS'Y, 2 WIRE
    CONNECTOR ASS'Y, 2 WIRE
  • 7
    84-99051M CONNECTOR
    CONNECTOR
  • 8
    84-99052M CONNECTOR
    CONNECTOR
  • 9
    84125T VOLTAGE REGULATOR ASS'Y
    VOLTAGE REGULATOR ASS'Y
  • 10
    84959M EXTENSION (2M) FOR STOP SWITCH
    (SERIAL 00019911-09999999)
    EXTENSION (2M) FOR STOP SWITCH
    (SERIAL 00019911-09999999)
  • 10
    84-83645M EXTENSION (2M) FOR STOP SWITCH
    (SERIAL 00000000-00019910)
    EXTENSION (2M) FOR STOP SWITCH
    (SERIAL 00000000-00019910)
  • 11
    84960M EXTENSION (2M) FOR SWITCH PANEL
    EXTENSION (2M) FOR SWITCH PANEL
  • 12
    87-97774M KILL SWITCH, MOTOR MOUNT
    (SERIAL 00009376-00019910)
    KILL SWITCH, MOTOR MOUNT
    (SERIAL 00009376-00019910)
  • 12
    87-97765M KILL SWITCH, MOTOR MOUNT
    (SERIAL 00000000-00009375)
    KILL SWITCH, MOTOR MOUNT
    (SERIAL 00000000-00009375)
  • 13
    97756M STOPPER
    (SERIAL 00009376-00019910)
    STOPPER
    (SERIAL 00009376-00019910)
  • 13
    97756M STOPPER
    (SERIAL 00000000-00009375)
    STOPPER
    (SERIAL 00000000-00009375)
  • 14
    87-97765M KILL SWITCH, REMOTE (5M)
    (SERIAL 00009376-09999999)
    KILL SWITCH, REMOTE (5M)
    (SERIAL 00009376-09999999)
  • 14
    87-97765M KILL SWITCH, REMOTE (5M)
    (SERIAL 00000000-00009375)
    KILL SWITCH, REMOTE (5M)
    (SERIAL 00000000-00009375)
  • 15
    97756M STOPPER
    (SERIAL 00009376-09999999)
    STOPPER
    (SERIAL 00009376-09999999)
  • 15
    97756M STOPPER
    (SERIAL 00000000-00009375)
    STOPPER
    (SERIAL 00000000-00009375)
  • 16
    84964M EXTENSION (5M)
    (SERIAL 00019911-09999999)
    EXTENSION (5M)
    (SERIAL 00019911-09999999)
  • 16
    92613M EXTENSION (5M)
    (SERIAL 00000000-00019910)
    EXTENSION (5M)
    (SERIAL 00000000-00019910)
  • 17
    25-84967M GROMMET
    (SERIAL 00009376-09999999)
    GROMMET
    (SERIAL 00009376-09999999)
  • 17
    25-826981M GROMMET
    (SERIAL 00000000-00009375)
    GROMMET
    (SERIAL 00000000-00009375)
  • 18
    87-97754M STOP SWITCH, REMOTE (5M)
    (SERIAL 00009376-09999999)
    STOP SWITCH, REMOTE (5M)
    (SERIAL 00009376-09999999)
  • 18
    87-97754M STOP SWITCH, REMOTE (5M)
    (SERIAL 00000000-000093750
    STOP SWITCH, REMOTE (5M)
    (SERIAL 00000000-000093750
  • 19
    84964M EXTENSION (5M)
    (SERIAL 00009376-09999999)
    EXTENSION (5M)
    (SERIAL 00009376-09999999)
  • 19
    92613M EXTENSION
    (SERIAL 00000000-00009375)
    EXTENSION
    (SERIAL 00000000-00009375)
  • 20
    25-84967M GROMMET
    GROMMET
  • 21
    79-43984A1 TACHOMETER KIT
    TACHOMETER KIT
  • 22
    88-99055M BULB
    BULB
  • 23
    99056A1 SOCKET, BULB
    SOCKET, BULB
  • 24
    99057M DAMPER
    DAMPER
  • 25
    99058M PLATE
    PLATE
  • 26
    84-99059M WIRE
    WIRE
  • 27
    84-84353M CONNECTOR
    CONNECTOR
  • 28
    84-84352M EXTENSION, LEAD
    EXTENSION, LEAD
