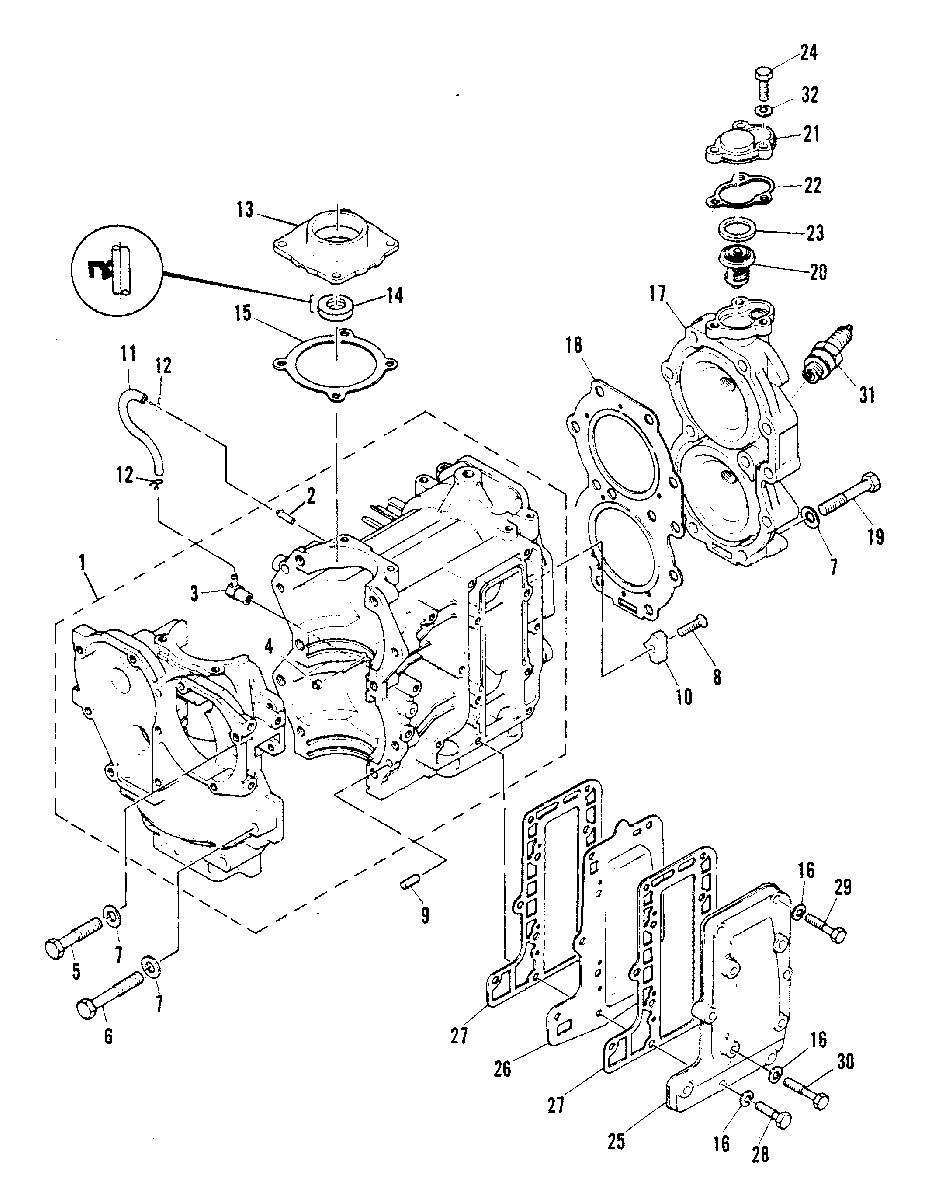

CRANKCASE AND CYLINDER HEAD для Mariner - 25C (THRU PROP. EXHAUST) 695-300101 THRU 318173

  • №
    Артикул
    Название
  • 1
    870-9369M CRANKCASE ASS'Y
    (SERIAL 00006086-09999999)
    CRANKCASE ASS'Y
    (SERIAL 00006086-09999999)
  • 1
    870-7871M CRANKCASE ASS'Y
    (SERIAL 00000000-00006085)
    CRANKCASE ASS'Y
    (SERIAL 00000000-00006085)
  • 2
    22-80122M FITTING, CRANKCASE DRAIN
    FITTING, CRANKCASE DRAIN
  • 3
    21-80727M ,CHECK VALVE ASS'Y
    ,CHECK VALVE ASS'Y
  • 4
    21-80107M VALVE, CHECK
    VALVE, CHECK
  • 5
    10-41885M BOLT, W/WASHER
    (SERIAL 00009376-09999999)
    BOLT, W/WASHER
    (SERIAL 00009376-09999999)
  • 5
    10-82406M BOLT, W/WASHER
    (SERIAL 00000000-00009375)
    BOLT, W/WASHER
    (SERIAL 00000000-00009375)
  • 6
    10-8M0101617 BOLT, W/WASHER
    (SERIAL 00009376-09999999)
    BOLT, W/WASHER
    (SERIAL 00009376-09999999)
  • 6
    10-82408M BOLT
    (SERIAL 00000000-00009375)
    BOLT
    (SERIAL 00000000-00009375)
  • 7
    12-80564M WASHER
    (SERIAL 00000000-00009375)
    WASHER
    (SERIAL 00000000-00009375)
  • 8
    10-95209M SCREW
    (SERIAL 00019911-09999999)
    SCREW
    (SERIAL 00019911-09999999)
  • 8
    10-95209M SCREW
    SCREW
  • 9
    17-82364M PIN, DOWEL
    PIN, DOWEL
  • 10
    97-84732M ANODE
    ANODE
  • 11
    32-811045M HOSE
    HOSE
  • 12
    54-82046M CLAMP, HOSE
    CLAMP, HOSE
  • 13
    81564M HOUSING, OIL SEAL (UPPER)
    HOUSING, OIL SEAL (UPPER)
  • 14
    26-82245M OIL SEAL, CRANKSHAFT (UPPER)
    OIL SEAL, CRANKSHAFT (UPPER)
  • 15
    27-81565M GASKET, OIL SEAL HOUSING
    GASKET, OIL SEAL HOUSING
  • 16
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 17
    968-8400M HEAD, CYLINDER
    HEAD, CYLINDER
  • 18
    27-81555 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 19
    10-41885M BOLT, W/WASHER
    (SERIAL 00009376-09999999)
    BOLT, W/WASHER
    (SERIAL 00009376-09999999)
  • 19
    10-82407M BOLT
    (SERIAL 00000000-00009375)
    BOLT
    (SERIAL 00000000-00009375)
  • 20
    99080M THERMOSTAT
    THERMOSTAT
  • 21
    81030M COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 22
    27-81031 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 23
    12-81835M WASHER
    WASHER
  • 24
    10-84058M BOLT
    BOLT
  • 25
    81569M COVER, EXHAUST-OUTER
    COVER, EXHAUST-OUTER
  • 26
    81568M COVER, EXHAUST-INNER
    COVER, EXHAUST-INNER
  • 27
    27-81570 GASKET, EXHAUST COVER
    GASKET, EXHAUST COVER
  • 28
    10-82405M BOLT
    (SERIAL 00019911-09999999)
    BOLT
    (SERIAL 00019911-09999999)
  • 28
    10-82405M BOLT
    (SERIAL 00000000-00019910)
    BOLT
    (SERIAL 00000000-00019910)
  • 29
    10-83285M BOLT
    (SERIAL 00009376-09999999)
    BOLT
    (SERIAL 00009376-09999999)
  • 29
    10-83285M BOLT
    (SERIAL 00000000-00009375)
    BOLT
    (SERIAL 00000000-00009375)
  • 30
    10-83285M BOLT
    BOLT
  • 31
    33-8M0114739 SPARK PLUG, B-7HS (NGK)
    SPARK PLUG, B-7HS (NGK)
  • 32
    13-82212M WASHER
    (SERIAL 00019911-09999999)
    WASHER
    (SERIAL 00019911-09999999)
  • 32
    18969M POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
    (SERIAL 00006086-09999999)
    POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
    (SERIAL 00006086-09999999)
  • 32
    92574M POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
    (SERIAL 00000000-00006085)
    POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
    (SERIAL 00000000-00006085)
  • -
    27-92575M GASKET SET, POWERHEAD
    GASKET SET, POWERHEAD
