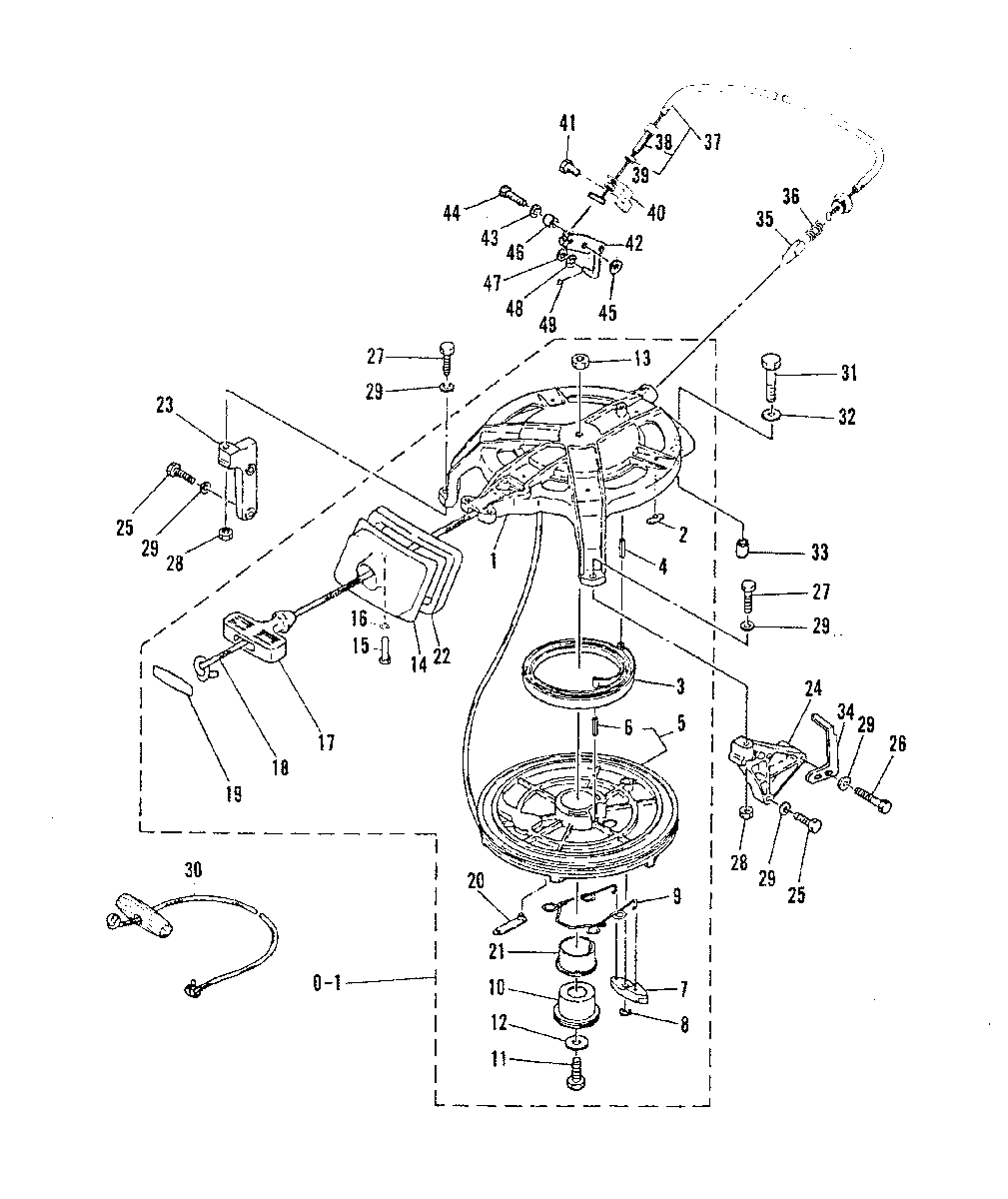

RECOIL STARTER для Mariner - 25C (THRU PROP. EXHAUST) 695-023896 AND UP

  • №
    Артикул
    Название
  • 0-1
    50-18967M STARTER ASS'Y
    SERIAL 00031675-09999999
    STARTER ASS'Y
    SERIAL 00031675-09999999
  • 0-1
    50-92597M STARTER ASS'Y
    SERIAL 00000000-00031674
    STARTER ASS'Y
    SERIAL 00000000-00031674
  • 1
    2169-811912M HOUSING, STARTER
    HOUSING, STARTER
  • 2
    23-83585M PLUG, STARTER HOUSING
    PLUG, STARTER HOUSING
  • 3
    24-83588M SPRING, STARTER
    SPRING, STARTER
  • 4
    17-82157M PIN
    PIN
  • 5
    50-83587M STARTER SHEAVE
    STARTER SHEAVE
  • 6
    17-82157M PIN, ROLL
    PIN, ROLL
  • 7
    84894M PAWL, STARTER
    PAWL, STARTER
  • 8
    53-84895M SNAP RING
    SNAP RING
  • 9
    24-83591M SPRING, PAWL
    SPRING, PAWL
  • 10
    23-83590M SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 11
    10-84342M BOLT
    BOLT
  • 12
    12-81801M WASHER
    WASHER
  • 13
    11-82382M NUT
    NUT
  • 14
    80600M GUIDE, STARTER ROPE
    GUIDE, STARTER ROPE
  • 15
    10-826957M BOLT
    BOLT
  • 16
    12-82214M WASHER
    WASHER
  • 17
    814491A1 HANDLE, STARTER
    SERIAL 00000000-09999999
    HANDLE, STARTER
    SERIAL 00000000-09999999
  • 17
    814491A1 HANDLE, STARTER
    SERIAL 00031674-09999999
    HANDLE, STARTER
    SERIAL 00031674-09999999
  • 18
    50-12066Q10 STARTER ROPE
    STARTER ROPE
  • 19
    18929M COVER
    SERIAL 00000000-09999999
    COVER
    SERIAL 00000000-09999999
  • 19
    814491A1 COVER
    SERIAL 00031674-09999999
    COVER
    SERIAL 00031674-09999999
  • 20
    54-84893M CLIP
    CLIP
  • 21
    23-83589M BUSHING
    BUSHING
  • 22
    93107M SEAL
    SEAL
  • 23
    811135M BRACKET, STARTER HOUSING (STARBOARD)
    (EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999
    BRACKET, STARTER HOUSING (STARBOARD)
    (EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999
  • 23
    84465M BRACKET, STARTER HOUSING (STARBOARD)
    (EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731
    BRACKET, STARTER HOUSING (STARBOARD)
    (EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731
  • 24
    84466M BRACKET, STARTER HOUSING (PORT - MANUAL)
    BRACKET, STARTER HOUSING (PORT - MANUAL)
  • 25
    10-82405M BOLT
    BOLT
  • 26
    10-84657M BOLT
    BOLT
  • 27
    10-83285M BOLT
    BOLT
  • 28
    11-82389M NUT
    NUT
  • 29
    12-82214M WASHER
    WASHER
  • 30
    47341A11 EMERGENCY STARTER ROPE
    EMERGENCY STARTER ROPE
  • 31
    10-82442M BOLT
    BOLT
  • 32
    12-82217M WASHER
    WASHER
  • 33
    17-14229M PIN, DOWEL
    PIN, DOWEL
  • 34
    96341M PLATE, TIMING
    PLATE, TIMING
  • 35
    81106M PLUNGER, STARTER LOCKOUT
    PLUNGER, STARTER LOCKOUT
  • 36
    24-82079M SPRING, STARTER LOCKOUT
    SPRING, STARTER LOCKOUT
  • 37
    81108M CABLE, STARTER LOCKOUT
    CABLE, STARTER LOCKOUT
  • 38
    10-81746M BOLT
    BOLT
  • 39
    11-82389M NUT
    NUT
  • 40
    92599M BRACKET, STARTER LOCKOUT (MANUAL)
    BRACKET, STARTER LOCKOUT (MANUAL)
  • 41
    10-84088M BOLT
    BOLT
  • 42
    81107M LINK, STARTER STOP
    FOR ELECTRIC MODELS ONLY
    LINK, STARTER STOP
    FOR ELECTRIC MODELS ONLY
  • 43
    13-81867M WASHER, WAVE
    FOR ELECTRIC MODELS ONLY
    WASHER, WAVE
    FOR ELECTRIC MODELS ONLY
  • 44
    10-84058M BOLT
    FOR ELECTRIC MODELS ONLY
    BOLT
    FOR ELECTRIC MODELS ONLY
  • 45
    12-82214M WASHER
    FOR ELECTRIC MODELS ONLY
    WASHER
    FOR ELECTRIC MODELS ONLY
  • 46
    23-82929M COLLAR
    FOR ELECTRIC MODELS ONLY
    COLLAR
    FOR ELECTRIC MODELS ONLY
  • 47
    12-82211M WASHER
    FOR ELECTRIC MODELS ONLY
    WASHER
    FOR ELECTRIC MODELS ONLY
  • 48
    13-81865M WASHER, WAVE
    FOR ELECTRIC MODELS ONLY
    WASHER, WAVE
    FOR ELECTRIC MODELS ONLY
  • 49
    18-82125M PIN, COTTER
    FOR ELECTRIC MODELS ONLY
    PIN, COTTER
    FOR ELECTRIC MODELS ONLY
