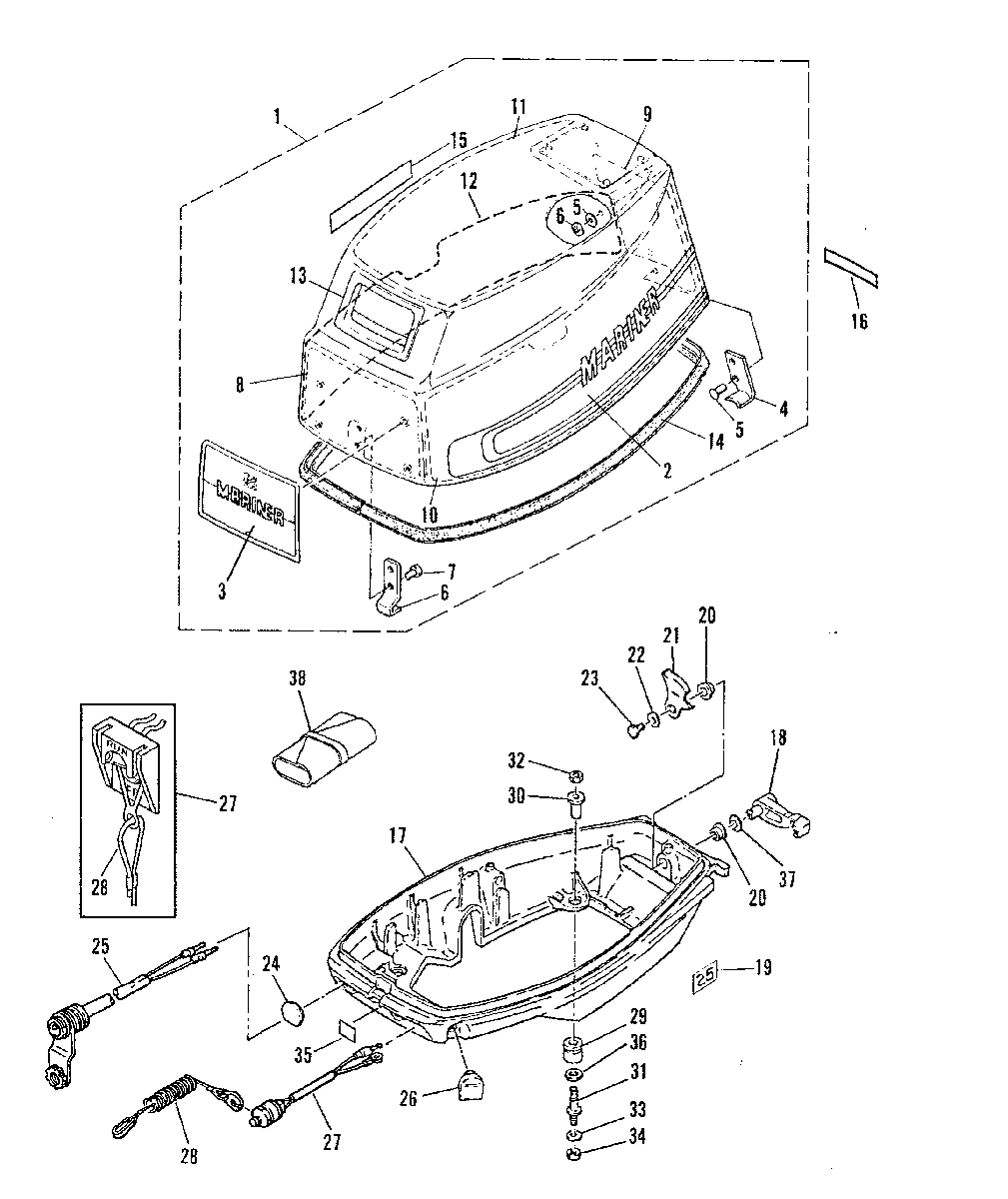

COWLING для Mariner - 25C (THRU PROP. EXHAUST) 695-023896 AND UP

  • №
    Артикул
    Название
  • 1
    2168-9387M TOP COWL ASS'Y
    SERIAL 00031675-09999999
    TOP COWL ASS'Y
    SERIAL 00031675-09999999
  • 1
    2168-9387M TOP COWL ASS'Y
    SERIAL 00000000-00031674
    TOP COWL ASS'Y
    SERIAL 00000000-00031674
  • 2
    37-95670M DECAL, SIDE AND REAR SET
    DECAL, SIDE AND REAR SET
  • 3
    37-95641M EMBLEM, FRONT
    EMBLEM, FRONT
  • 4
    83212M HOLDER, CLAMP BAND
    HOLDER, CLAMP BAND
  • 5
    17-84903M RIVET
    RIVET
  • 6
    83137M HOOK
    HOOK
  • 7
    17-83140M RIVET
    RIVET
  • 8
    84323M SOUND BLANKET, FRONT
    SERIAL 00000000-00029272
    SOUND BLANKET, FRONT
    SERIAL 00000000-00029272
  • 9
    84323M SOUND BLANKET, REAR
    SERIAL 00000000-00029272
    SOUND BLANKET, REAR
    SERIAL 00000000-00029272
  • 10
    83125M SOUND BLANKET, STARBOARD
    SERIAL 00000000-00029272
    SOUND BLANKET, STARBOARD
    SERIAL 00000000-00029272
  • 11
    83232M SOUND BLANKET, TOP
    SERIAL 00000000-00029272
    SOUND BLANKET, TOP
    SERIAL 00000000-00029272
  • 12
    83125M SOUND BLANKET, PORT
    SERIAL 00000000-00029272
    SOUND BLANKET, PORT
    SERIAL 00000000-00029272
  • 13
    80601M SEAL, RUBBER (STARTER)
    SEAL, RUBBER (STARTER)
  • 14
    84901M SEAL, TOP COWL
    SEAL, TOP COWL
  • 15
    37-81202M INDICATOR, SHIFT
    INDICATOR, SHIFT
  • 16
    37-95547M DECAL, ELECTRIC MODELS
    DECAL, ELECTRIC MODELS
  • 17
    2168-9349M BOTTOM COWL
    BOTTOM COWL
  • 18
    84913M LEVER, CLOWL CLAMP
    LEVER, CLOWL CLAMP
  • 19
    37-82900M GRAPHIC, SIDE (HP)
    GRAPHIC, SIDE (HP)
  • 20
    23-81949M BUSHING, COWL CLAMP LEVER
    BUSHING, COWL CLAMP LEVER
  • 21
    54-84914M CLAMP, COWL
    CLAMP, COWL
  • 22
    12-81794M WASHER
    WASHER
  • 23
    10-84088M BOLT
    BOLT
  • 24
    25-83988M GROMMET, BOTTOM COWL (MANUAL)
    SERIAL 00000000-00029272
    GROMMET, BOTTOM COWL (MANUAL)
    SERIAL 00000000-00029272
  • 25
    84-99051M EXTENSION, LEAD WIRE
    SERIAL 00029273-09999999
    EXTENSION, LEAD WIRE
    SERIAL 00029273-09999999
  • 26
    25-826981M GROMMET, BOTTOM COWL
    GROMMET, BOTTOM COWL
  • 27
    87-14222M LANYARD IGNITION SWITCH ASS'Y
    (EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999
    LANYARD IGNITION SWITCH ASS'Y
    (EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999
  • 27
    87-93102M STOP SWITCH (MANUAL)
    (EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731
    STOP SWITCH (MANUAL)
    (EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731
  • 28
    97756M STOPPER
    SERIAL 00029273-09999999
    STOPPER
    SERIAL 00029273-09999999
  • 29
    25-84910M GROMMET
    GROMMET
  • 30
    23-84911M COLLAR
    COLLAR
  • 31
    16-95505M STUD, SPECIAL
    (EL-556544 EUL-650246) AND ABOVE SERIAL 00254329-09999999
    STUD, SPECIAL
    (EL-556544 EUL-650246) AND ABOVE SERIAL 00254329-09999999
  • 31
    16-95505M STUD, SPECIAL
    (EL-556543 EUL-650246) AND BELOW SERIAL 00000000-00026731
    STUD, SPECIAL
    (EL-556543 EUL-650246) AND BELOW SERIAL 00000000-00026731
  • 32
    11-82383M NUT
    NUT
  • 33
    12-82217M WASHER
    WASHER
  • 34
    11-82383M NUT
    NUT
  • 35
    37-95570M DECAL
    (EL-556543 EUL-650245) NAD BELOW SERIAL 00000000-00026731
    DECAL
    (EL-556543 EUL-650245) NAD BELOW SERIAL 00000000-00026731
  • 36
    12-95507M WASHER
    (EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999
    WASHER
    (EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999
  • 37
    13-81869M WASHER, WAVE
    WASHER, WAVE
  • 38
    91-803581 TOOL KIT
    TOOL KIT
