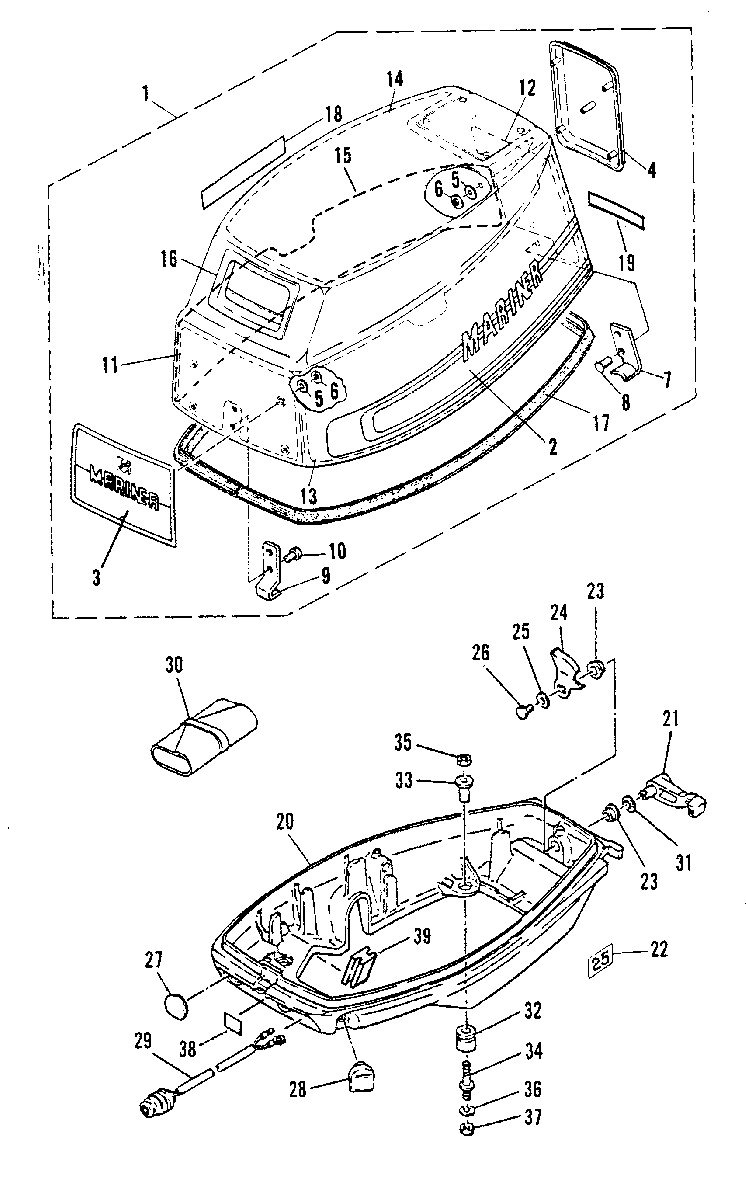

COWLING для Mariner - 25C (THRU PROP. EXHAUST) 695-000101 THRU 023895

  • №
    Артикул
    Название
  • 1
    2168-9387M TOP COWL ASS'Y
    (SERIAL 00009375-09999999)
    TOP COWL ASS'Y
    (SERIAL 00009375-09999999)
  • 1
    2168-9387M TOP COWL ASS'Y
    (SERIAL 00000000-00009375)
    TOP COWL ASS'Y
    (SERIAL 00000000-00009375)
  • 2
    37-95670M DECAL, SIDE AND REAR SET
    (SERIAL 00009376-09999999)
    DECAL, SIDE AND REAR SET
    (SERIAL 00009376-09999999)
  • 2
    37-81114M DECAL, SIDE SET
    (SERIAL 00000000-00009375)
    DECAL, SIDE SET
    (SERIAL 00000000-00009375)
  • 3
    37-95641M EMBLEM, FRONT
    (SERIAL 00009376-09999999)
    EMBLEM, FRONT
    (SERIAL 00009376-09999999)
  • 3
    82898M APPLIQUE, FRONT
    (SERIAL 00000000-00009375)
    APPLIQUE, FRONT
    (SERIAL 00000000-00009375)
  • 4
    82899M APPLIQUE, REAR
    (SERIAL 00000000-00019910)
    APPLIQUE, REAR
    (SERIAL 00000000-00019910)
  • 5
    12-80884M WASHER, APPLIQUE NUT
    (SERIAL 00000000-00009375)
    WASHER, APPLIQUE NUT
    (SERIAL 00000000-00009375)
  • 6
    11-82927M NUT, APPLIQUE ATTACHING
    (SERIAL 00000000-00009375)
    NUT, APPLIQUE ATTACHING
    (SERIAL 00000000-00009375)
  • 7
    83212M HOLDER, CLAMP BAND
    HOLDER, CLAMP BAND
  • 8
    17-84903M RIVET
    RIVET
  • 9
    83137M HOOK
    HOOK
  • 10
    17-83140M RIVET
    RIVET
  • 11
    84323M SOUND BLANKET FRONT
    SOUND BLANKET FRONT
  • 12
    84323M SOUND BLANKET, REAR
    SOUND BLANKET, REAR
  • 13
    83125M SOUND BLANKET, STARBOARD
    SOUND BLANKET, STARBOARD
  • 14
    83232M SOUND BLANKET, TOP
    SOUND BLANKET, TOP
  • 15
    83125M SOUND BLANKET, PORT
    SOUND BLANKET, PORT
  • 16
    80601M SEAL, RUBBER-STARTER
    SEAL, RUBBER-STARTER
  • 17
    84901M SEAL, TOP COWL
    SEAL, TOP COWL
  • 18
    37-81202M INDICATOR, SHIFT
    INDICATOR, SHIFT
  • 19
    37-95547M DECAL, ELECTRIC MODELS
    (SERIAL 00252996-09999999)
    DECAL, ELECTRIC MODELS
    (SERIAL 00252996-09999999)
  • 20
    2168-9349M BOTTOM COWL
    BOTTOM COWL
  • 21
    84913M LEVER, COWL CLAMP
    LEVER, COWL CLAMP
  • 22
    37-82900M GRAPHIC, SIDE (HP)
    GRAPHIC, SIDE (HP)
  • 23
    23-81949M BUSHING, COWL CLAMP LEVER
    BUSHING, COWL CLAMP LEVER
  • 24
    54-84914M CLAMP, COWL
    CLAMP, COWL
  • 25
    12-81794M WASHER
    WASHER
  • 26
    10-84088M BOLT
    BOLT
  • 27
    25-83988M GROMMET, BOTTOM COWL (MANUAL)
    GROMMET, BOTTOM COWL (MANUAL)
  • 28
    25-826981M GROMMET, BOTTOM COWL
    GROMMET, BOTTOM COWL
  • 29
    87-93102M STOP SWITCH (MANUAL)
    (SERIAL 00009376-09999999)
    STOP SWITCH (MANUAL)
    (SERIAL 00009376-09999999)
  • 29
    87-91622M STOP SWITCH (MANUAL) (M-009375 ML-308480 E-251700 EL-552630)
    (SERIAL 00000000-00009375)
    STOP SWITCH (MANUAL) (M-009375 ML-308480 E-251700 EL-552630)
    (SERIAL 00000000-00009375)
  • 30
    91-803581 TOOL KIT
    TOOL KIT
  • 31
    13-81869M WASHER, WAVE
    WASHER, WAVE
  • 32
    25-84910M GROMMET
    GROMMET
  • 33
    23-84911M COLAR
    COLAR
  • 34
    16-95505M BOLT, SPECIAL
    BOLT, SPECIAL
  • 35
    11-82383M NUT
    NUT
  • 36
    12-82217M WASHER
    WASHER
  • 37
    11-82383M NUT
    NUT
  • 38
    37-95570M DECAL
    SERIAL 00019911-09999999
    DECAL
    SERIAL 00019911-09999999
  • 39
    25-83728M GROMMET, OPT. (FOR ENGINE WITHOUT MANUAL STEERING)
    (SERIAL 00019911-09999999)
    GROMMET, OPT. (FOR ENGINE WITHOUT MANUAL STEERING)
    (SERIAL 00019911-09999999)
