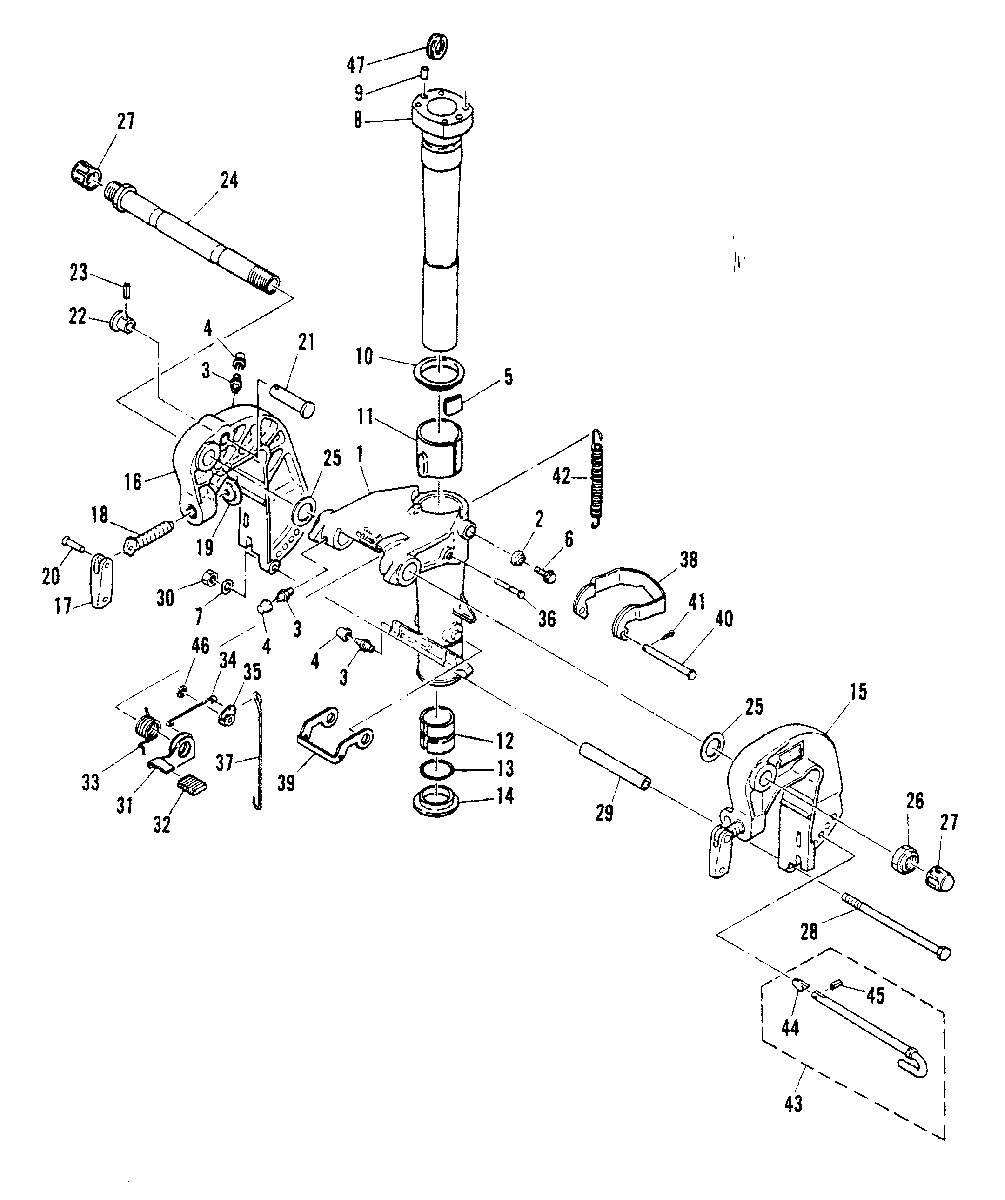

CLAMP AND SWIVEL BRACKET/REVERSE LOCK для Mariner - 25C (THRU PROP. EXHAUST) 695-000101 THRU 023895

  • №
    Артикул
    Название
  • 1
    1485-9246M SWIVEL BRACKET
    (SERIAL 00019911-09999999)
    SWIVEL BRACKET
    (SERIAL 00019911-09999999)
  • 1
    1485-9246M SWIVEL BRACKET (M-006056 THRU 019910 ML-305361 THRU 315400)
    (SERIAL 00006056-00019910)
    SWIVEL BRACKET (M-006056 THRU 019910 ML-305361 THRU 315400)
    (SERIAL 00006056-00019910)
  • 2
    26-91637M SEAL
    SEAL
  • 3
    22-82369M FITTING, GREASE
    FITTING, GREASE
  • 4
    81439M CAP, GREASE FITING
    CAP, GREASE FITING
  • 5
    80633M PLATE, FRICTION
    PLATE, FRICTION
  • 6
    10-96382M SCREW
    SCREW
  • 7
    12-82217M WASHER, LOCK
    WASHER, LOCK
  • 8
    84833M SHAFT, STEERING PIVOT
    SHAFT, STEERING PIVOT
  • 9
    17-82368M PIN, DOWEL
    PIN, DOWEL
  • 10
    12-81873M BUSHING
    BUSHING
  • 11
    23-81964M BUSHING, PIVOT SHAFT-UPPER
    BUSHING, PIVOT SHAFT-UPPER
  • 12
    23-81961M BUSHING, PIVOT SHAFT-LOWER
    BUSHING, PIVOT SHAFT-LOWER
  • 13
    25-82274M O-RING, PIVOT SHAFT BUSHING
    O-RING, PIVOT SHAFT BUSHING
  • 14
    23-81959M BUSHING
    BUSHING
  • 15
    1484-9797M CLAMP BRACKET, PORT
    CLAMP BRACKET, PORT
  • 16
    1484-8246M CLAMP BRACKET, STARBOARD
    CLAMP BRACKET, STARBOARD
  • 17
    809959M HANDLE, TRANSOM CLAMP SCREW
    HANDLE, TRANSOM CLAMP SCREW
  • 18
    10-81756M SCREW, TRANSOM CLAMP
    SCREW, TRANSOM CLAMP
  • 19
    12-80638M PAD, TRANSOM CLAMP SCREW
    PAD, TRANSOM CLAMP SCREW
  • 20
    17-81888M PIN, ROLL
    PIN, ROLL
  • 21
    84835M SHAFT, TILT STOP
    SHAFT, TILT STOP
  • 22
    95650M KNOB, TILT STOP SHAFT
    KNOB, TILT STOP SHAFT
  • 23
    17-82148M PIN, ROLL
    PIN, ROLL
  • 24
    10-91639M TUBE, STEERING
    TUBE, STEERING
  • 25
    12-81836M WASHER
    WASHER
  • 26
    11-879172252 NUT
    NUT
  • 27
    811914M CAP
    CAP
  • 28
    10-82924M BOLT
    BOLT
  • 29
    23-19108M SPACER, CLAMP BRACKET
    SPACER, CLAMP BRACKET
  • 30
    11-82382M NUT
    NUT
  • 31
    91640M LEVER, LOCK/RELEASE
    LEVER, LOCK/RELEASE
  • 32
    91641M COVER, LEVER
    COVER, LEVER
  • 33
    24-91642M SPRING, TENSION
    SPRING, TENSION
  • 34
    91643M LINK, REVERSE LOCK LEVER
    LINK, REVERSE LOCK LEVER
  • 35
    80648M CAM, TILT
    CAM, TILT
  • 36
    17-19109M PIN
    PIN
  • 37
    80645M ROD, REVERSE LOCK LEVER
    ROD, REVERSE LOCK LEVER
  • 38
    84837M HOOK, REVERSE LOCK-REAR
    HOOK, REVERSE LOCK-REAR
  • 39
    80643M HOOK, REVERSE LOCK-FRONT
    HOOK, REVERSE LOCK-FRONT
  • 40
    17-81882M PIN
    PIN
  • 41
    18-82125M PIN, COTTER
    PIN, COTTER
  • 42
    24-19110M SPRING, REVERSE LOCK
    SPRING, REVERSE LOCK
  • 43
    17-94569M TILT LOCK PIN ASS'Y
    TILT LOCK PIN ASS'Y
  • 44
    82857M STOPPER, PLATE
    STOPPER, PLATE
  • 45
    17-82144M PIN, ROLL
    PIN, ROLL
  • 46
    53-82330M SNAP RING
    SNAP RING
  • 47
    25-82070M GROMMET
    GROMMET
