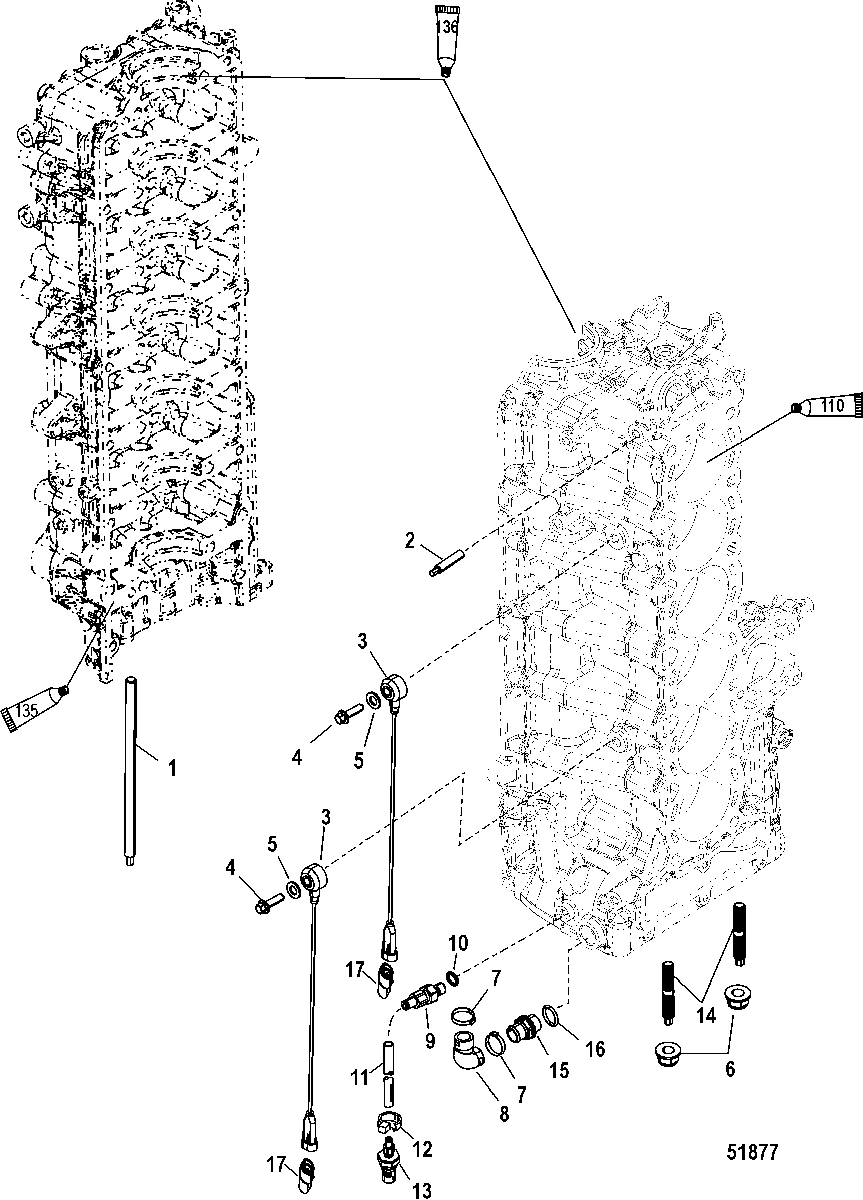

Port Cylinder Block Components для Mariner - 250 VERADO (4-STROKE)(6 CYL.) 0P520553 THRU 2B144122

  • №
    Артикул
    Название
  • 1
    16-8M0022158 STUD, (M10 x 205)
    STUD, (M10 x 205)
  • 2
    16-8M0022162 STUD
    STUD
  • 3
    8M6003194 SENSOR ASSEMBLY, Knock
    SENSOR ASSEMBLY, Knock
  • 4
    10-8M0103830 SCREW, (M10 x 35)
    SCREW, (M10 x 35)
  • 5
    12-4002319 WASHER
    WASHER
  • 6
    11-826365 NUT, (M8)
    NUT, (M8)
  • 7
    54-888988008 CLAMP, (34.6 mm)
    CLAMP, (34.6 mm)
  • 8
    32-885544002 HOSE
    SN# 1B831008 & Below, 1B870113 THRU 1B870380
    HOSE
    SN# 1B831008 & Below, 1B870113 THRU 1B870380
  • 8
    32-8M0043736 HOSE
    SN# 1B831009 thru 1B870112, 1B870381 & Up
    HOSE
    SN# 1B831009 thru 1B870112, 1B870381 & Up
  • 9
    22-896094A01 FITTING ASSEMBLY
    FITTING ASSEMBLY
  • 10
    25-896699 O-RING, (1.78 mm x .08 mm)
    O-RING, (1.78 mm x .08 mm)
  • 11
    32-85978571 TUBING, (52.00 Inches Bulk), To Water Pressure Sensor - Cut to 21.5 Inches
    TUBING, (52.00 Inches Bulk), To Water Pressure Sensor - Cut to 21.5 Inches
  • 12
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 13
    881879T26 SENSOR, Pressure, Water
    SENSOR, Pressure, Water
  • 14
    16-8M0000274 STUD, (M8 x 49)
    STUD, (M8 x 49)
  • 15
    22-885517A05 FITTING ASSEMBLY
    FITTING ASSEMBLY
  • 16
    25-892077 O-RING
    O-RING
  • 17
    893388A02 CAP, Resistor - 2 Pin, 20K Ohm
    CAP, Resistor - 2 Pin, 20K Ohm
  • -
    61-895247A07 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
