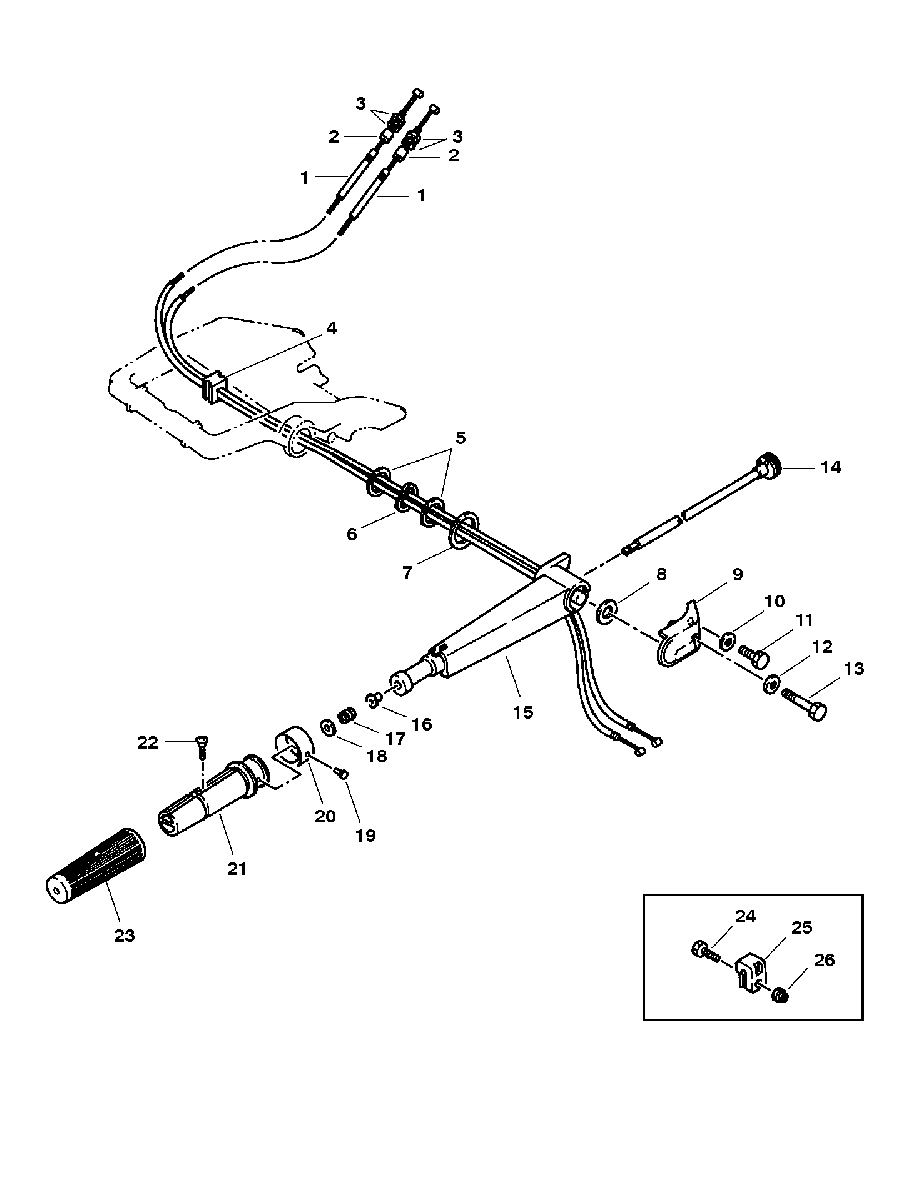

STEERING HANDLE для Mariner - 25 K 62C-300101 AND UP
-
№АртикулНазвание
-
-826983A1 STEERING HANDLE ASSEMBLY
(M-000252/ML-303099 & UP)STEERING HANDLE ASSEMBLY
(M-000252/ML-303099 & UP) -
-826983M STEERING HANDLE ASSEMBLY
(M-000251/ML-303098 & BELOW)STEERING HANDLE ASSEMBLY
(M-000251/ML-303098 & BELOW) -
1826985M CABLE-ThrottleCABLE-Throttle
-
210-82791M BOLTBOLT
-
311-81765M NUTNUT
-
425-826986M GROMMETGROMMET
-
512-84850M WASHERWASHER
-
613-84851M WAVE WASHERWAVE WASHER
-
723-81861M SPACERSPACER
-
823-82119M SPACERSPACER
-
984852M RETAINERRETAINER
-
1012-82214M WASHERWASHER
-
1110-84058M BOLTBOLT
-
1212-82214M WASHERWASHER
-
1310-84931M BOLTBOLT
-
1484856M LEVERLEVER
-
15966641 STEERING HANDLE
(M-000252/ML-303099 & UP)STEERING HANDLE
(M-000252/ML-303099 & UP) -
1596664M STEERING HANDLE
(M-000251/ML-303098 & BELOW)STEERING HANDLE
(M-000251/ML-303098 & BELOW) -
1623-81945M BUSHINGBUSHING
-
1724-82095M SPRINGSPRING
-
1812-82220M WASHERWASHER
-
1917-81907M RIVETRIVET
-
20826984M INDICATORINDICATOR
-
2181585M HANDLEHANDLE
-
2210-811916M SCREWSCREW
-
238M0080456 HANDLEHANDLE
-
2410-84058M BOLT
THROTTLE FRICTIONBOLT
THROTTLE FRICTION -
2582895M GUIDE
THROTTLE FRICTIONGUIDE
THROTTLE FRICTION -
2611-83056M NUT
THROTTLE FRICTIONNUT
THROTTLE FRICTION
