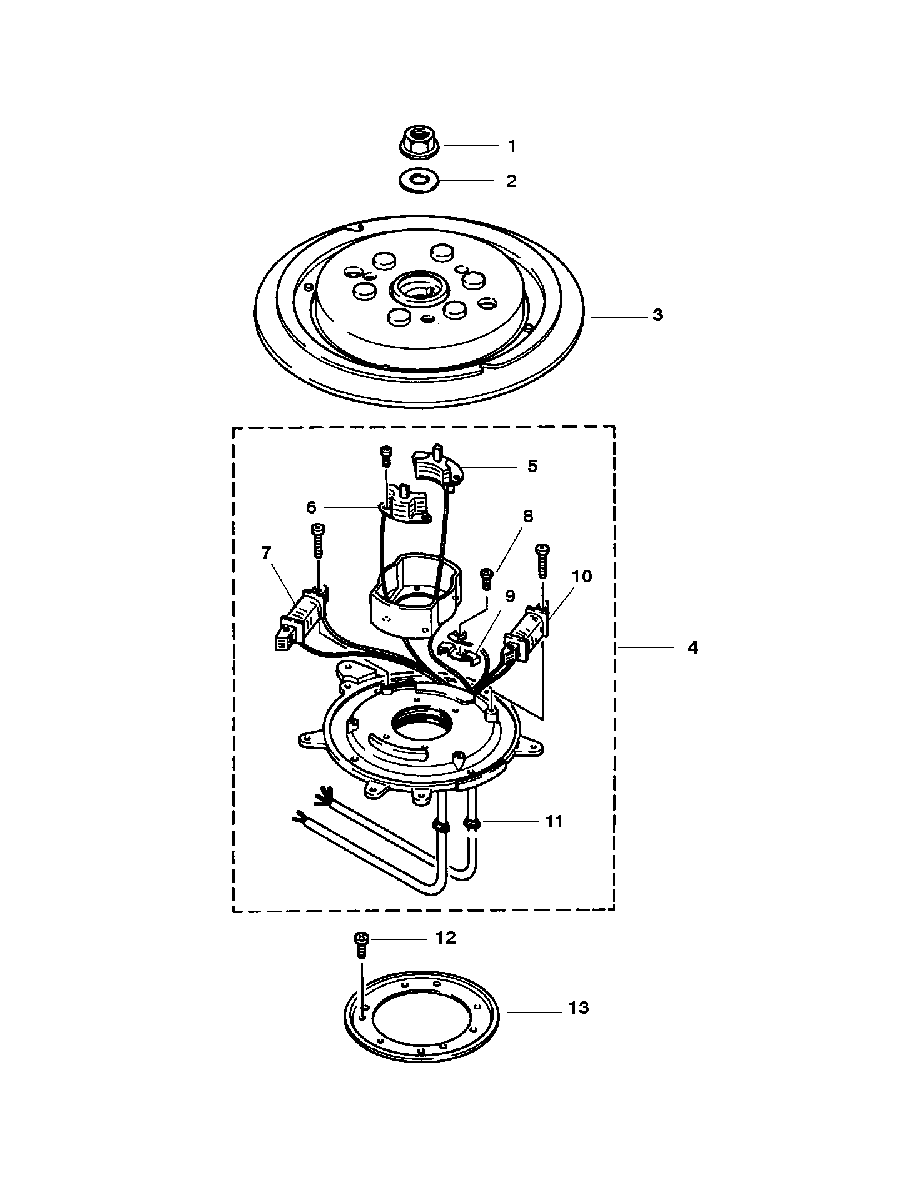

FLYWHEEL для Mariner - 25 K 62C-300101 AND UP

  • №
    Артикул
    Название
  • 1
    11-96650M NUT
    NUT
  • 2
    12-96651M WASHER
    WASHER
  • 3
    253-8270841 FLYWHEEL ASSEMBLY
    (M-000252/ML-303099 & UP)
    FLYWHEEL ASSEMBLY
    (M-000252/ML-303099 & UP)
  • 3
    253-827084M FLYWHEEL ASSEMBLY
    (M-000251/ML-303098 & BELOW)
    FLYWHEEL ASSEMBLY
    (M-000251/ML-303098 & BELOW)
  • 4
    253-827085A1 BASE ASSEMBLY
    (M-000252/ML-303099 & UP)
    BASE ASSEMBLY
    (M-000252/ML-303099 & UP)
  • 4
    253-827085M BASE ASSEMBLY
    (M-000251/ML-303098 & BELOW)
    BASE ASSEMBLY
    (M-000251/ML-303098 & BELOW)
  • 5
    827088M PULSER COIL
    PULSER COIL
  • 6
    827089M PULSER COIL
    PULSER COIL
  • 7
    827087M LIGHTING COIL
    LIGHTING COIL
  • 8
    10-82499M SCREW
    SCREW
  • 9
    54-814546M CLAMP
    CLAMP
  • 10
    827086T1 IGNITION COIL
    (M-000252/ML-303099 & UP)
    IGNITION COIL
    (M-000252/ML-303099 & UP)
  • 10
    827086M IGNITION COIL
    (M-000251/ML-303098 & BELOW)
    IGNITION COIL
    (M-000251/ML-303098 & BELOW)
  • 11
    25-814545M GROMMET
    GROMMET
  • 12
    10-96671M SCREW
    SCREW
  • 13
    19139M RETAINER
    RETAINER
