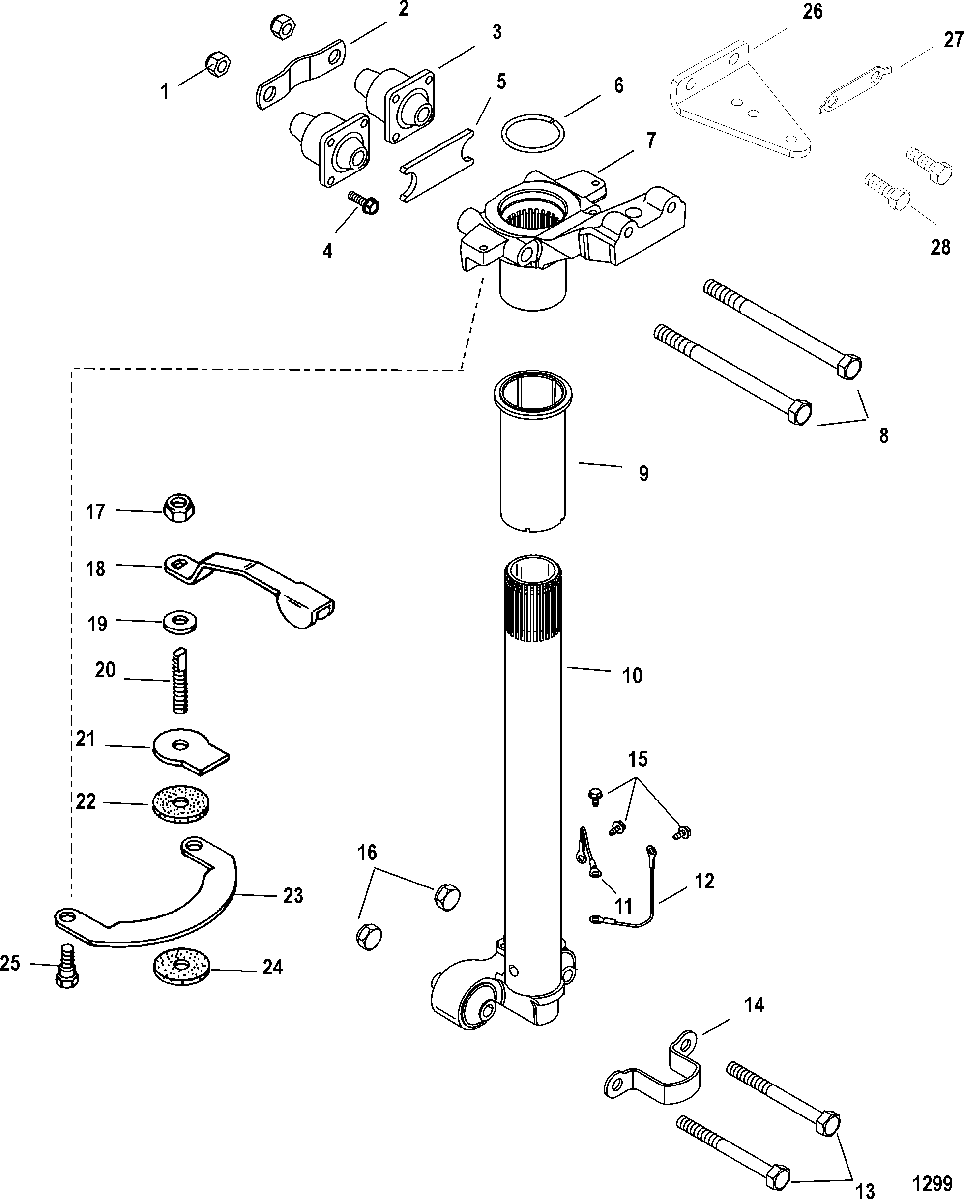

Steering Arm для Mariner - 25 (4-STROKE) 0P017000 THRU 0P153499

  • №
    Артикул
    Название
  • 1
    11-896963 NUT, (M12)
    NUT, (M12)
  • 2
    893773002 STRAP
    STRAP
  • 3
    826267T3 MOUNT
    MOUNT
  • 4
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 5
    826658 BUMPER
    BUMPER
  • 6
    53-89531 RING, Retaining
    RING, Retaining
  • 7
    8M0118183 ARM, Steering
    Black
    ARM, Steering
    Black
  • 7
    8M0118183 ARM, Steering
    Gray
    ARM, Steering
    Gray
  • 8
    10-898835001 BOLT, (M12 x 154)
    BOLT, (M12 x 154)
  • 9
    23-8279973 SPACER
    Short
    SPACER
    Short
  • 9
    23-8279971 SPACER
    Long
    SPACER
    Long
  • 10
    850175A1 SWIVEL TUBE
    Short
    SWIVEL TUBE
    Short
  • 10
    826233T3 SWIVEL TUBE
    Long
    SWIVEL TUBE
    Long
  • 11
    84-88238T01 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 12
    88238A13 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 13
    10-823567105 SCREW, (M10 x 105) Hex Flange - Stainless Steel
    SCREW, (M10 x 105) Hex Flange - Stainless Steel
  • 14
    893703 BRACKET
    BRACKET
  • 15
    10-878607 SCREW, (#10-16 x .380)
    SCREW, (#10-16 x .380)
  • 16
    11-40140 NUT, (M10)
    NUT, (M10)
  • 17
    11-8M0042636 NUT, (.375-24) Stainless Steel
    Handle
    NUT, (.375-24) Stainless Steel
    Handle
  • 18
    823792 LEVER
    Handle
    LEVER
    Handle
  • 19
    12-29330 WASHER
    Handle
    WASHER
    Handle
  • 20
    821961 ROD, Threaded
    Handle
    ROD, Threaded
    Handle
  • 21
    821957 BRAKE PLATE
    Handle
    BRAKE PLATE
    Handle
  • 22
    8165621 DISC
    Handle
    DISC
    Handle
  • 23
    8M0007471 PLATE
    Handle
    PLATE
    Handle
  • 24
    8165621 DISC
    Handle
    DISC
    Handle
  • 25
    10-768042 SHOULDER SCREW, Hex
    Handle
    SHOULDER SCREW, Hex
    Handle
  • 26
    893696 BRACKET
    Electric
    BRACKET
    Electric
  • 27
    14-8M0009820 TAB WASHER
    Electric
    TAB WASHER
    Electric
  • 28
    10-4000377 SCREW, (M10 x 30)
    Electric
    SCREW, (M10 x 30)
    Electric
