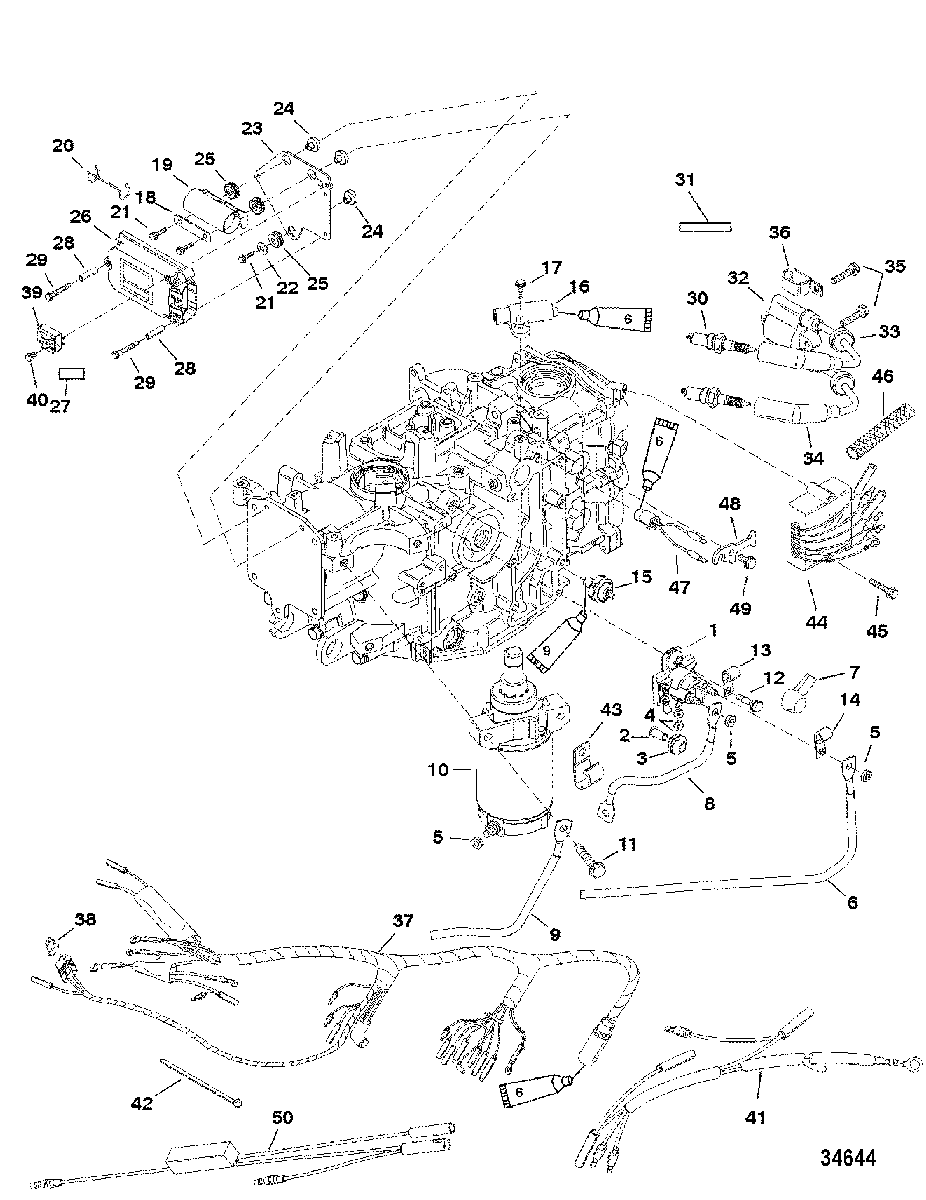

Electrical Components(S/N-0G960499 and Below) для Mariner - 25 (4-STROKE) 0P017000 THRU 0P153499

  • №
    Артикул
    Название
  • 1
    89-850187T1 SOLENOID ASSEMBLY
    Electric
    SOLENOID ASSEMBLY
    Electric
  • 2
    23-818968 BUSHING
    Electric
    BUSHING
    Electric
  • 3
    25-818967 GROMMET
    Electric
    GROMMET
    Electric
  • 4
    11-26419 NUT, (#8-32) Brass
    Electric
    NUT, (#8-32) Brass
    Electric
  • 5
    11-94330 NUT, (.250-20) Brass
    Electric
    NUT, (.250-20) Brass
    Electric
  • 6
    84-88439A9 CABLE ASSEMBLY, Battery - Positive
    Electric
    CABLE ASSEMBLY, Battery - Positive
    Electric
  • 7
    85-79695T BOOT, Insulator - Black
    Electric
    BOOT, Insulator - Black
    Electric
  • 8
    84-93388A13 CABLE ASSEMBLY
    Electric
    CABLE ASSEMBLY
    Electric
  • 9
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    Electric
    CABLE ASSEMBLY, Battery - Negative
    Electric
  • 10
    50-893886T STARTER MOTOR ASSEMBLY
    Electric
    STARTER MOTOR ASSEMBLY
    Electric
  • 11
    10-40011153 SCREW, (M8 x 45) Stainless Steel
    Electric
    SCREW, (M8 x 45) Stainless Steel
    Electric
  • 11
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    Manual
    SCREW, (M8 x 25) Stainless Steel
    Manual
  • 12
    10-82684430 SCREW, (M6 x 30)
    Electric
    SCREW, (M6 x 30)
    Electric
  • 12
    10-8248324 SCREW, (M6 x 16)
    Manual
    SCREW, (M6 x 16)
    Manual
  • 13
    54-65292 J CLIP
    Electric
    J CLIP
    Electric
  • 14
    54-54457 J CLIP
    Manual
    J CLIP
    Manual
  • 15
    87-8M0098207 PRESSURE SWITCH
    PRESSURE SWITCH
  • 16
    8M0082988 SENSOR
    SENSOR
  • 17
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 18
    856040 BRACKET
    Electric
    BRACKET
    Electric
  • 19
    856836001 RETAINER
    Electric
    RETAINER
    Electric
  • 20
    92753 RETAINER
    Electric
    RETAINER
    Electric
  • 21
    10-82129125 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 22
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 23
    856837 PLATE
    PLATE
  • 24
    23-826618 BUSHING
    BUSHING
  • 25
    25-834985 GROMMET
    GROMMET
  • 26
    87843304S ECM, Engine Control Module
    ECM, Engine Control Module
  • 27
    37-881865 DECAL, Caution, Start In Gear
    DECAL, Caution, Start In Gear
  • 28
    23-8539201 BUSHING
    BUSHING
  • 29
    10-82129140 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 30
    33-827858Q SPARK PLUG, NGK-DPR6EA-9
    SPARK PLUG, NGK-DPR6EA-9
  • 31
    NSS NOT SOLD SEPARATE, Decal-Coil Identification
    NOT SOLD SEPARATE, Decal-Coil Identification
  • 32
    339-859738T1 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 33
    25-82069M GROMMET
    GROMMET
  • 34
    84-825102A1 HIGH TENSION LEAD
    HIGH TENSION LEAD
  • 35
    10-82684430 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 36
    54-28700 CLAMP
    CLAMP
  • 37
    84-850167A7 HARNESS ASSEMBLY, Engine Wiring
    Manual
    HARNESS ASSEMBLY, Engine Wiring
    Manual
  • 37
    84-830279A7 HARNESS ASSEMBLY, Engine Wiring
    Electric
    HARNESS ASSEMBLY, Engine Wiring
    Electric
  • 38
    88-812619 FUSE, Yellow - 20 Ampere
    Electric
    FUSE, Yellow - 20 Ampere
    Electric
  • 39
    828054 COVER, Fuse
    Electric
    COVER, Fuse
    Electric
  • 40
    10-82129110 SCREW, (M6 x 10)
    Electric
    SCREW, (M6 x 10)
    Electric
  • 41
    84-852375A6 HARNESS ASSEMBLY, Extension
    Electric Handle
    HARNESS ASSEMBLY, Extension
    Electric Handle
  • 42
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 43
    54-47483 J CLIP
    Manual
    J CLIP
    Manual
  • 44
    883071T REGULATOR, Voltage
    Electric
    REGULATOR, Voltage
    Electric
  • 45
    10-8248329 SCREW, (M6 x 40)
    Electric
    SCREW, (M6 x 40)
    Electric
  • 46
    23-82459612 OVERSLEEVE
    Electric
    OVERSLEEVE
    Electric
  • 47
    13536A12 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 48
    8533071 RETAINER
    RETAINER
  • 49
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    SCREW, (M6 x 13) Stainless Steel
  • 50
    17461A7 HORN DRIVER ASSEMBLY
    Manual - Use where Applicable
    HORN DRIVER ASSEMBLY
    Manual - Use where Applicable
  • -
    61-854236T00 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
