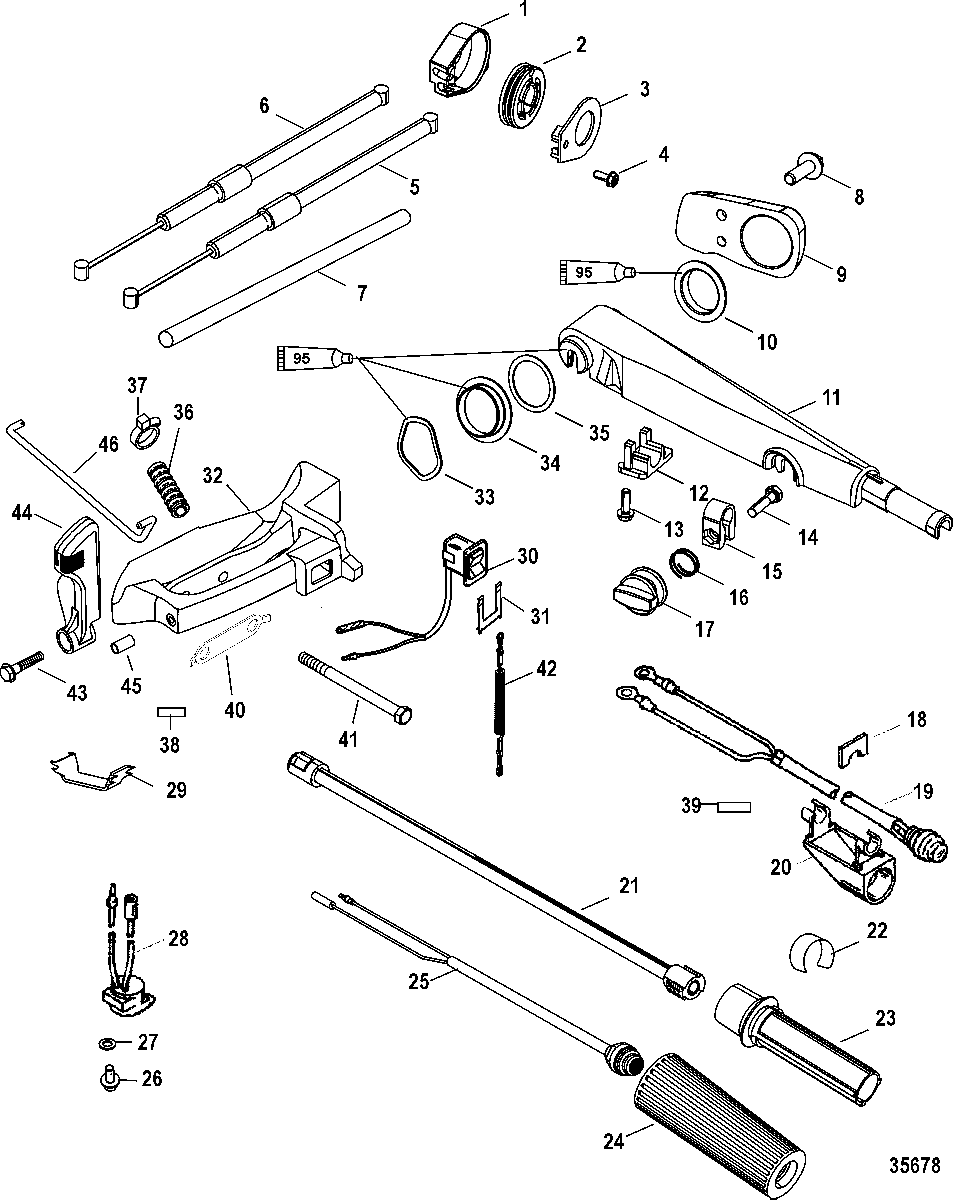

Tiller Handle для Mariner - 25 (4-STROKE) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    822148A8 COVER KIT
    COVER KIT
  • 2
    822150 PULLEY
    PULLEY
  • 3
    NSS NOT SOLD SEPARATE, Case
    NOT SOLD SEPARATE, Case
  • 4
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 5
    4324214 CABLE ASSEMBLY, Throttle (26.50 Inches)
    CABLE ASSEMBLY, Throttle (26.50 Inches)
  • 6
    4324215 CABLE ASSEMBLY, Throttle (27.50 Inches)
    CABLE ASSEMBLY, Throttle (27.50 Inches)
  • 7
    85-960099 SLEEVE, (12.00 Inches)
    SLEEVE, (12.00 Inches)
  • 8
    10-82526225 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 9
    8M0072298 COVER
    (BLACK)
    COVER
    (BLACK)
  • 9
    822407F2 COVER
    (GRAY)
    COVER
    (GRAY)
  • 10
    23-821477 BUSHING
    BUSHING
  • 11
    822325T1 ARM, Steering Handle
    (BLACK)
    ARM, Steering Handle
    (BLACK)
  • 11
    822325T1 ARM, Steering Handle
    (GRAY)
    ARM, Steering Handle
    (GRAY)
  • 12
    822441 RETAINER
    RETAINER
  • 13
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 14
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 15
    892995 LOCK, Throttle
    LOCK, Throttle
  • 16
    24-96203 SPRING
    SPRING
  • 17
    821972T KNOB, Throttle
    KNOB, Throttle
  • 18
    824918 CLIP
    (ELECTRIC)
    CLIP
    (ELECTRIC)
  • 19
    87-823609A12 SWITCH ASSEMBLY
    (ELECTRIC)
    SWITCH ASSEMBLY
    (ELECTRIC)
  • 20
    889734 HOUSING
    (ELECTRIC)
    HOUSING
    (ELECTRIC)
  • 21
    821463T01 TILLER TUBE
    TILLER TUBE
  • 22
    37-8242004 DECAL
    DECAL
  • 23
    821465 HANDLE, Throttle
    HANDLE, Throttle
  • 24
    99589003 GRIP
    GRIP
  • 25
    87-8M0104611 SWITCH, Stop
    SWITCH, Stop
  • 26
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 27
    12-4002316 WASHER
    WASHER
  • 28
    84-8M0088388 ALARM ASSEMBLY
    ALARM ASSEMBLY
  • 29
    823687 CLIP
    CLIP
  • 30
    87-11083A31 SWITCH, Stop
    SWITCH, Stop
  • 31
    8M0032846 RETAINER, Brass
    RETAINER, Brass
  • 32
    821455A4 BRACKET, Tiller
    (BLACK)
    BRACKET, Tiller
    (BLACK)
  • 32
    821455A4 BRACKET, Tiller
    (GRAY)
    BRACKET, Tiller
    (GRAY)
  • 33
    13-826792 WAVE WASHER
    WAVE WASHER
  • 34
    23-821477 BUSHING
    BUSHING
  • 35
    12-827314 WASHER
    WASHER
  • 36
    32-828547633 CONDUIT, (.620 Inside Diameter x 3.00 Feet Bulk)
    CONDUIT, (.620 Inside Diameter x 3.00 Feet Bulk)
  • 37
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 38
    NSS NOT SOLD SEPARATE, Decal-Shift (F-N-R)
    NOT SOLD SEPARATE, Decal-Shift (F-N-R)
  • 39
    NSS NOT SOLD SEPARATE, Decal-Start
    (ELECTRIC)
    NOT SOLD SEPARATE, Decal-Start
    (ELECTRIC)
  • 40
    14-8M0009820 TAB WASHER
    TAB WASHER
  • 41
    10-82484890 SCREW, (M10 x 90)
    SCREW, (M10 x 90)
  • 42
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • 43
    10-40011151 SCREW, (M8 x 35) Stainless Steel
    SCREW, (M8 x 35) Stainless Steel
  • 44
    830180A01 HANDLE
    HANDLE
  • 45
    23-830181 BUSHING
    BUSHING
  • 46
    8301821 SHIFT ROD
    SHIFT ROD
