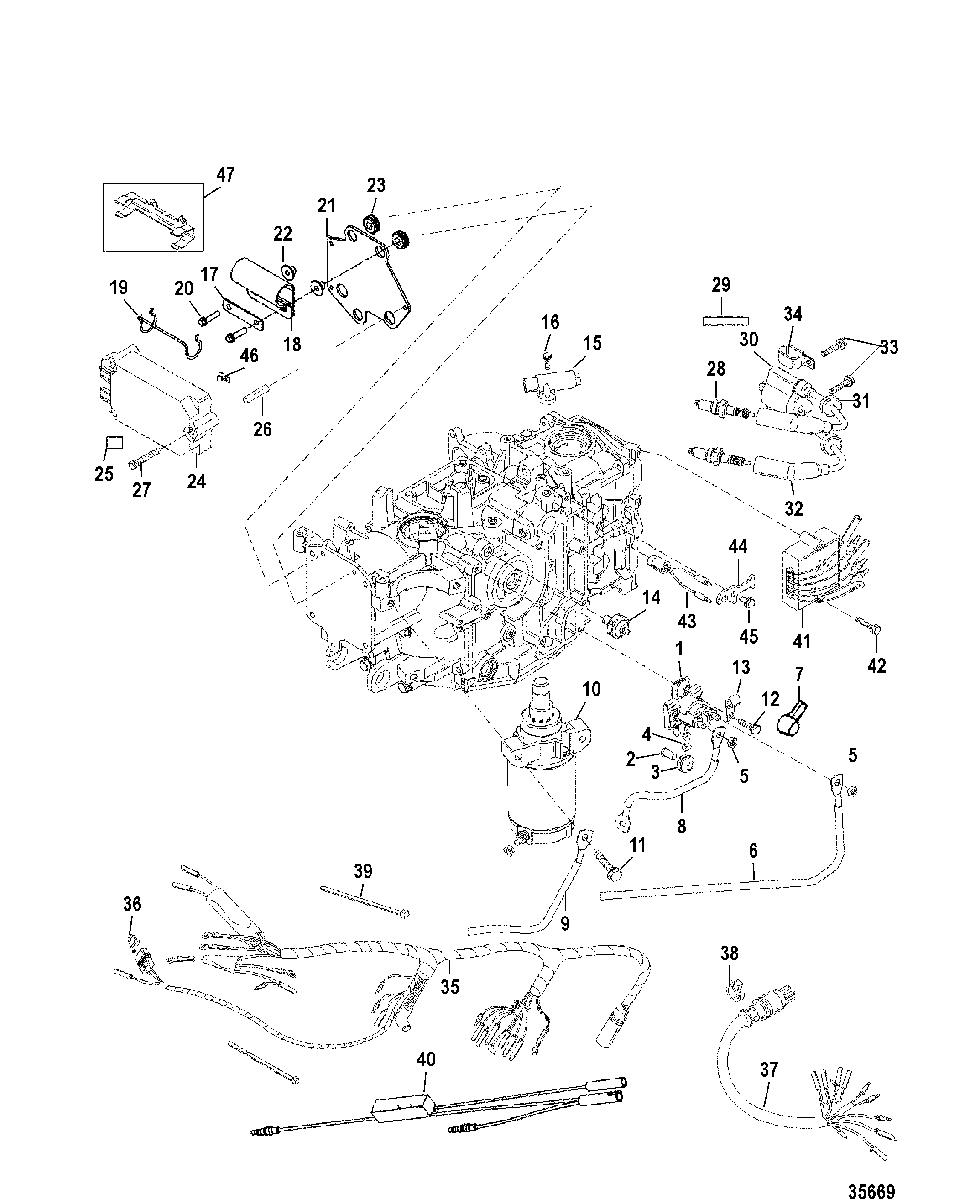

Electrical Components для Mariner - 25 (4-STROKE) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    89-850187T1 SOLENOID ASSEMBLY
    SOLENOID ASSEMBLY
  • 2
    23-818968 BUSHING
    BUSHING
  • 3
    25-818967 GROMMET
    GROMMET
  • 4
    11-26419 NUT, (#8-32) Brass
    (ELECTRIC)
    NUT, (#8-32) Brass
    (ELECTRIC)
  • 5
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 6
    84-88439A9 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 7
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 8
    84-93388A14 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 9
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 10
    50-893886T STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 11
    10-40011153 SCREW, (M8 x 45) Stainless Steel
    (ELECTRIC)
    SCREW, (M8 x 45) Stainless Steel
    (ELECTRIC)
  • 11
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    (MANUAL)
    SCREW, (M8 x 25) Stainless Steel
    (MANUAL)
  • 12
    10-82684425 SCREW, (M6 x 25)
    (ELECTRIC)
    SCREW, (M6 x 25)
    (ELECTRIC)
  • 12
    10-8248324 SCREW, (M6 x 16)
    (MANUAL)
    SCREW, (M6 x 16)
    (MANUAL)
  • 13
    54-54457 J CLIP
    J CLIP
  • 14
    87-8M0098207 PRESSURE SWITCH
    PRESSURE SWITCH
  • 15
    8M0082988 SENSOR
    SENSOR
  • 16
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 17
    856040 BRACKET
    (ELECTRIC - DESIGN II)
    BRACKET
    (ELECTRIC - DESIGN II)
  • 18
    856836001 MOUNT
    (ELECTRIC - DESIGN II)
    MOUNT
    (ELECTRIC - DESIGN II)
  • 19
    92753 RETAINER
    (ELECTRIC - DESIGN II)
    RETAINER
    (ELECTRIC - DESIGN II)
  • 20
    10-82129125 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 21
    855670 PLATE
    PLATE
  • 22
    23-822003 BUSHING
    BUSHING
  • 23
    25-834985 GROMMET
    GROMMET
  • 24
    87843304S ECM, Engine Control Module
    ECM, Engine Control Module
  • 25
    NSS NOT SOLD SEPARATE, Decal-Caution-Start in Gear
    NOT SOLD SEPARATE, Decal-Caution-Start in Gear
  • 26
    23-8539201 BUSHING
    BUSHING
  • 27
    10-82129145 SCREW, (M6 x 45)
    SCREW, (M6 x 45)
  • 28
    33-827858Q SPARK PLUG, NGK-DPR6EA-9
    SPARK PLUG, NGK-DPR6EA-9
  • 29
    NSS NOT SOLD SEPARATE, Decal-Coil Identification
    NOT SOLD SEPARATE, Decal-Coil Identification
  • 30
    339-859738T1 COIL ASSEMBLY, Ignition
    (Includes Leads and Boots)
    COIL ASSEMBLY, Ignition
    (Includes Leads and Boots)
  • 31
    25-82069M GROMMET
    GROMMET
  • 32
    84-825102A1 HIGH TENSION LEAD
    HIGH TENSION LEAD
  • 33
    10-82684430 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 34
    54-65292 J CLIP
    J CLIP
  • 35
    84-850167A2 HARNESS ASSEMBLY, Engine Wiring
    (MANUAL)
    HARNESS ASSEMBLY, Engine Wiring
    (MANUAL)
  • 35
    84-830279A4 HARNESS ASSEMBLY, Engine Wiring
    (ELECTRIC)
    HARNESS ASSEMBLY, Engine Wiring
    (ELECTRIC)
  • 36
    88-812619 FUSE, Yellow - 20 Ampere
    FUSE, Yellow - 20 Ampere
  • 37
    84-855225A2 HARNESS ASSEMBLY, Auxiliary
    HARNESS ASSEMBLY, Auxiliary
  • 38
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 39
    56762 TIE STRAP, (4.00 Inches)
    (MANUAL)
    TIE STRAP, (4.00 Inches)
    (MANUAL)
  • 40
    17461A7 HORN DRIVER ASSEMBLY
    (MANUAL)
    HORN DRIVER ASSEMBLY
    (MANUAL)
  • 41
    883071A1 REGULATOR ASSEMBLY, Voltage
    ELECTRIC
    REGULATOR ASSEMBLY, Voltage
    ELECTRIC
  • 42
    10-8248329 SCREW, (M6 x 40)
    ELECTRIC
    SCREW, (M6 x 40)
    ELECTRIC
  • 43
    13536A12 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 44
    8533071 RETAINER
    RETAINER
  • 45
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    SCREW, (M6 x 13) Stainless Steel
  • 46
    54-65292 J CLIP
    J CLIP
  • 47
    8261151 CLAMP, Connector
    (ELECTRIC - DESIGN I)
    CLAMP, Connector
    (ELECTRIC - DESIGN I)
  • -
    61-854236T00 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
