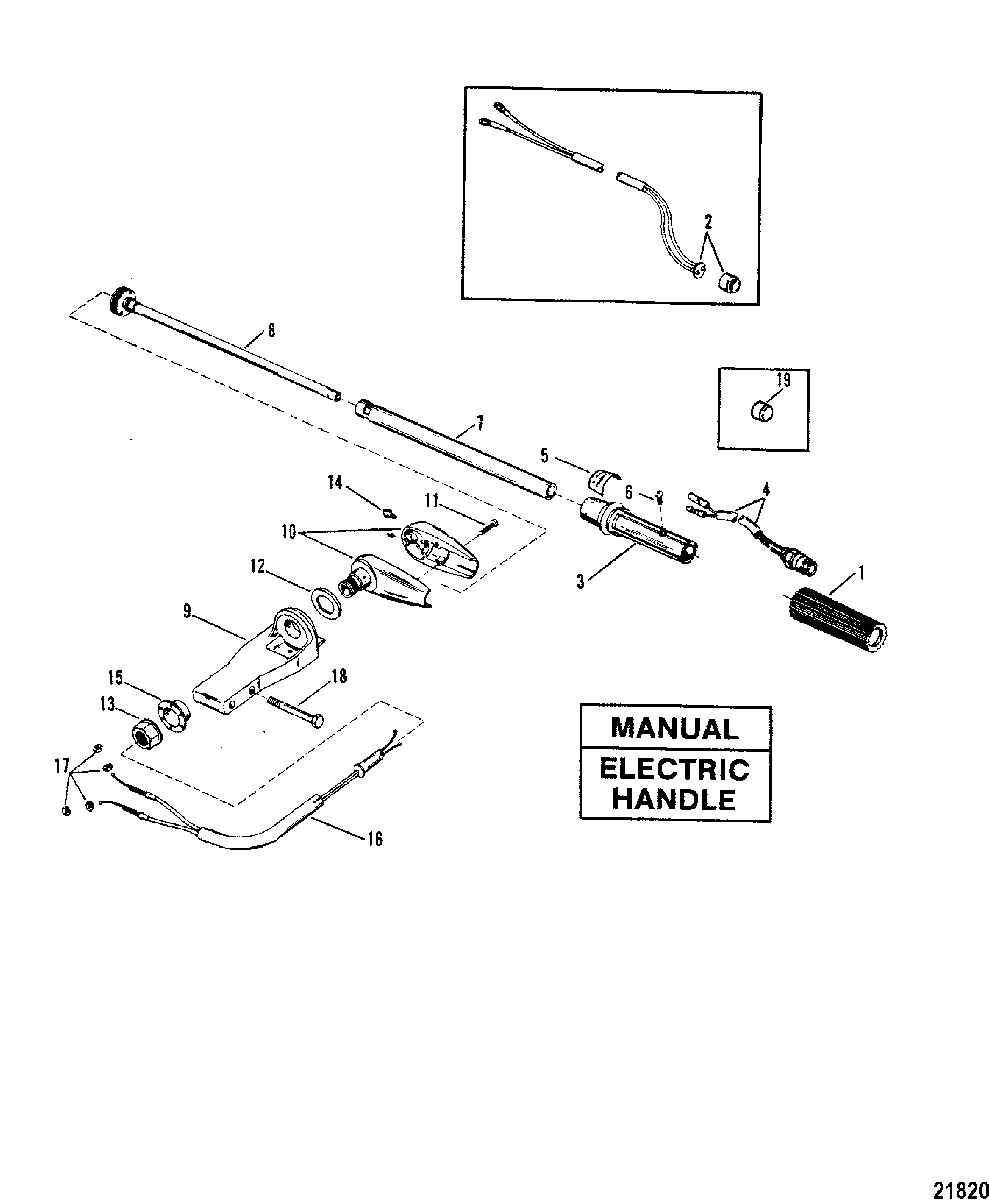

Steering Handle Assembly(Manual/Electric Handle) для Mariner - 25, 25 MARATHON, SUPER 15 (2 CYL.) 0A730007 & Up
-
№АртикулНазвание
-
199589003 GRIPGRIP
-
2NLA No Longer Available, Stop Switch
(Design I - Order Kit 87-823609A10 - Reference 3)No Longer Available, Stop Switch
(Design I - Order Kit 87-823609A10 - Reference 3) -
387-823609A10 SWITCH KIT, Stop - Throttle HandleSWITCH KIT, Stop - Throttle Handle
-
487-8M0104615 SWITCH ASSEMBLY, Stop (DESIGN II -W/METAL LOCK RING)SWITCH ASSEMBLY, Stop (DESIGN II -W/METAL LOCK RING)
-
537-140121 DECAL (APPLY ON TUBE)DECAL (APPLY ON TUBE)
-
537-140122 DECAL (APPLY ON TUBE - 3.33 Inches x 1.25 Inches)(GRAY)DECAL (APPLY ON TUBE - 3.33 Inches x 1.25 Inches)(GRAY)
-
537-140123 DECAL (APPLY ON TUBE - 3.15 x 2.50 Inches)(GRAY)DECAL (APPLY ON TUBE - 3.15 x 2.50 Inches)(GRAY)
-
537-140124 DECAL (INTERNATIONAL SYMBOLS)DECAL (INTERNATIONAL SYMBOLS)
-
610-37342 SCREW, (#12-14 x .375)SCREW, (#12-14 x .375)
-
799333A2 TUBE ASSEMBLYTUBE ASSEMBLY
-
8975501 TUBE ASSEMBLYTUBE ASSEMBLY
-
943447A3 BRACKET ASSEMBLY (BLACK)
(Reference 13 is 1 Inch -14)BRACKET ASSEMBLY (BLACK)
(Reference 13 is 1 Inch -14) -
943447A3 BRACKET ASSEMBLY (GRAY)
(Reference 13 is 1 Inch -14)BRACKET ASSEMBLY (GRAY)
(Reference 13 is 1 Inch -14) -
10NLA No Longer Available, Bracket (BLACK) (Order 43447A3)
(Reference 13 is 1 Inch -14)No Longer Available, Bracket (BLACK) (Order 43447A3)
(Reference 13 is 1 Inch -14) -
10NLA No Longer Available, Bracket (GRAY) (Order 43447A4)
(Reference 13 is 1 Inch -14)No Longer Available, Bracket (GRAY) (Order 43447A4)
(Reference 13 is 1 Inch -14) -
1110-4005688 SCREW, (M4 x 20)
(Reference 13 is 1 Inch -14)SCREW, (M4 x 20)
(Reference 13 is 1 Inch -14) -
1110-40019109 SCREW, (M5 x 25)
(Reference 13 is 1 Inch -14)SCREW, (M5 x 25)
(Reference 13 is 1 Inch -14) -
1212-177821 WASHER, 14WASHER, 14
-
1311-82671327 NUT (Black)
(Reference 13 is 1 Inch -14)NUT (Black)
(Reference 13 is 1 Inch -14) -
1311-82671327 NUT, (1.00-14) (Gray)
(Reference 13 is 1 Inch -14)NUT, (1.00-14) (Gray)
(Reference 13 is 1 Inch -14) -
1422-74036 FITTING, Grease
(Reference 13 is 1 Inch -14)FITTING, Grease
(Reference 13 is 1 Inch -14) -
1523-85973 BUSHINGBUSHING
-
943447A3 BRACKET ASSEMBLY, Steering (Black)
(Reference 13 is 1.125 Inch -12)BRACKET ASSEMBLY, Steering (Black)
(Reference 13 is 1.125 Inch -12) -
943447A3 BRACKET ASSEMBLY, Steering (Gray)
(Reference 13 is 1.125 Inch -12)BRACKET ASSEMBLY, Steering (Gray)
(Reference 13 is 1.125 Inch -12) -
943447A5 BRACKET ASSEMBLY, Steering (Tracker)
(Reference 13 is 1.125 Inch -12)BRACKET ASSEMBLY, Steering (Tracker)
(Reference 13 is 1.125 Inch -12) -
1044397A15 BRACKET ASSEMBLY (BLACK)
(Reference 13 is 1.125 Inch -12)BRACKET ASSEMBLY (BLACK)
(Reference 13 is 1.125 Inch -12) -
1044397A16 BRACKET ASSEMBLY (GRAY)
(Reference 13 is 1.125 Inch -12)BRACKET ASSEMBLY (GRAY)
(Reference 13 is 1.125 Inch -12) -
1044397A22 BRACKET ASSEMBLY (TRACKER)
(Reference 13 is 1.125 Inch -12)BRACKET ASSEMBLY (TRACKER)
(Reference 13 is 1.125 Inch -12) -
1110-40011110 SCREW, (M5 x 30) Stainless Steel
(Reference 13 is 1.125 Inch -12)SCREW, (M5 x 30) Stainless Steel
(Reference 13 is 1.125 Inch -12) -
1212-177821 WASHER
(Reference 13 is 1.125 Inch -12)WASHER
(Reference 13 is 1.125 Inch -12) -
1311-816880 NUT
(Reference 13 is 1.125 Inch -12)NUT
(Reference 13 is 1.125 Inch -12) -
1422-74036 FITTING, Grease
(Reference 13 is 1.125 Inch -12)FITTING, Grease
(Reference 13 is 1.125 Inch -12) -
1523-817026 BUSHING
(Reference 13 is 1.125 Inch -12)BUSHING
(Reference 13 is 1.125 Inch -12) -
16432421 CABLE, Throttle (TILLER HANDLE SHIFT)CABLE, Throttle (TILLER HANDLE SHIFT)
-
16432422 CABLE ASSEMBLY, Throttle (SIDE SHIFT)CABLE ASSEMBLY, Throttle (SIDE SHIFT)
-
1711-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1810-4000384 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
19817634 PLUG (SEA PRO/MARATHON 25/SUPER 15)PLUG (SEA PRO/MARATHON 25/SUPER 15)
