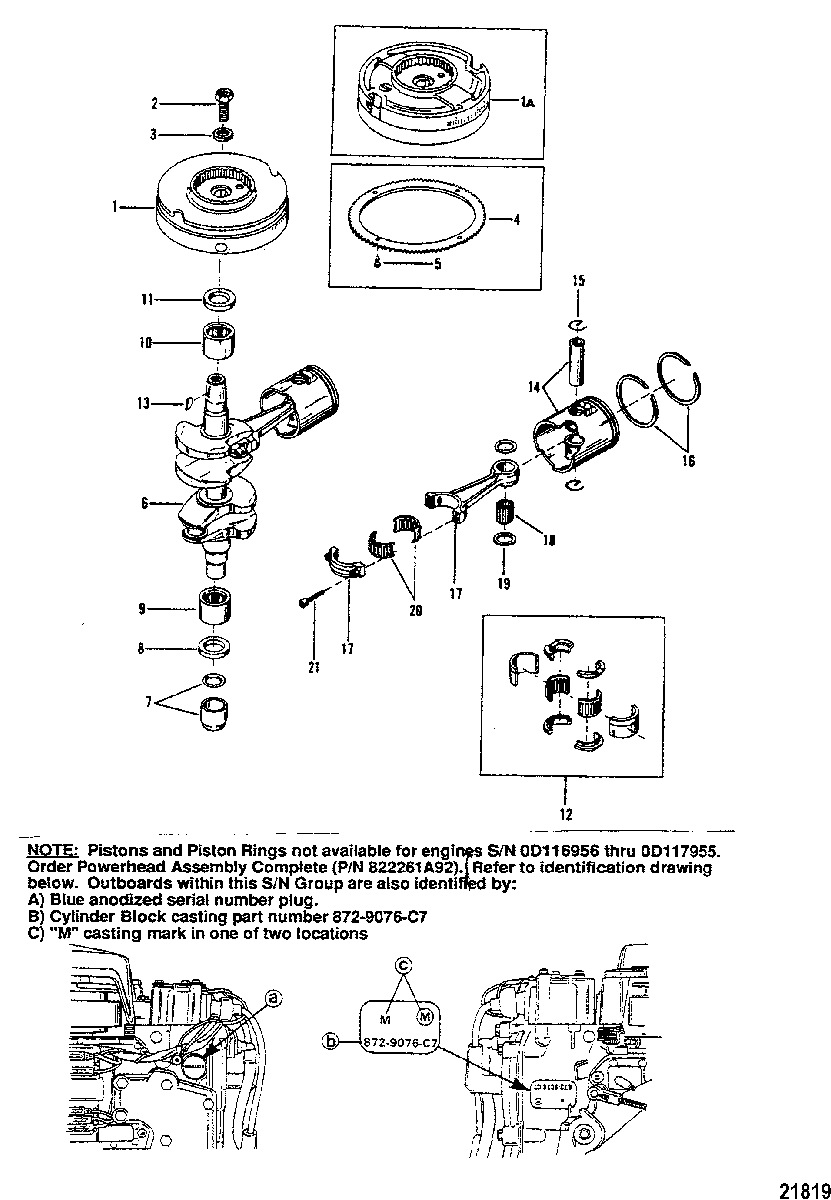

Crankshaft, Pistons and Flywheel для Mariner - 25, 25 MARATHON, SUPER 15 (2 CYL.) 0A730007 & Up

№

Артикул

Название
1A

258-859232T15 FLYWHEEL ASSEMBLY (DESIGN I)

FLYWHEEL ASSEMBLY (DESIGN I)
1

258-859232T15 FLYWHEEL (DESIGN II)

FLYWHEEL (DESIGN II)
2

10-97359A1 SCREW ASSEMBLY, FLYWHEEL TO CRANKSHAFT

SCREW ASSEMBLY, FLYWHEEL TO CRANKSHAFT
3

12-86496 WASHER, FLYWHEEL SCREW

WASHER, FLYWHEEL SCREW
4

43-99301 RING GEAR, FLYWHEEL -ELECTRIC

RING GEAR, FLYWHEEL -ELECTRIC
5

10-88190313 SCREW, (M5 x 13), RING GEAR TO FLYWHEEL -ELECTRIC

SCREW, (M5 x 13), RING GEAR TO FLYWHEEL -ELECTRIC
6

464-8978T2 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY
7

822445A1 WEAR SLEEVE

WEAR SLEEVE
8

26-85107 SEAL, Oil, CRANKSHAFT - LOWER

SEAL, Oil, CRANKSHAFT - LOWER
9

31-85113T BEARING, Roller, LOWER

BEARING, Roller, LOWER
10

31-85114T BEARING, Roller - Upper, UPPER

BEARING, Roller - Upper, UPPER
11

26-859741 SEAL, Oil, CRANKSHAFT-UPPER

SEAL, Oil, CRANKSHAFT-UPPER
12

8M0113968 BEARING ASSEMBLY, CENTER MAIN

BEARING ASSEMBLY, CENTER MAIN
13

28-20094 KEY, Woodruff, FLYWHEEL DRIVE

KEY, Woodruff, FLYWHEEL DRIVE
14

767-9104T19 PISTON ASSEMBLY
(See Note)

PISTON ASSEMBLY
(See Note)
15

40-828119 LOCK RING, PISTON PIN
(See Note)

LOCK RING, PISTON PIN
(See Note)
16

39-827491A12 RING SET, Piston
(See Note)

RING SET, Piston
(See Note)
17

630-8835A4 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY
18

29-98295 BEARING, Needle, PISTON END

BEARING, Needle, PISTON END
19

12-8M0012294 BEARING, LOCATING - NEEDLE BEARING

BEARING, LOCATING - NEEDLE BEARING
20

31-879877A1 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller
21

10-4008225 SCREW, (M6 x 25) (METRIC THREAD)

SCREW, (M6 x 25) (METRIC THREAD)
21

F1012 SCREW (STANDARD THREAD)

SCREW (STANDARD THREAD)
-

879732T89 POWERHEAD ASSEMBLY, COMPLETE

POWERHEAD ASSEMBLY, COMPLETE
-

879732T89 POWERHEAD ASSEMBLY
SN# 0D116956 THRU 0D117955

POWERHEAD ASSEMBLY
SN# 0D116956 THRU 0D117955
-

27-41499A88 GASKET SET

GASKET SET
