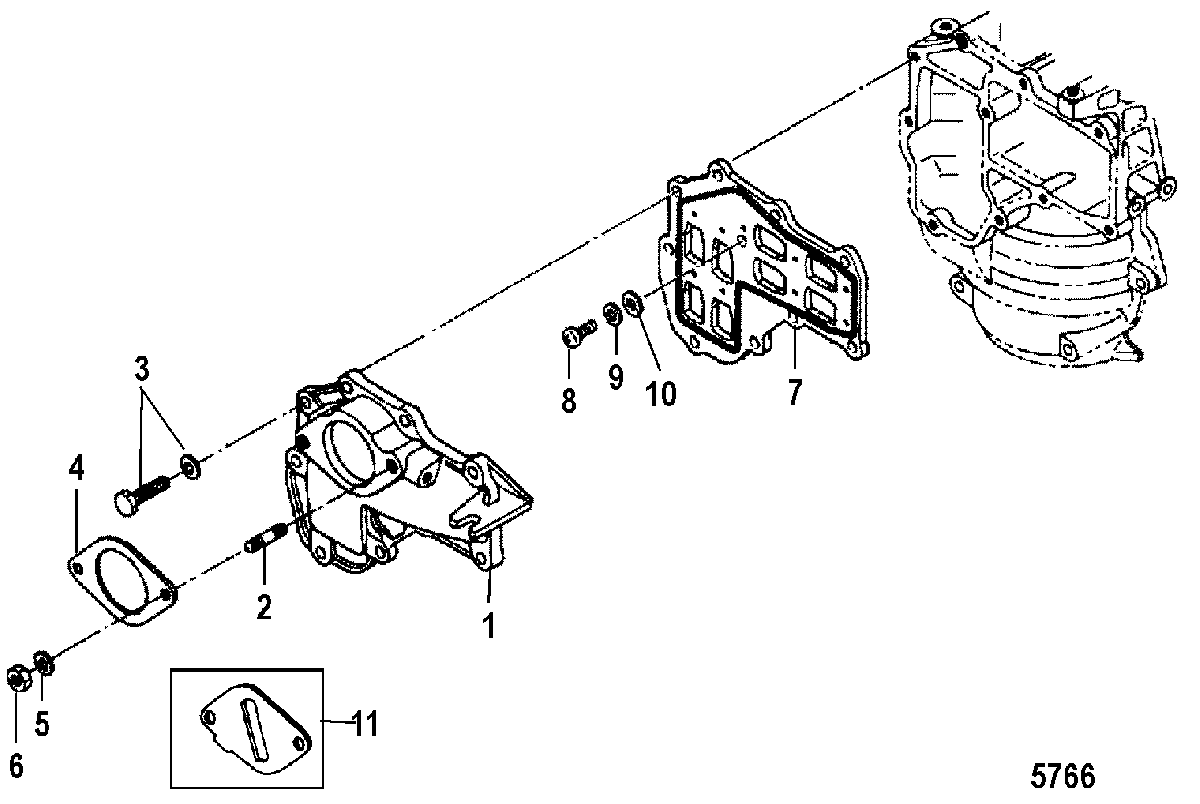

Manifold/Reed для Mariner - 25 (2 CYL.)(2-STROKE)(International) 0N055505 & Up

  • №
    Артикул
    Название
  • 1
    8M0130960 MANIFOLD ASSEMBLY, Inlet
    MANIFOLD ASSEMBLY, Inlet
  • 2
    16-8M0106728 STUD
    STUD
  • 3
    10-168284 BOLT
    BOLT
  • 4
    27-853702007 GASKET
    (30) SN# 0N076150 & Below
    GASKET
    (30) SN# 0N076150 & Below
  • 4
    27-853702007 GASKET
    (30) SN# 0N076151 & Up
    GASKET
    (30) SN# 0N076151 & Up
  • 5
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 6
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 7
    853719T REED BLOCK ASSEMBLY
    REED BLOCK ASSEMBLY
  • 8
    10-8230311 SCREW
    SCREW
  • 9
    13-16818 LOCKWASHER
    LOCKWASHER
  • 10
    12-809931044 WASHER
    WASHER
  • 11
    885193 RESTRICTOR
    (25)
    RESTRICTOR
    (25)
  • -
    853780A1 REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
  • -
    27-8M0119225 GASKET SET, Powerhead
    SN# 0N076150 & Below
    GASKET SET, Powerhead
    SN# 0N076150 & Below
  • -
    27-8M0119225 GASKET SET, Powerhead
    SN# 0N076151 & Up
    GASKET SET, Powerhead
    SN# 0N076151 & Up
  • -
    8M0119221 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
