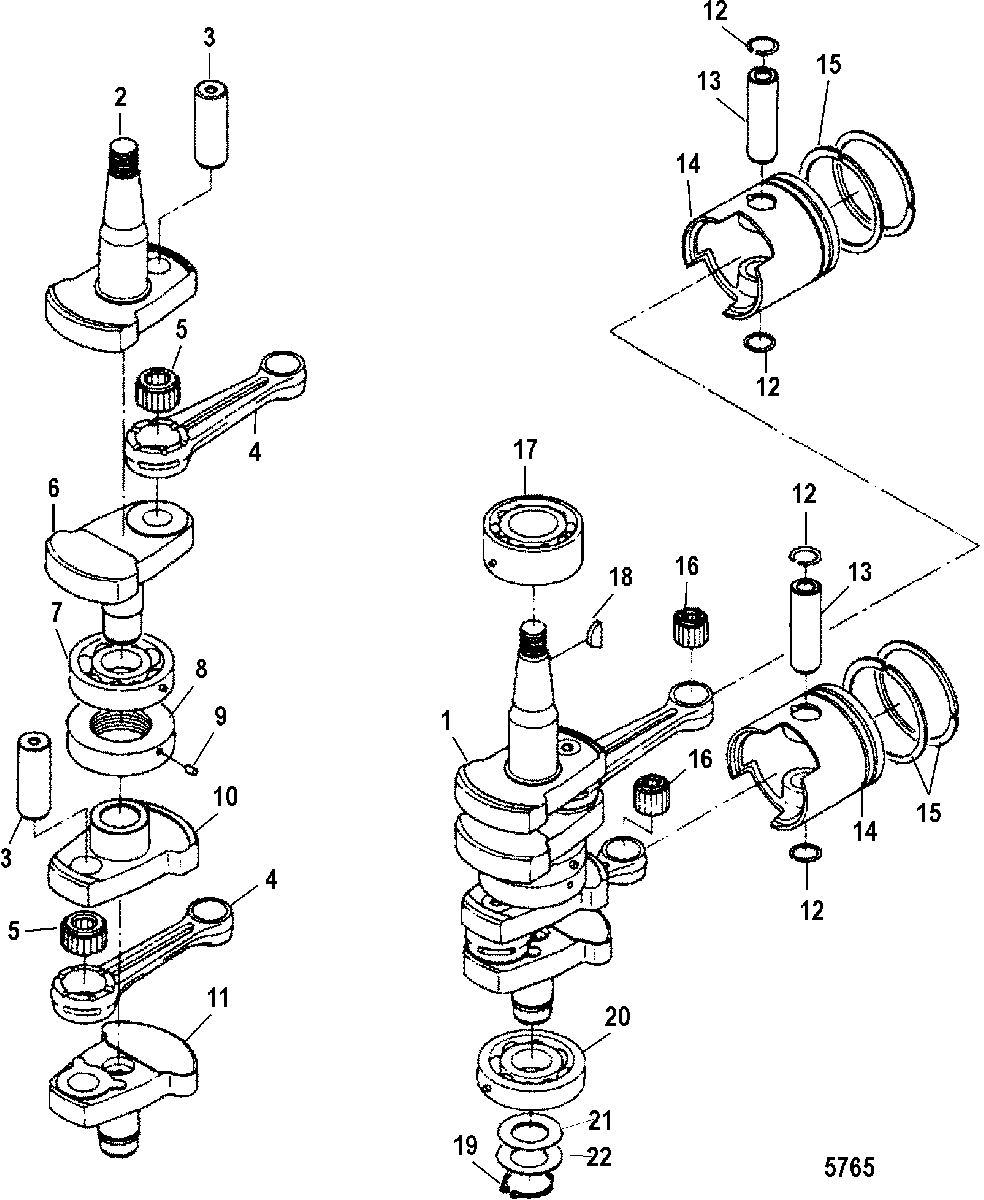

Crankshaft, Pistons and Connecting Rod для Mariner - 25 (2 CYL.)(2-STROKE)(International) 0N055505 & Up

  • №
    Артикул
    Название
  • 1
    474-803672A07 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    463-813044A01 CRANKSHAFT
    CRANKSHAFT
  • 3
    813046T01 PIN, Crank
    PIN, Crank
  • 4
    629-813047T01 CONNECTING ROD
    CONNECTING ROD
  • 5
    31-8130482 BEARING, Needle
    BEARING, Needle
  • 6
    463-8130442 CRANKSHAFT
    CRANKSHAFT
  • 7
    30-16049T02 BEARING, Ball
    BEARING, Ball
  • 8
    26-853707A1 SEAL KIT
    SEAL KIT
  • 9
    17-161791 PIN
    PIN
  • 10
    463-8M0090848 CRANKSHAFT
    CRANKSHAFT
  • 11
    463-813045T01 CRANKSHAFT
    CRANKSHAFT
  • -
    700-8M0082174 PISTON ASSEMBLY
    (Standard), services one piston SN# 0N062931 & Up
    PISTON ASSEMBLY
    (Standard), services one piston SN# 0N062931 & Up
  • -
    700-8M0082175 PISTON ASSEMBLY
    (.5 Oversize), services one piston SN# 0N062931 & Up
    PISTON ASSEMBLY
    (.5 Oversize), services one piston SN# 0N062931 & Up
  • 12
    53-160571 CLIP
    CLIP
  • 13
    41-803680003 PIN, Piston
    PIN, Piston
  • 14
    779-879194T01 PISTON
    (Standard) SN# 0N062930 & Below
    PISTON
    (Standard) SN# 0N062930 & Below
  • 14
    779-879194T01 PISTON, Standard
    SN# 0N062931 & Up
    PISTON, Standard
    SN# 0N062931 & Up
  • 14
    96161 PISTON
    (.5mm Oversize) SN# 0N062930 & Below
    PISTON
    (.5mm Oversize) SN# 0N062930 & Below
  • 14
    779-804886T03 PISTON, .5 mm Oversize
    SN# 0N062931 & Up
    PISTON, .5 mm Oversize
    SN# 0N062931 & Up
  • 15
    39-8M0080351 RING SET, Piston
    (Standard) Services engine
    RING SET, Piston
    (Standard) Services engine
  • 15
    39-8M0080351 RING SET, Piston
    (Standard) Services one piston
    RING SET, Piston
    (Standard) Services one piston
  • 15
    39-8M0080350 RING SET, Piston
    (.5mm Oversize) Services engine
    RING SET, Piston
    (.5mm Oversize) Services engine
  • 15
    39-8M0080350 RING SET, Piston
    (.5mm Oversize) Services one piston
    RING SET, Piston
    (.5mm Oversize) Services one piston
  • 16
    31-8130483 BEARING, Needle
    BEARING, Needle
  • 17
    30-8M0119217 BEARING, Ball
    BEARING, Ball
  • 18
    28-160531 KEY
    KEY
  • 19
    53-853714 C CLIP
    C CLIP
  • 20
    30-16049T02 BEARING, Ball
    BEARING, Ball
  • 21
    15-853716 SHIM
    SHIM
  • 22
    23-853715 SPACER
    SPACER
  • -
    8M0119221 POWERHEAD ASSEMBLY
    SN# ON160572 & Below
    POWERHEAD ASSEMBLY
    SN# ON160572 & Below
  • -
    8M0119221 POWERHEAD ASSEMBLY
    SN# ON160573 & Up
    POWERHEAD ASSEMBLY
    SN# ON160573 & Up
