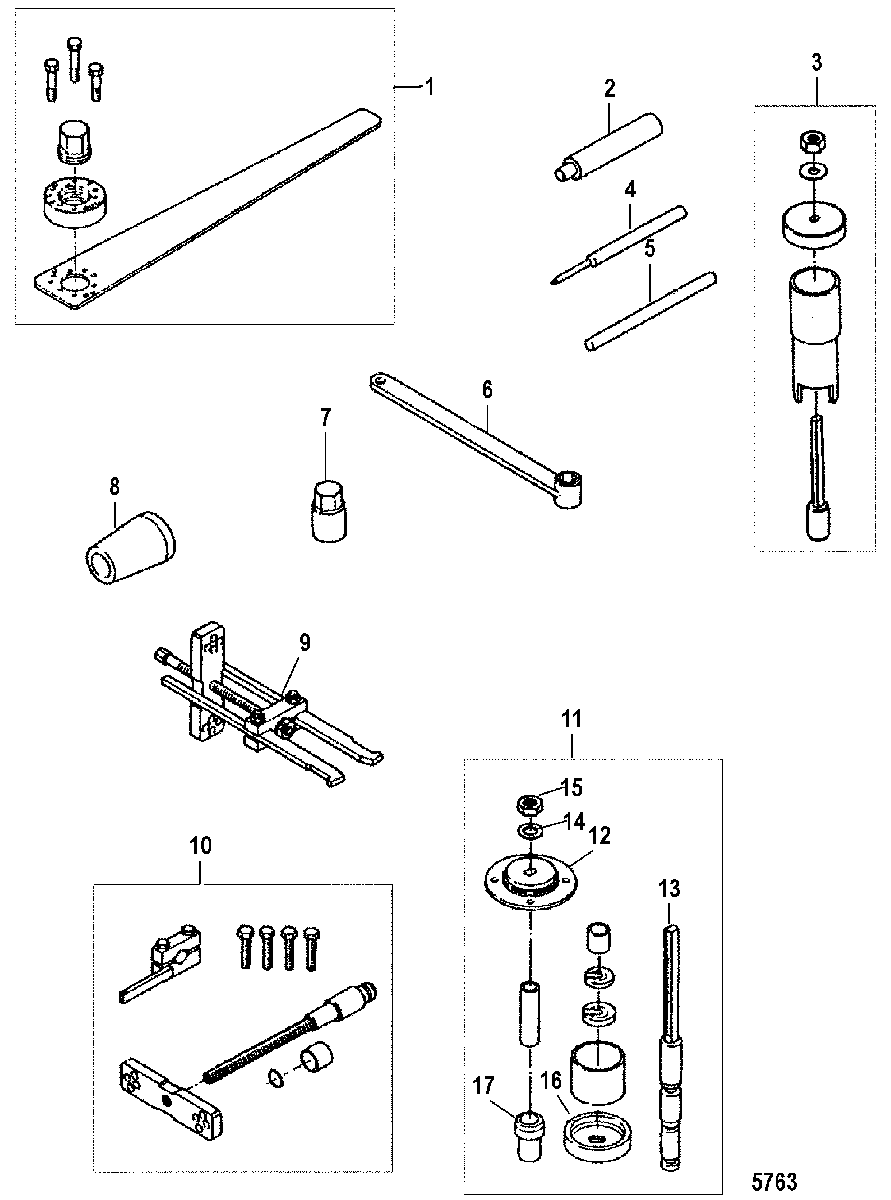

Tools для Mariner - 25 (2 CYL.) (International) 0N018456 THRU 0N055504

№

Артикул

Название
1

91-8M0059838 PULLER ASSEMBLY TOOL, Flywheel

PULLER ASSEMBLY TOOL, Flywheel
2

91-8539962 INSTALL/REMOVER TOOL, Piston Pin

INSTALL/REMOVER TOOL, Piston Pin
3

91-85399618 MOUNT RUBBER PULLER KIT

MOUNT RUBBER PULLER KIT
4

91-8539966 TOOL (For Removing)

TOOL (For Removing)
5

91-8539968 TOOL (For Replacing)

TOOL (For Replacing)
6

91-85399612 WRENCH TOOL

WRENCH TOOL
7

91-85399614 SOCKET TOOL, Bevel Gear B Nut

SOCKET TOOL, Bevel Gear B Nut
8

91-85399610 INSTALL TOOL, Clutch Pin

INSTALL TOOL, Clutch Pin
9

91-8M0060180 PULLER TOOL, Bearing

PULLER TOOL, Bearing
10

91-85399616 BACKLASH MEASURING TOOL

BACKLASH MEASURING TOOL
11

91-895195A01 PULLER KIT, Needle Roller Bearing

PULLER KIT, Needle Roller Bearing
12

91-8031332 FLANGE

FLANGE
13

91-8031333 SHAFT

SHAFT
14

12-1614010 WASHER

WASHER
15

11-85372220 NUT

NUT
16

91-8031336 FLANGE

FLANGE
17

91-8031337 GUIDE TOOL

GUIDE TOOL
-

91-24697 EXPANDER TOOL, Piston Ring
(Not Shown)

EXPANDER TOOL, Piston Ring
(Not Shown)
-

91-895212 TOOL, Bearing Outer Press Rod
(Not Shown)

TOOL, Bearing Outer Press Rod
(Not Shown)
-

91-895213001 TOOL, Bearing Outer Press Plate
(Not Shown)

TOOL, Bearing Outer Press Plate
(Not Shown)
-

91-895214 TOOL, Bearing Outer Press Guide
(Not Shown)

TOOL, Bearing Outer Press Guide
(Not Shown)
-

91-895215 TOOL, Bevel Gear A Set
(Not Shown)

TOOL, Bevel Gear A Set
(Not Shown)
-

91-895216004 TOOL, Backlash Measuring Collar
(Not Shonw)

TOOL, Backlash Measuring Collar
(Not Shonw)
-

91-895217 TOOL, Conedisk Spring, D-12
(Not Shown)

TOOL, Conedisk Spring, D-12
(Not Shown)
-

91-895218 TOOL, Shimming Gauge
(Not Shown)

TOOL, Shimming Gauge
(Not Shown)
-

91-895219 TOOL, Thickness Gauge
(Not Shown)

TOOL, Thickness Gauge
(Not Shown)
-

91-8M0059838 TOOL, Flywheel Puller
(Not Shown)

TOOL, Flywheel Puller
(Not Shown)
-

91-8M0059838 TOOL, Flywheel Stripper
(Not Shown)

TOOL, Flywheel Stripper
(Not Shown)
