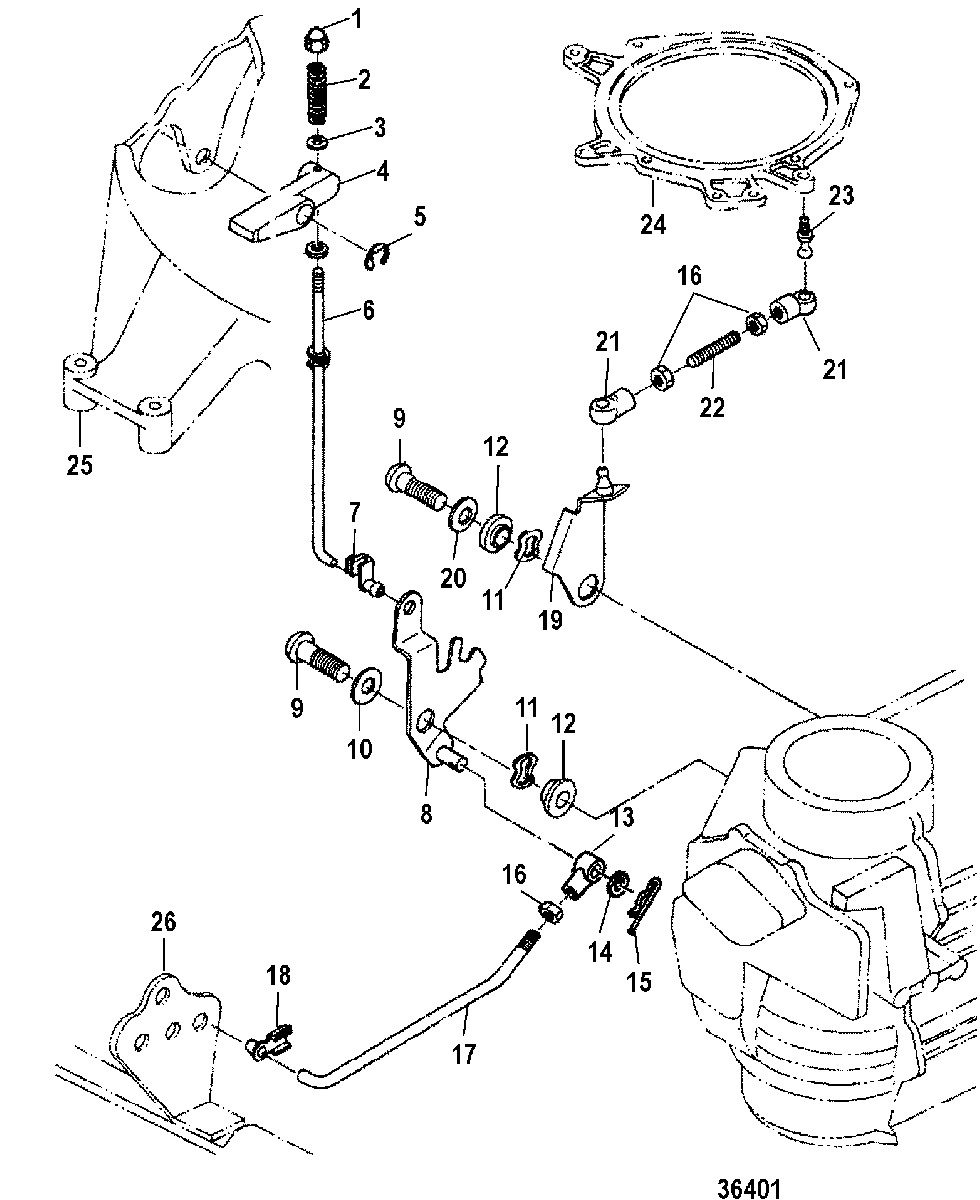

Starter Lock для Mariner - 25 (2 CYL.) (International) 0N018456 THRU 0N055504

  • №
    Артикул
    Название
  • 1
    11-8537229 CAP NUT
    CAP NUT
  • 2
    24-8126452 SPRING
    SPRING
  • 3
    12-16335 WASHER
    WASHER
  • 4
    853761 LOCK LEVER, Starter
    LOCK LEVER, Starter
  • 5
    53-160572 E RING
    E RING
  • 6
    853747A11 LOCK ROD, Starter
    LOCK ROD, Starter
  • 7
    176431 SNAP, Link Rod
    SNAP, Link Rod
  • 8
    853747A11 LEVER, Interlock
    LEVER, Interlock
  • 9
    10-162453 SCREW
    SCREW
  • 10
    12-953921 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 11
    13-8537232 WAVE WASHER
    WAVE WASHER
  • 12
    23-8537433 BUSHING
    BUSHING
  • 13
    8537451 ROD JOINT
    ROD JOINT
  • 14
    12-953925 WASHER
    WASHER
  • 15
    18-8150262 COTTER PIN
    COTTER PIN
  • 16
    11-16081 NUT
    NUT
  • 17
    8537472 ROD, Starter Lock Arm
    ROD, Starter Lock Arm
  • 18
    853748 SNAP, Link Rod
    SNAP, Link Rod
  • 19
    8M0096696 LEVER, Stop
    LEVER, Stop
  • 20
    12-16826 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 21
    853745 CAP
    CAP
  • 22
    8537461 ROD, Throttle Stop Arm
    ROD, Throttle Stop Arm
  • 23
    853744001 BALL JOINT
    BALL JOINT
  • 24
    853710 SET RING
    (Shown as Reference #14 on Cylinder Block)
    SET RING
    (Shown as Reference #14 on Cylinder Block)
  • 25
    812632T01 HOUSING, Starter
    (Shown as Reference #1 on Recoil Starter)
    HOUSING, Starter
    (Shown as Reference #1 on Recoil Starter)
  • 26
    853766 PLATE, Stopper
    (Shown as Reference #38 on Drive Shaft Housing)
    PLATE, Stopper
    (Shown as Reference #38 on Drive Shaft Housing)
