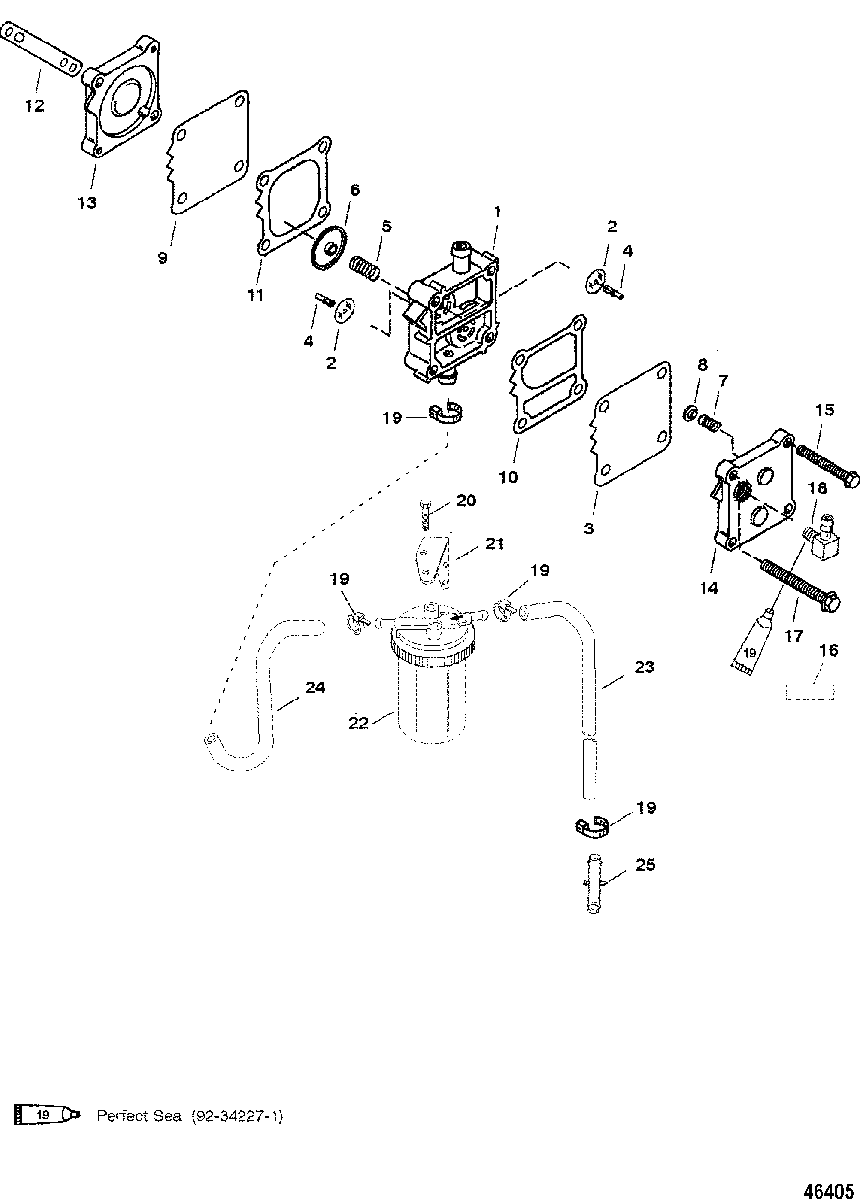

FUEL PUMP для Mariner - 225 MARATHON (3.0L CARB) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • -
    14360A78 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 1
    NSS NOT SOLD SEPARATE, Fuel Pump
    NOT SOLD SEPARATE, Fuel Pump
  • 2
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 4
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 5
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 6
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 7
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 8
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 9
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 10
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 11
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 12
    27-987691 GASKET
    GASKET
  • 13
    144303 BASE
    BASE
  • 14
    987752 PLATE
    PLATE
  • 15
    10-82104540 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 16
    NSS NOT SOLD SEPARATE, Decal-Assembled in Mexico
    NOT SOLD SEPARATE, Decal-Assembled in Mexico
  • 17
    10-82130050 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 18
    22-629101 FITTING, Elbow - 90 Degree (.125-27)
    FITTING, Elbow - 90 Degree (.125-27)
  • 19
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 20
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 21
    826635 BRACKET
    BRACKET
  • 22
    35-826634T01 FILTER, Fuel
    FILTER, Fuel
  • 23
    32-830769 HOSE (INLET)
    HOSE (INLET)
  • 24
    32-830770 HOSE (OUTLET)
    HOSE (OUTLET)
  • 25
    22-822769 CONNECTOR
    CONNECTOR
  • -
    27-814195A93 GASKET SET
    GASKET SET
  • -
    809794R97 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    809793A00 POWERHEAD ASSEMBLY
    (SEAPRO/MARATHON)
    POWERHEAD ASSEMBLY
    (SEAPRO/MARATHON)
