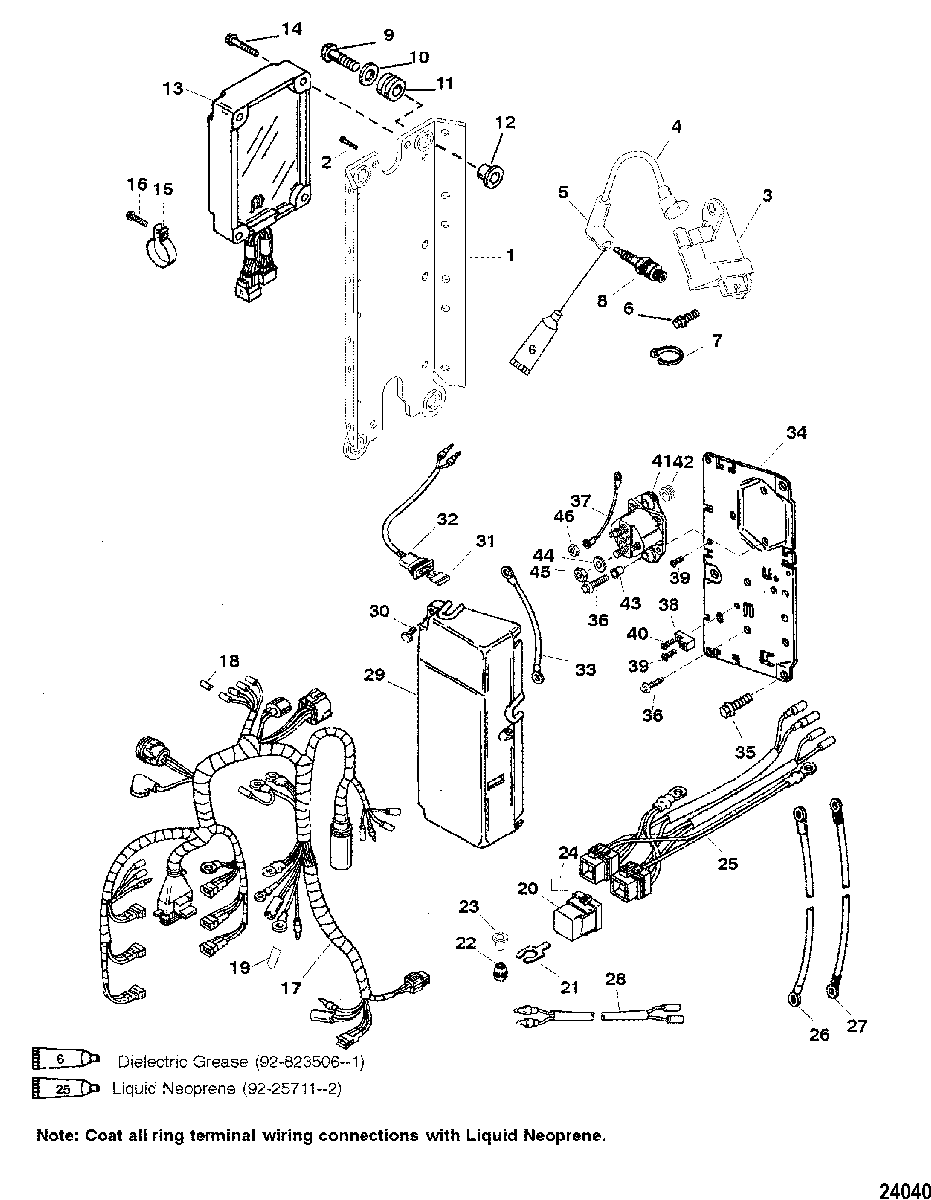

ELECTRICAL COMPONENTS для Mariner - 225 MARATHON (3.0L CARB) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    825296T1 PLATE, Electrical Mounting
    PLATE, Electrical Mounting
  • 2
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 3
    827509T7 CDM MODULE ASSEMBLY
    CDM MODULE ASSEMBLY
  • 4
    84-857124A1 CABLE ASSEMBLY, Hi-Tension
    (SINGLE CABLE)
    CABLE ASSEMBLY, Hi-Tension
    (SINGLE CABLE)
  • 5
    85-857074A1 BOOT/TERMINAL KIT
    BOOT/TERMINAL KIT
  • 6
    10-82129116 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 7
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 8
    33-941 SPARK PLUG (CHAMPION #QL77CC)
    SPARK PLUG (CHAMPION #QL77CC)
  • 9
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 10
    12-49436 WASHER
    WASHER
  • 11
    25-825380001 GROMMET
    GROMMET
  • 12
    23-19064 BUSHING
    BUSHING
  • 13
    830044T07 ECU, Engine Control Unit
    (NON SEAPRO/MARATHON)
    ECU, Engine Control Unit
    (NON SEAPRO/MARATHON)
  • 13
    830044T16 ECU, Engine Control Unit
    (SEAPRO/MARATHON)
    ECU, Engine Control Unit
    (SEAPRO/MARATHON)
  • 14
    10-82129145 SCREW, (M6 x 45)
    SCREW, (M6 x 45)
  • 15
    54-826188 CLAMP
    CLAMP
  • 16
    10-82104520 SCREW, (M5 x 20) (M5 X 20)
    SCREW, (M5 x 20) (M5 X 20)
  • 17
    84-825433A10 HARNESS ASSEMBLY, Ignition
    HARNESS ASSEMBLY, Ignition
  • 18
    13541 PLUG, Male
    PLUG, Male
  • 19
    13540 CAP, Female
    CAP, Female
  • 20
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 21
    828102 BRACKET
    BRACKET
  • 22
    25-818967 GROMMET
    GROMMET
  • 23
    23-818968 BUSHING
    BUSHING
  • 24
    NSS NOT SOLD SEPARATE, Decal-Trim Relay
    NOT SOLD SEPARATE, Decal-Trim Relay
  • 25
    84-826802A2 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
  • 26
    84-88439A34 CABLE ASSEMBLY, Positive - Battery
    CABLE ASSEMBLY, Positive - Battery
  • 27
    84-88439A24 CABLE ASSEMBLY, Negative - Battery
    CABLE ASSEMBLY, Negative - Battery
  • 28
    84-827356A2 HARNESS ASSEMBLY (26 IN.)
    (OIL INJECTION)
    HARNESS ASSEMBLY (26 IN.)
    (OIL INJECTION)
  • 29
    8216091 COVER
    COVER
  • 30
    10-82239320 SCREW, (M5 x 20) (M5 X 20)
    SCREW, (M5 x 20) (M5 X 20)
  • 31
    88-812619 FUSE, Yellow - 20 Ampere
    FUSE, Yellow - 20 Ampere
  • 32
    88-19637 SOCKET, Fuse
    SOCKET, Fuse
  • 33
    84-93388A8 CABLE ASSEMBLY, (12.5 Inchs) Black
    CABLE ASSEMBLY, (12.5 Inchs) Black
  • 34
    8212282 PLATE, Solenoid Mounting
    PLATE, Solenoid Mounting
  • 35
    10-82155025 SCREW, (M8 x 25) Stainless Steel
    SCREW, (M8 x 25) Stainless Steel
  • 36
    10-82129125 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 37
    84-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black
    CABLE ASSEMBLY, (4.00 Inches) Black
  • 38
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 39
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 40
    10-878607 SCREW, (#10-16 x .380)
    SCREW, (#10-16 x .380)
  • 41
    89-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
    SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
  • 42
    25-822179 GROMMET
    GROMMET
  • 43
    23-818968 BUSHING
    BUSHING
  • 44
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 45
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 46
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
