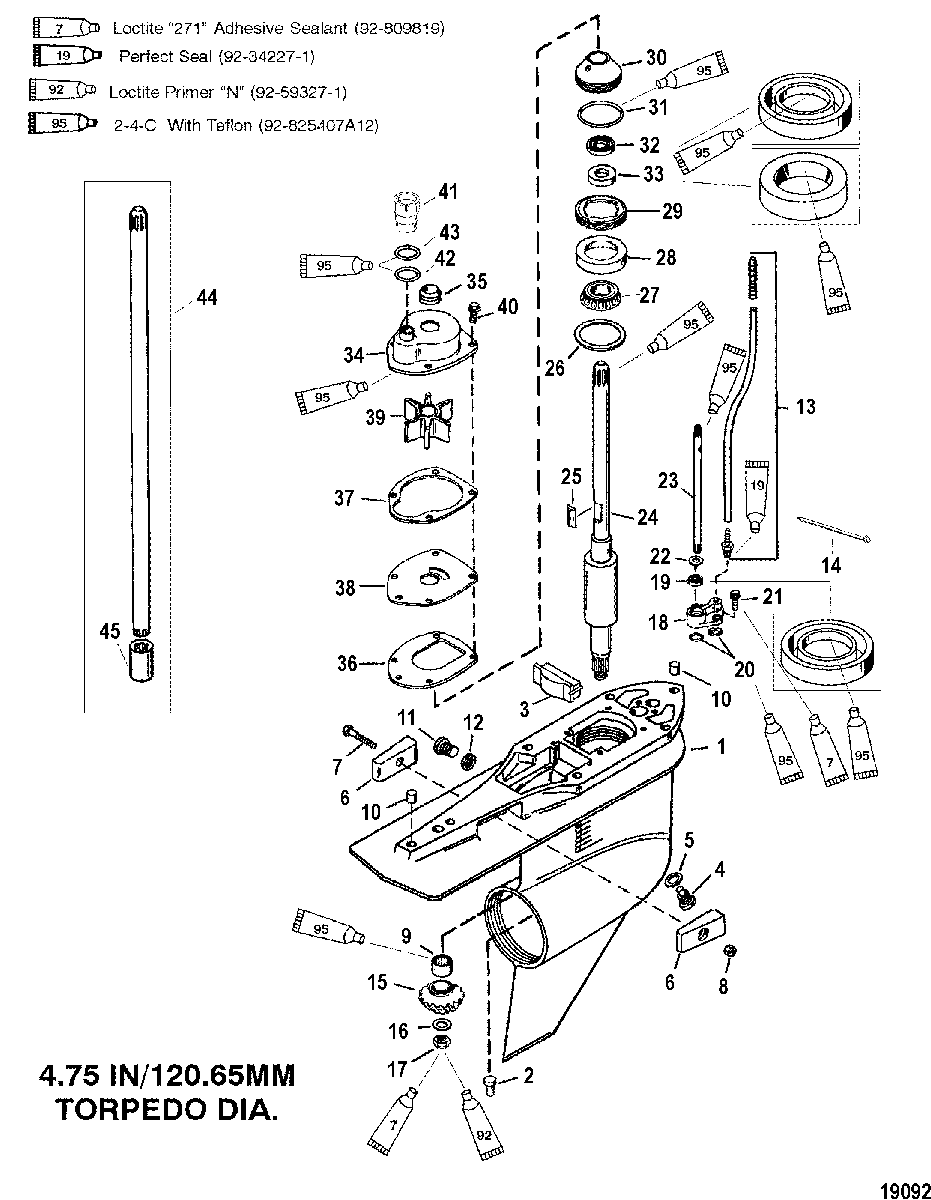

Gear Housing(Driveshaft)(Standard Rotation) для Mariner - 225 (DFI) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    1623-822442T77 GEAR HOUSING ASSEMBLY
    (BLACK-BASIC)
    GEAR HOUSING ASSEMBLY
    (BLACK-BASIC)
  • 1
    1623-822442T84 GEAR HOUSING ASSEMBLY
    (GRAY-BASIC)
    GEAR HOUSING ASSEMBLY
    (GRAY-BASIC)
  • 2
    17-379721 PIN
    PIN
  • 3
    821526001 FILLER BLOCK
    FILLER BLOCK
  • 4
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 5
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 6
    97-826134Q ANODE
    ANODE
  • 7
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 8
    11-401386 NUT, (M6)
    NUT, (M6)
  • 9
    31-42647A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 10
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 11
    10-79953Q04 SCREW KIT, (.375-16 x .250)
    SCREW KIT, (.375-16 x .250)
  • 12
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 13
    22-85822A10 CONNECTOR ASSEMBLY
    (L/XL)
    CONNECTOR ASSEMBLY
    (L/XL)
  • 13
    22-85822A6 CONNECTOR
    (XXL)
    CONNECTOR
    (XXL)
  • 14
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 15
    NSS NOT SOLD SEPARATE, Pinion Gear (PART OF 43-828168A2)
    (1.75:1 - 12/21)
    NOT SOLD SEPARATE, Pinion Gear (PART OF 43-828168A2)
    (1.75:1 - 12/21)
  • 16
    12-92721 WASHER
    WASHER
  • 17
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 18
    23-815921A4 BUSHING ASSEMBLY
    BUSHING ASSEMBLY
  • 19
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 20
    25-36318 O-RING, (.799)
    O-RING, (.799)
  • 21
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 22
    12-77674 WASHER
    WASHER
  • 23
    824145 SHIFT SHAFT (LOWER)
    SHIFT SHAFT (LOWER)
  • 24
    45-8M0140442 DRIVESHAFT (LOWER)
    DRIVESHAFT (LOWER)
  • 25
    28-8M0032833 KEY
    KEY
  • 26
    15-8M0063267 SHIM SET
    SHIM SET
  • 27
    31-36387A1 BEARING, Roller
    BEARING, Roller
  • 28
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 29
    8245191 RETAINER
    RETAINER
  • 30
    807929A1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 31
    25-896523 O-RING, (2.175 x .175)
    O-RING, (2.175 x .175)
  • 32
    26-66302 SEAL, Oil
    SEAL, Oil
  • 33
    26-66302 SEAL, Oil
    SEAL, Oil
  • 34
    817275A1 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 35
    26-816575A2 SEAL KIT
    SEAL KIT
  • 36
    27-430331 GASKET
    GASKET
  • 37
    27-8172771 GASKET
    GASKET
  • 38
    8172761 FACEPLATE
    FACEPLATE
  • 39
    47-43026T2 IMPELLER
    IMPELLER
  • 40
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 41
    832942A1 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 42
    25-21836 O-RING, (.796 x .139)
    O-RING, (.796 x .139)
  • 43
    25-35027 O-RING, (1.046)
    O-RING, (1.046)
  • 44
    45-827754A1 EXTENSION KIT, Driveshaft (LONG-20 IN.)
    (SEE NOTE)
    EXTENSION KIT, Driveshaft (LONG-20 IN.)
    (SEE NOTE)
  • 44
    45-827755A1 EXTENSION KIT, Driveshaft (X-LONG-25 IN.)
    (SEE NOTE)
    EXTENSION KIT, Driveshaft (X-LONG-25 IN.)
    (SEE NOTE)
  • 44
    45-826353A1 EXTENSION KIT, Driveshaft (XX-LONG-30 IN.)
    (SEE NOTE)
    EXTENSION KIT, Driveshaft (XX-LONG-30 IN.)
    (SEE NOTE)
  • 45
    823902 COUPLING
    COUPLING
  • -
    26-816575A4 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
  • -
    817275A5 REBUILD KIT, Water Pump
    REBUILD KIT, Water Pump
