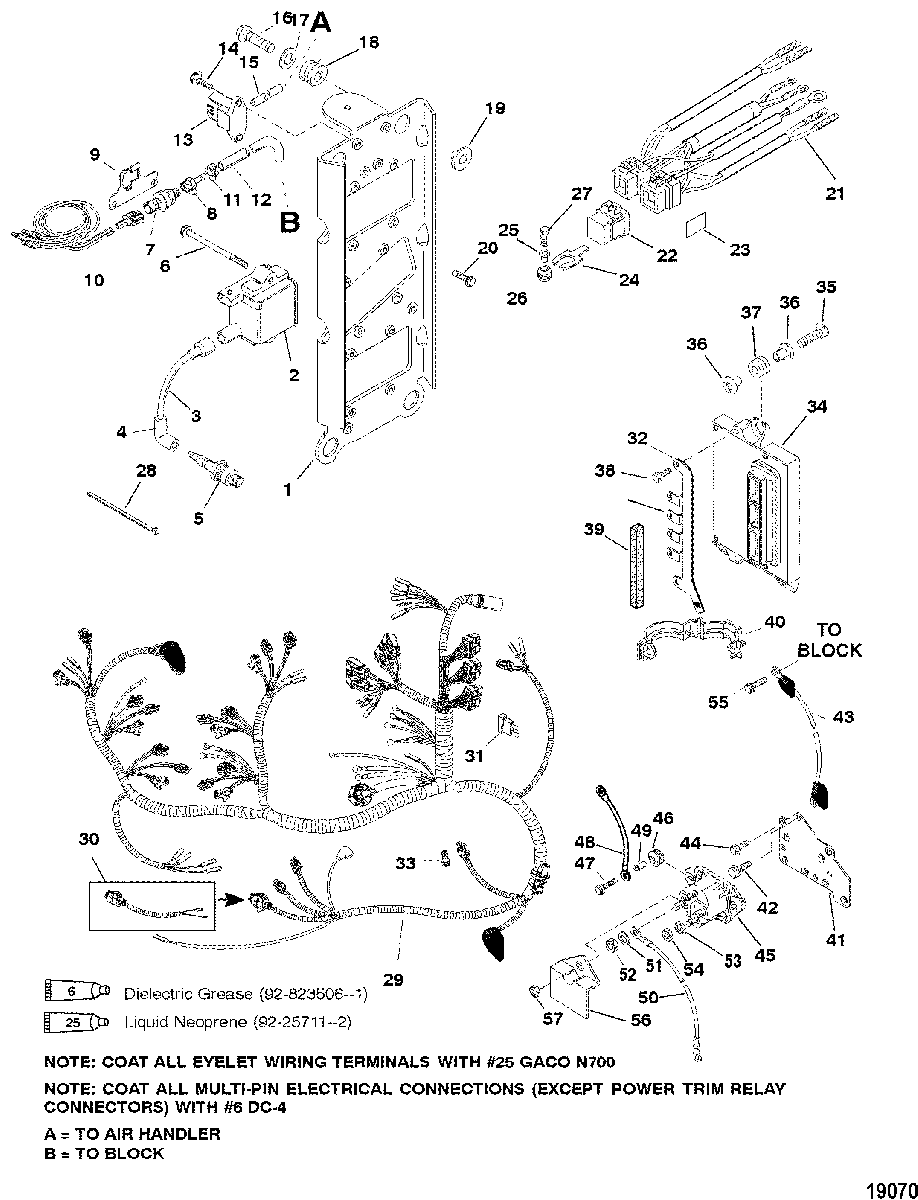

Electrical Components для Mariner - 225 (DFI) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    850295T4 PLATE, Electrical Mounting
    PLATE, Electrical Mounting
  • 2
    339-856991A1 COIL, Ignition
    COIL, Ignition
  • 3
    84-821945A63 CABLE ASSEMBLY, Hi Tension
    CABLE ASSEMBLY, Hi Tension
  • 4
    85-63709A1 BOOT/TERMINAL KIT
    BOOT/TERMINAL KIT
  • 5
    33-889597Q SPARK PLUG
    (HEAVY DUTY)
    SPARK PLUG
    (HEAVY DUTY)
  • 5
    33-8557171 SPARK PLUG
    (LIGHT DUTY)
    SPARK PLUG
    (LIGHT DUTY)
  • 6
    10-82129130 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 7
    8M6000628 SENSOR
    SENSOR
  • 8
    22-856594 FITTING, Barbed
    FITTING, Barbed
  • 9
    856600 RETAINER
    RETAINER
  • 10
    84-856567A1 HARNESS ASSEMBLY, Adaptor
    HARNESS ASSEMBLY, Adaptor
  • 11
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 12
    32-9912878 HOSE, (.187) (26.00 Inches Bulk) (15 IN.)
    HOSE, (.187) (26.00 Inches Bulk) (15 IN.)
  • 13
    825762 SENSOR, MAP
    SENSOR, MAP
  • 14
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 15
    32-8M0054152 TUBING, (36.00 Inches Bulk) (28-1/2 IN.)
    TUBING, (36.00 Inches Bulk) (28-1/2 IN.)
  • 16
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 17
    12-49436 WASHER
    WASHER
  • 18
    25-833155 GROMMET
    GROMMET
  • 19
    23-8502341 BUSHING
    BUSHING
  • 20
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 21
    84-819514A14 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
  • 22
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 23
    NSS NOT SOLD SEPARATE, Decal-Trim Relay
    NOT SOLD SEPARATE, Decal-Trim Relay
  • 24
    828102 BRACKET
    BRACKET
  • 25
    23-818968 BUSHING
    BUSHING
  • 26
    25-818967 GROMMET
    GROMMET
  • 27
    10-82129125 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 28
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 29
    84-850385A2 HARNESS ASSEMBLY, Engine
    HARNESS ASSEMBLY, Engine
  • 30
    84-856624A2 HARNESS ASSEMBLY (SERVICE ITEM)
    HARNESS ASSEMBLY (SERVICE ITEM)
  • 31
    88-812619 FUSE, Yellow - 20 Ampere
    FUSE, Yellow - 20 Ampere
  • 32
    8289471 BRACKET, Fuse Holder
    BRACKET, Fuse Holder
  • 33
    10-855634 SCREW (M4 X .7)
    SCREW (M4 X .7)
  • 34
    858891A23 ECU, Engine Control Unit
    (225)
    ECU, Engine Control Unit
    (225)
  • 34
    858891A22 ECU, Engine Control Unit
    (200
    ECU, Engine Control Unit
    (200
  • 35
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 36
    23-8318701 BUSHING
    BUSHING
  • 37
    25-834985 GROMMET
    GROMMET
  • 38
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 39
    830897 PAD
    PAD
  • 40
    54-833136 CLIP
    CLIP
  • 41
    8331371 PLATE, Solenoid Mounting
    PLATE, Solenoid Mounting
  • 42
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 43
    84-88439A26 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 44
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 45
    89-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
    SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
  • 46
    25-822179 GROMMET
    GROMMET
  • 47
    10-82129125 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 48
    84-93388A14 CABLE ASSEMBLY (BLACK)
    CABLE ASSEMBLY (BLACK)
  • 49
    23-818968 BUSHING
    BUSHING
  • 50
    84-88439A25 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 51
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 52
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 53
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 54
    11-813938 CAP NUT, (#10-32)
    CAP NUT, (#10-32)
  • 55
    10-81893412 SCREW, (M8 x 12)
    SCREW, (M8 x 12)
  • 56
    85-78866 INSULATOR
    INSULATOR
  • 57
    11-45076 NUT, (#10-32) Brass (BRASS)
    NUT, (#10-32) Brass (BRASS)
