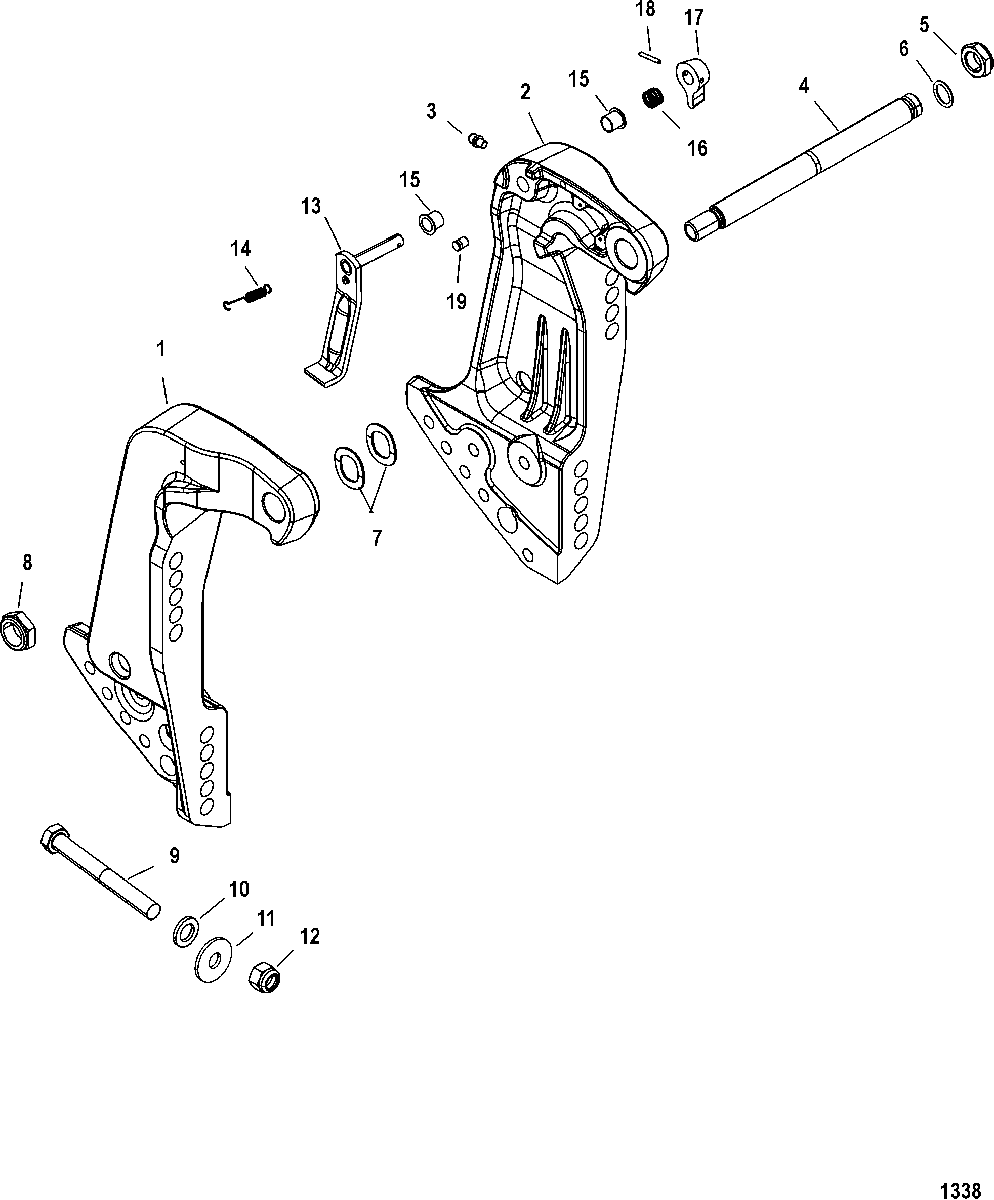

Transom Brackets для Mariner - 225 (3.0L EFI) 0T801000 THRU 1B417701

  • №
    Артикул
    Название
  • 1
    3426-828334T03 BRACKET ASSEMBLY, Transom-Starboard
    BRACKET ASSEMBLY, Transom-Starboard
  • 2
    3425-828333T08 BRACKET ASSEMBLY, Transom-Port
    BRACKET ASSEMBLY, Transom-Port
  • 3
    22-98727 FITTING, Grease (PORT)
    FITTING, Grease (PORT)
  • 4
    826125A1 TILT TUBE
    TILT TUBE
  • 5
    11-826135 NUT, (1.00-14) Nylon Insert
    NUT, (1.00-14) Nylon Insert
  • 6
    25-45711 O-RING, (.612 x .103)
    O-RING, (.612 x .103)
  • 7
    13-88750 WASHER
    WASHER
  • 8
    11-826164 NUT, (.875-14)
    NUT, (.875-14)
  • 9
    10-677551 SCREW, (.500-20 x 4.500)
    SCREW, (.500-20 x 4.500)
  • 10
    12-54012 WASHER, (.530 x .870 x .105) Stainless Steel
    WASHER, (.530 x .870 x .105) Stainless Steel
  • 11
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 12
    11-82671117 NUT, (.500-20)
    NUT, (.500-20)
  • 13
    8M0115104 LEVER ASSEMBLY, Tilt Lock
    LEVER ASSEMBLY, Tilt Lock
  • 14
    24-830899 SPRING, Tension
    SPRING, Tension
  • 15
    23-65830 NYLINER
    NYLINER
  • 16
    24-830900 SPRING, Compression
    SPRING, Compression
  • 17
    99633 KNOB
    KNOB
  • 18
    17-99615 PIN, Groove
    PIN, Groove
  • 19
    17-893709 PIN
    PIN
