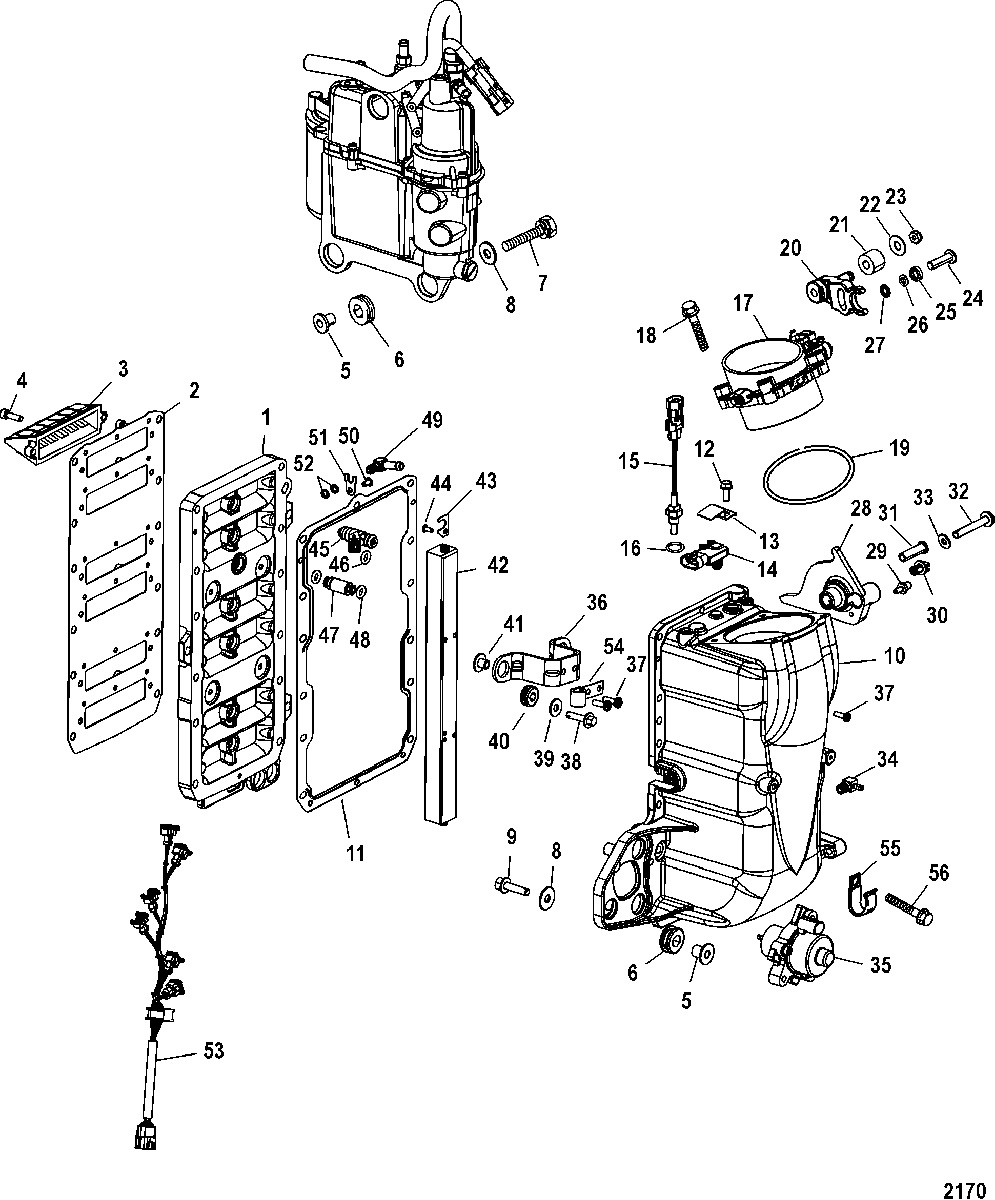

Fuel Management для Mariner - 225 (3.0L EFI) 0T801000 THRU 1B417701

  • №
    Артикул
    Название
  • -
    880004T08 MANAGEMENT ASSEMBLY, Fuel
    MANAGEMENT ASSEMBLY, Fuel
  • 1
    883951T1 ADAPTOR PLATE
    ADAPTOR PLATE
  • 2
    27-804680 GASKET
    GASKET
  • 3
    828623T4 REED BLOCK
    REED BLOCK
  • 4
    10-8555252 SCREW, (M6)
    SCREW, (M6)
  • 5
    23-855364 BUSHING
    BUSHING
  • 6
    25-855362001 GROMMET
    SN# 0T979999 & Below
    GROMMET
    SN# 0T979999 & Below
  • 6
    25-855362001 GROMMET
    SN# 0T980000 & Up
    GROMMET
    SN# 0T980000 & Up
  • 7
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 8
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 9
    10-81893430 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 10
    883950T1 PLENUM KIT, Air
    PLENUM KIT, Air
  • 11
    27-804679004 GASKET
    SN# 0T979999 & Below
    GASKET
    SN# 0T979999 & Below
  • 11
    27-804679004 GASKET
    SN# 0T980000 & Up
    GASKET
    SN# 0T980000 & Up
  • 12
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 13
    884522 BRACKET, MAP Sensor
    BRACKET, MAP Sensor
  • 14
    854445 SENSOR, MAP
    SENSOR, MAP
  • 15
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 16
    25-896699 O-RING, (.351 x .072)
    O-RING, (.351 x .072)
  • 17
    883949T1 THROTTLE BODY KIT
    THROTTLE BODY KIT
  • 18
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 19
    25-855426 O-RING
    O-RING
  • 20
    858851A03 LEVER ASSEMBLY, Throttle
    LEVER ASSEMBLY, Throttle
  • 21
    8M0072162 ROLLER
    ROLLER
  • 22
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 23
    11-826709104 NUT, (#8-32) Stainless Steel
    NUT, (#8-32) Stainless Steel
  • 24
    10-889354 SCREW, Special
    SCREW, Special
  • 25
    8M0095734 WASHER, Cupped
    WASHER, Cupped
  • 26
    8M0095734 WASHER, Spool
    WASHER, Spool
  • 27
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • 28
    858353A08 CAM ASSEMBLY
    SN# 0T979999 & Below
    CAM ASSEMBLY
    SN# 0T979999 & Below
  • 28
    858353A08 CAM ASSEMBLY
    SN# 0T980000 & Up
    CAM ASSEMBLY
    SN# 0T980000 & Up
  • 29
    8235694 BALL, Threaded
    BALL, Threaded
  • 30
    23-932481 BUSHING
    BUSHING
  • 31
    23-8807371 BUSHING
    BUSHING
  • 32
    10-40011155 SCREW, (M8 x 55) Stainless Steel
    SCREW, (M8 x 55) Stainless Steel
  • 33
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 34
    22-993211 FITTING
    FITTING
  • 35
    8M0128081 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 36
    883926 BRACKET
    BRACKET
  • 37
    10-883942 SCREW, (M4 x 16)
    SCREW, (M4 x 16)
  • 38
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 39
    12-4002316 WASHER
    WASHER
  • 40
    25-834985 GROMMET
    GROMMET
  • 41
    23-822003 BUSHING
    BUSHING
  • 42
    883952T1 FUEL RAIL
    FUEL RAIL
  • 43
    8833821 RETAINER
    RETAINER
  • 44
    10-840118 SCREW, (#8-32 x .380)
    SCREW, (#8-32 x .380)
  • 45
    840481T01 INJECTOR ASSEMBLY
    SN# 0T979999 & Below
    INJECTOR ASSEMBLY
    SN# 0T979999 & Below
  • 45
    840481T01 INJECTOR ASSEMBLY
    SN# 0T980000 & Up
    INJECTOR ASSEMBLY
    SN# 0T980000 & Up
  • 46
    25-895239A01 O-RING KIT
    O-RING KIT
  • 47
    8832151 TUBE
    TUBE
  • 48
    25-883355 O-RING
    O-RING
  • 49
    22-883940 FITTING
    FITTING
  • 50
    10-883376 SCREW, (#10-24 x .375)
    SCREW, (#10-24 x .375)
  • 51
    883382 RETAINER
    RETAINER
  • 52
    25-20385 O-RING, (.239 x .070)
    O-RING, (.239 x .070)
  • 53
    84-880745T1 HARNESS ASSEMBLY, Fuel Rail
    HARNESS ASSEMBLY, Fuel Rail
  • 54
    54-883941 CLAMP
    CLAMP
  • 55
    54-65292 J CLIP (Use where Applicable)
    J CLIP (Use where Applicable)
  • 56
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • -
    27-832934A00 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    883892A07 POWERHEAD ASSEMBLY
    (225)
    POWERHEAD ASSEMBLY
    (225)
  • -
    883893A07 POWERHEAD ASSEMBLY
    (3L Work)
    POWERHEAD ASSEMBLY
    (3L Work)
  • -
    883894A07 POWERHEAD ASSEMBLY
    (250)
    POWERHEAD ASSEMBLY
    (250)
  • -
    891823A07 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
