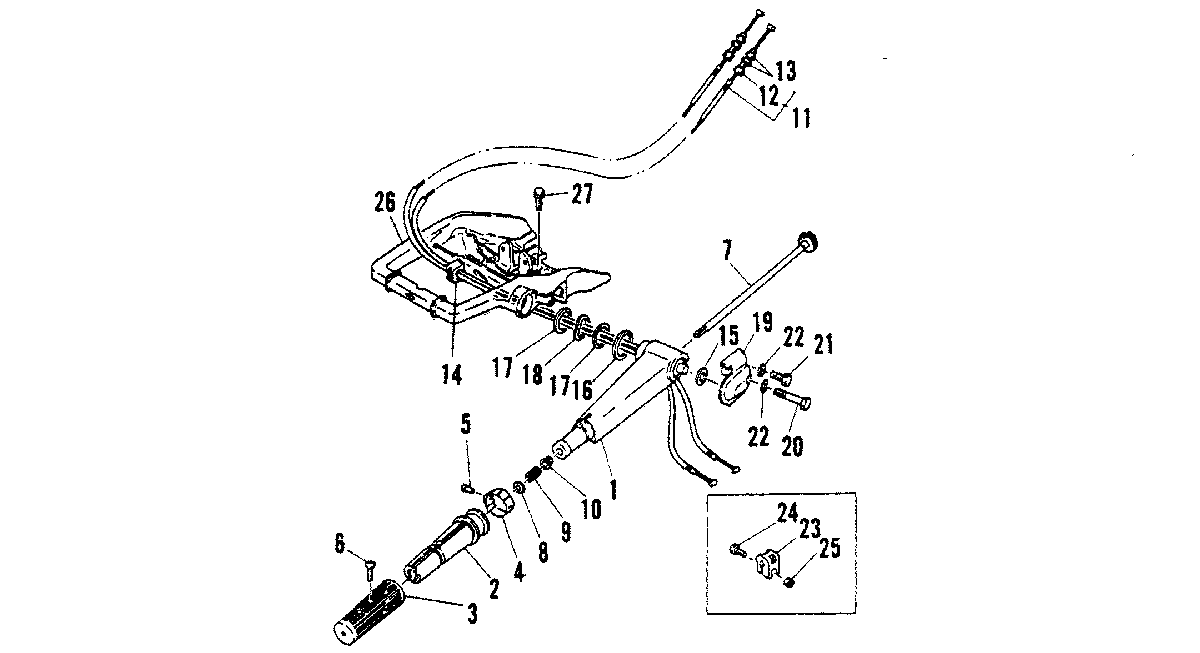

STEERING HANDLE для Mariner - 20C (THRU PROP. EXHAUST) 6A9-550101 THRU 550693

  • №
    Артикул
    Название
  • 0-1
    95673M HANDLE ASS'Y
    HANDLE ASS'Y
  • 1
    96664M HANDLE, STEERING
    HANDLE, STEERING
  • 2
    81585M GRIP, STEERING HANDLE
    GRIP, STEERING HANDLE
  • 3
    8M0080456 RUBBER, HANDLE
    SERIAL 00008216-09999999
    RUBBER, HANDLE
    SERIAL 00008216-09999999
  • 3
    8M0080456 RUBBER, HANDLE
    SERIAL 00000000-00008215
    RUBBER, HANDLE
    SERIAL 00000000-00008215
  • 4
    41891M INDICATOR, THROTTLE
    SERIAL 00002351-09999999
    INDICATOR, THROTTLE
    SERIAL 00002351-09999999
  • 4
    81586M INDICATOR, THROTTLE
    SERIAL 00000000-00002350
    INDICATOR, THROTTLE
    SERIAL 00000000-00002350
  • 5
    17-81907M RIVET
    RIVET
  • 6
    10-811916M SCCREW
    SCCREW
  • 7
    84856M LEVER, THROTTLE
    LEVER, THROTTLE
  • 8
    12-82220M WASHER
    WASHER
  • 9
    24-82095M SPRING
    SPRING
  • 10
    23-81945M BUSHING
    BUSHING
  • 11
    41892M THROTTLE WIRE
    SERIAL 00002351-09999999
    THROTTLE WIRE
    SERIAL 00002351-09999999
  • 11
    41892M THROTTLE WIRE
    SERIAL 00000000-00002350
    THROTTLE WIRE
    SERIAL 00000000-00002350
  • 12
    10-815139M BOLT, ADJUSTING
    BOLT, ADJUSTING
  • 13
    11-81765M NUT
    NUT
  • 14
    25-82064M GROMMET
    GROMMET
  • 15
    23-82119M SPACER
    SPACER
  • 16
    23-81861M WASHER
    WASHER
  • 17
    12-84850M WASHER
    WASHER
  • 18
    13-84851M WASHER, WAVE
    SERIAL 00008216-09999999
    WASHER, WAVE
    SERIAL 00008216-09999999
  • 18
    13-84851M WASHER, WAVE
    SERIAL 00000000-00008215
    WASHER, WAVE
    SERIAL 00000000-00008215
  • 19
    84852M RETAINER
    RETAINER
  • 20
    10-84931M BOLT
    BOLT
  • 21
    10-84058M BOLT
    BOLT
  • 22
    12-82214M WASHER
    WASHER
  • 23
    82895M PIECE, FRICTION
    PIECE, FRICTION
  • 24
    10-84058M BOLT
    BOLT
  • 25
    11-83056M NUT, SELF-LOCKING
    NUT, SELF-LOCKING
  • 26
    19113M BRACKET, STEERING
    BRACKET, STEERING
  • 27
    10-84830M BOLT
    BOLT
