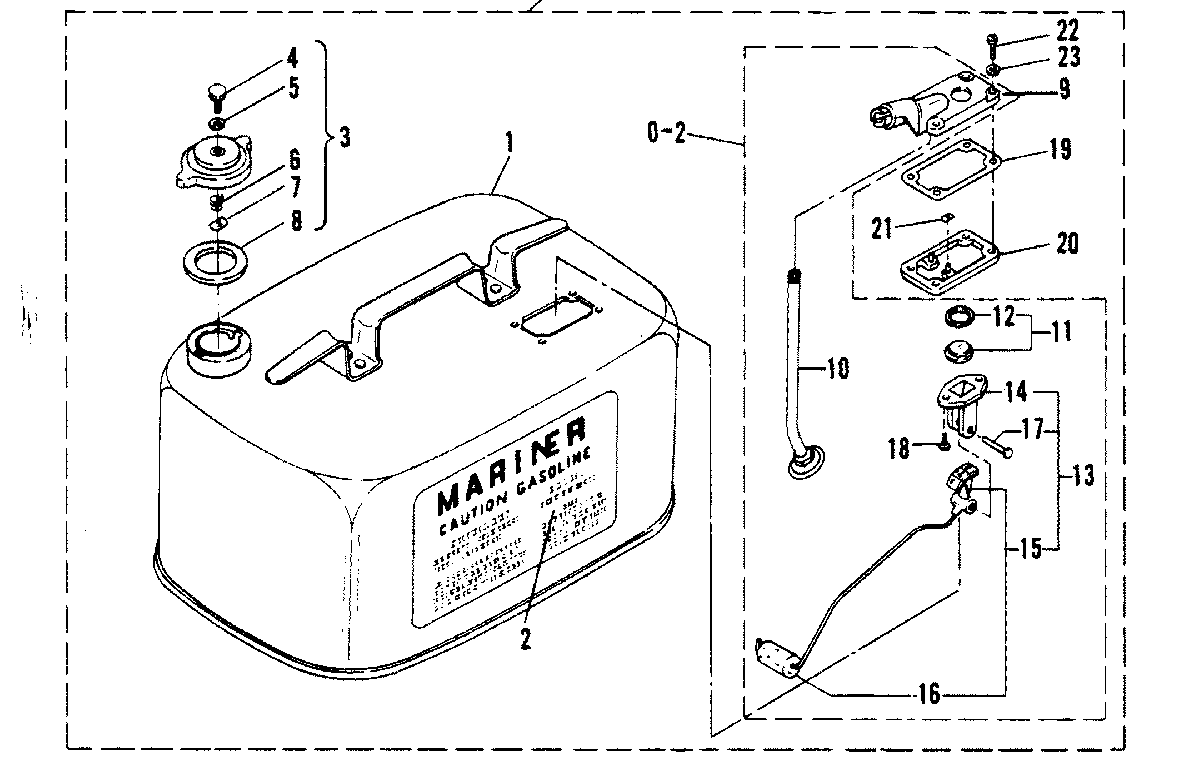

FUEL TANK (NOT ORIGINAL EQUIPMENT TANK SEE NOTE) для Mariner - 20C (THRU PROP. EXHAUST) 6A9-550101 THRU 550693
-
№АртикулНазвание
-
0-11259-812410A1 FUEL TANK, COMPLETEFUEL TANK, COMPLETE
-
11259-812410A1 FUEL TANKFUEL TANK
-
237-13921 DECAL, FUEL TANKDECAL, FUEL TANK
-
336-18962M FILLER CAP ASSEMBLYFILLER CAP ASSEMBLY
-
410-25575 SCREW, VENT-FILLER CAPSCREW, VENT-FILLER CAP
-
512-49221 WASHER, VENT SCREWWASHER, VENT SCREW
-
61399-2227 SPRING, TENSION-VENT SCREWSPRING, TENSION-VENT SCREW
-
711-28587 NUT, SPEED-SPRING RETAINERNUT, SPEED-SPRING RETAINER
-
827-41065 GASKET, FILLER CAP TO FUEL TANKGASKET, FILLER CAP TO FUEL TANK
-
0-264841A1 CONNECTOR/GAUGE ASS'Y, COMPLETECONNECTOR/GAUGE ASS'Y, COMPLETE
-
917792A1 COVER, FUEL TANKCOVER, FUEL TANK
-
1032-75239 TUBETUBE
-
1198542A1 LENS ASSEMBLY, FUEL GAUGELENS ASSEMBLY, FUEL GAUGE
-
1298542A1 GASKET, FUEL GAUGE LENSGASKET, FUEL GAUGE LENS
-
1328897A2 FUEL GAUGE ASSEMBLY, COMPLETEFUEL GAUGE ASSEMBLY, COMPLETE
-
1420430 RETAINER, FUEL GAUGERETAINER, FUEL GAUGE
-
1528897A1 INDICATOR AND FLOAT ASSEMBLYINDICATOR AND FLOAT ASSEMBLY
-
1699274 FLOAT, FUEL GAUGEFLOAT, FUEL GAUGE
-
1717-20426 RIVET, INDICATOR TO RETAINERRIVET, INDICATOR TO RETAINER
-
1810-62568 SCREW, RETAINER TO FUEL TANK COVERSCREW, RETAINER TO FUEL TANK COVER
-
1927-28862 GASKET, COVER ASSEMBLY TO FRAMEGASKET, COVER ASSEMBLY TO FRAME
-
2028860 FRAME, RETAINING-FUEL TANK COVERFRAME, RETAINING-FUEL TANK COVER
-
2111-28903 ,FASTENER, RETAINING FRAME TO FUEL TANK,FASTENER, RETAINING FRAME TO FUEL TANK
-
2210-20411 SCREW, FUEL TANK COVER TO FUEL TANKSCREW, FUEL TANK COVER TO FUEL TANK
-
2312-29070 WASHER, FUEL TANK COVER FASTENING SCREWWASHER, FUEL TANK COVER FASTENING SCREW
